Peterson 2710D Horizontal Grinder

Overview

The Peterson 2710D horizontal grinder is designed for operations requiring high production and frequent moves between jobs.

The 2710D is powerful, with your choice of engines: Caterpillar Tier IV C15 580 hp (433 kW), C18 755 hp (563 kW), or optional Tier II C18 765 hp (570 kW) for export. Heavy duty and mobile, the 2710D has outstanding production throughput for a machine of this size.

The 2710D’s large feed opening can reduce a wide range of materials. Measuring 60¾ x 32 inches (153 x 81 cm), when boosted by Peterson’s high lift feed roll, the feed opening’s maximum lift of 44 inches (112 cm), is amongst the largest in its class.

Applications

  • Wood Waste Recycling

    Wood waste is the second largest category of construction and demolition (C&D) debris, and accounts for 10% of material added to landfills annually.
    Learn More

  • Compost

    Compost is decomposed organic matter derived from either a single source material or blended for specific application performance. Materials can include garden debris, kitchen scraps, manure or yard and lawn waste.
    Learn More

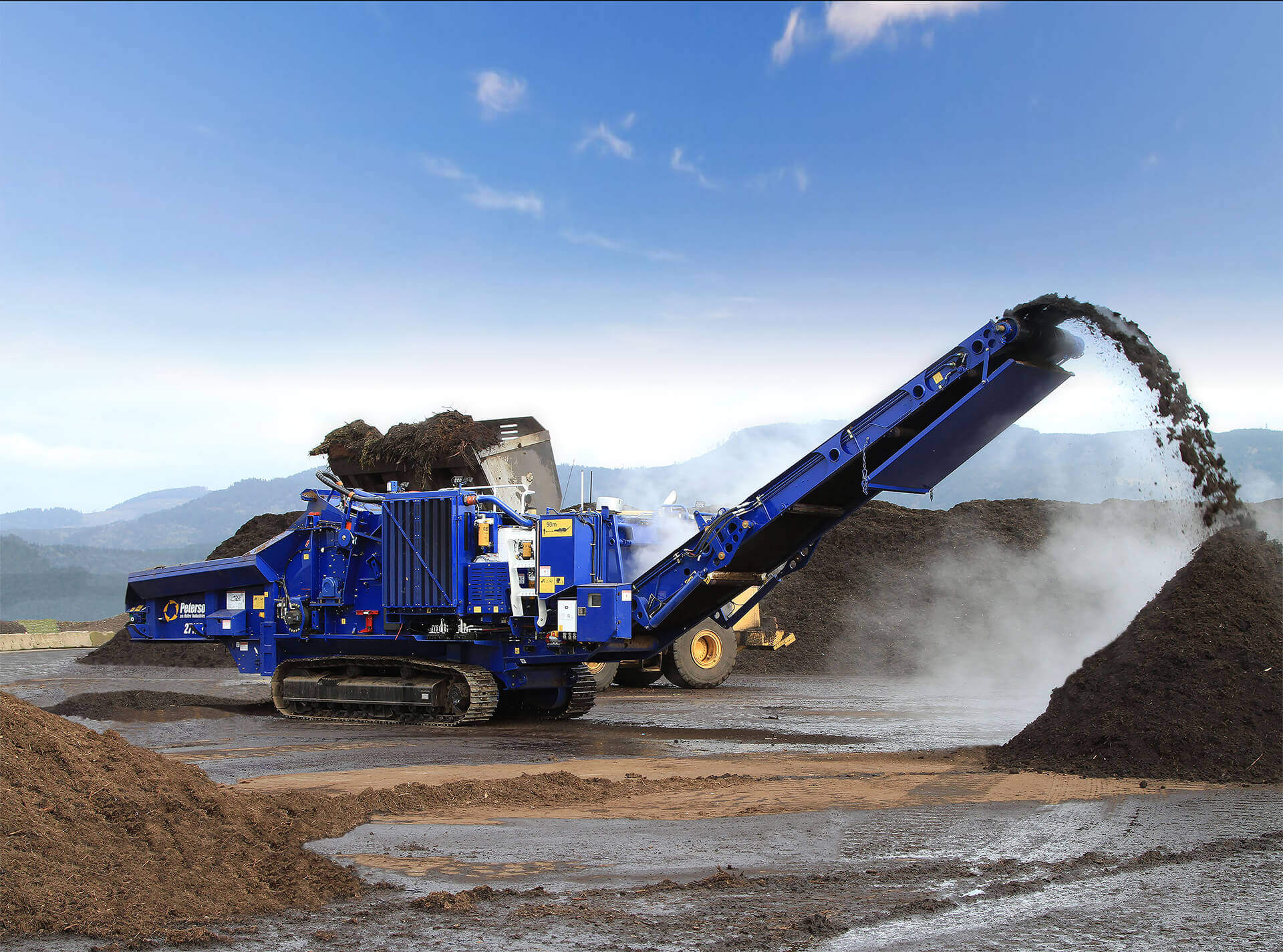

  • Mulch

    Organic mulch is a product that can decompose, providing nutrients to the soil over time. It can be made from a variety of materials, typically organic, but not exclusively.
    Learn More

  • Organic Recycling

    Green waste recycling is fresh or biodegradable waste material including grass, leaves, plants and tree trimmings that can be diverted from landfills for recycling. This method is best used to produce compost for use on gardens, lawns, erosion control projects and agricultural crops.
    Learn More

  • Land Clearing

    Land clearing generally consists of trees, limbs and roots cleared from forested or partially forested land that will be used for a new purpose including farming, commercial development or right-of-ways.

    Learn More

  • Orchard Clearout

    Commercial orchards are cleared on a rotating cycle to remove lower producing or unhealthy deciduous fruit, citrus and nut trees or to replace them with a more valuable crop. New, higher-producing trees are replanted so the cycle can start again.
    Learn More

  • Salvage Timber

    Salvage logging is the removal of dead or damaged trees from forestlands that have been damaged by wildfire, harsh winds, flood, disease, infestation of insects and other natural causes.
    Learn More

  • Playground Chips

    Playground chips/mulch typically have a fibrous consistency, free of twigs, leaves and hazardous materials, no larger than two inches long and have the ability to drain water.
    Learn More

  • Natural Disaster Cleanup

    Natural disasters such as hurricanes, tornadoes, earthquakes, fires or floods create debris that must be cleared to restore affected areas. This type of debris can be green waste (such as tree limbs), furniture, drywall or entire structures that have to be demolished and recycled.
    Learn More

  • Biomass

    Biomass is an energy source derived from renewable and sustainable organic materials to create electricity or other forms of power. Horizontal grinders and drum chippers are highly productive machines for creating biomass.
    Learn More

  • Asphalt Shingle Recycling

    Asphalt shingle grinding is the process of making recycled asphalt shingles (RAS). RAS is produced by grinding asphalt roofing shingles to a small spec, generally under 3/8” to salvage the valuable asphalt and sand.
    Learn More

Downloads

Key Specifications

DimensionsSpecifications
Operating Length1612 cm
Operating Width282 cm
Operating Height480 cm
Travel Width250 cm
Travel Length1241 cm
Travel Height338 cm
Frame Length1072 cm
Front Angle of Approach13º
Rear Angle of Approach24º
Ground Clearance48 cm



DimensionsSpecifications
Operating Length52' 11"
Operating Width9' 3"
Operating Height15' 9"
Travel Width8' 2"
Travel Length40' 8"
Travel Height11' 1"
Frame Length35' 2"
Front Angle of Approach13º
Rear Angle of Approach24º
Ground Clearance19"



WeightsSpecificationsSpecifications
Machine Weight68,100 lbs 30,900 kg



WeightsSpecifications
Machine Weight68,100 lbs



PowertrainSpecifications
Engine

Cat C15 Tier IV, 5433 kW

Cat C18 Tier IV, 563 kW

Cat C15 Tier III, 433 kW (export only)

Cat C18 Tier II, 570 kW (export only)

ClutchPT Tech HPT0
Fuel Tank Capacity1079 L
Main Hydraulic Tank Capacity340 L



PowertrainSpecifications
Engine

Cat C15 Tier IV, 580 hp

Cat C18 Tier IV, 755 hp

Cat C15 Tier III, 580 hp (export only)

Cat C18 Tier II, 765 hp (export only)

ClutchPT Tech HPT0
Fuel Tank Capacity285 US gal
Main Hydraulic Tank Capacity90 US gal



System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
TracksSpecifications
Track Type & Widthtriple grouser, 18" triple grouser, 50 cm wide
Travel Speed1.0 / 2.0 mph 1.6 / 3.2 kph
Ground Pressure13.2 lbs/ in² 1 kPa
Track Length13' 7" 414 cm
Front to Track Length13' 7" 414 cm



TracksSpecifications
Track Type & Widthtriple grouser, 18"
Travel Speed1.0 / 2.0 mph
Ground Pressure13.2 lbs/ in²
Track Length13' 7"
Front to Track Length13' 7"



Model Specification
Feed Opening (w x h) 153 x 81 cm
Hopper Width 152 cm
Feed Conveyor Width 147 cm
Feed Chain 4 sections, full hopper width
Compression Roll Diameter 71 cm
Land Clearing Mode 153 x 112 cm



Model Specification
Feed Opening (w x h) 60" x 32"
Hopper Width 60"
Feed Conveyor Width 4'10"
Feed Chain 4 sections, full hopper width
Compression Roll Diameter 28"
Land Clearing Mode 60" x 44"



RotorSpecifications
Rotor Width152 cm
Rotor Diameter81 cm
Rotor Shaft Size130 mm @ bearing, 146 mm @ center
Bit Size70 x 127 mm
Number of Bits20 drum rotor, 18 pinned rotor, 30 ASG rotor
Rotor Speed3048 mpm @ 2100 rpm
RotorSpecifications
Number of Grate Sections4
Total Grate Area1.95 m²
Grate Coverage180º
Grate Thickness25 mm



RotorSpecifications
Rotor Width60"
Rotor Diameter32"
Rotor Shaft Size5" @ bearing, 5.75" @ center
Bit Size2.75" x 5"
Number of Bits20 drum rotor, 18 pinned rotor, 30 ASG rotor
Rotor Speed10,000 fpm @2100 rpm
RotorSpecifications
Number of Grate Sections4
Total Grate Area21 ft²
Grate Coverage180º
Grate Thickness1"



Discharge Specifications
Discharge Conveyor Width122 cm
Discharge Conveyor Height 451 cm
Conveyor Speed 152, 183, or 213 mpm



DischargeSpecifications
Discharge Conveyor Width48"
Discharge Conveyor Height14' 9"
Conveyor Speed500, 600, or 700 fpm



Production (C15 Engine) Volume Weight
Greenwaste 201 m3  70 tonnes
Scrap Board 247 m3  50 tonnes
Production (C18 Engine) Volume Weight
Greenwaste 229 m3 79 tonnes
Scrap Board 281 m3 57 tonnes

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Production (C15 Engine) Volume Weight
Greenwaste 264 yd³  77 tons
Scrap Board 323 yd³  55 tons
Production (C18 Engine) Volume Weight
Greenwaste 300 yd³  87.5 tons
Scrap Board 368 yd³  62.6 tons

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Options2710D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



Options2710D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



UNITS:

All specifications subject to change without notice.

Features

  • A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process

    3-Stage Grinding Process

    The powerful up-turn 3-stage grinding process provides better fracturing of material and a more consistent product, giving you just the product your buyers want.

    A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process
  • A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

    Impact Release System Protects Your Investment

    The air bags on the patented Astec Impact Release System provide uniform grinding and protection from contaminated feedstock, a feature unique to Peterson grinders.

    A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

  • The Second Line of Defense: The Impact Cushion System

    Urethane cushions and shear pins help protect the mill from catastrophic damage in the event of a severe impact from contaminants in the feedstock.
  • An Astec Peterson tracked horizontal grinder being transported with a semi and a tow dolly.

    Tow Dolly

    Tow Dolly is available for this model
    An Astec Peterson tracked horizontal grinder being transported with a semi and a tow dolly.

Media Gallery

UNITS:
Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders
 2710D1710D4710D5710D6710D
Standard EngineCAT C15 Tier IV, 580 hpCAT C9.3B EU Stage V, 339 kWCAT C18 Tier IV, 563 kWCAT C27 Tier IV, 782 kWCAT C32 Tier IV, 839 kW
Scrap Board Production*247 m³141 m³325 m³452 m³499 m³
Feed Opening 137 x 69 cm153 x 81 cm152 x 97 cm152 x 102 cm 168 x 127 cm
Weight21,092 kg28,123 kg35,834 kg43,091 kg48,987 kg

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders
 2710D1710D4710D5710D6710D
Standard EngineCAT C15 Tier IV, 580 hpCAT C9.3B Tier IV, 455 hpCAT C18 Tier IV, 755 hpCAT C27 Tier IV, 1050 hpCAT C32 Tier IV, 1125 hp
Scrap Board Production*368 yd³185 yd³ 425 yd³591 yd³ 653 yd³
Feed Opening 60” x 32” 54” x 27”60” x 38”60” x 40” 66” x 50”
Weight68,100 lbs46,500 lbs 79,000 lbs95,000 lbs 108,500 lbs

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.
