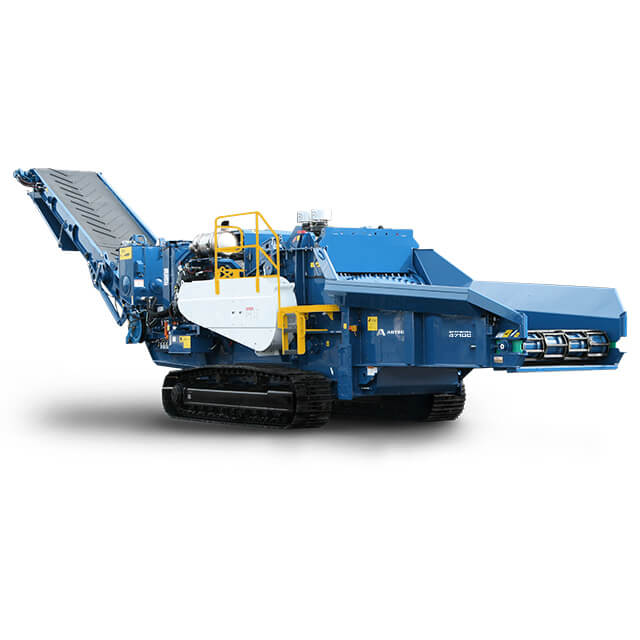

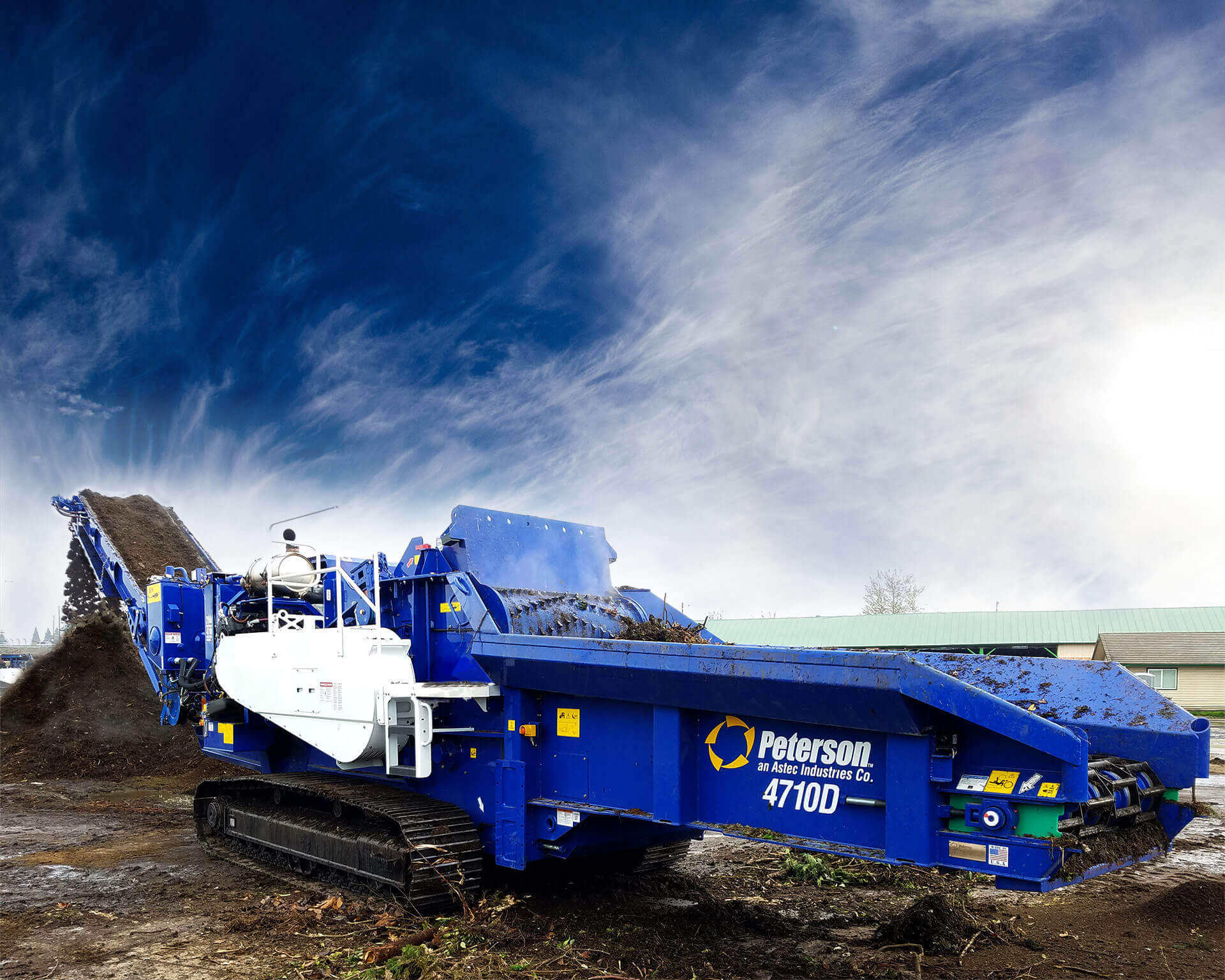

Peterson 4710D Horizontal Grinder

Overview

The 4710D Horizontal Grinder is a track mounted horizontal grinder designed for high-volume producers with very demanding end-product specifications.

Boasting 18 inches (46 cm) of ground clearance—this model is particularly suited for land clearing operations or other applications where mobility and frequent moving is desired. Track mounting also reduces material handling costs in conventional recycling yards as well.


The 4710D Horizontal Grinder is powered by a Tier IV Caterpillar C18 engine rated at 755 horsepower (563 kW). A Tier II (export only), 765 horsepower (570 kW) engine is also available. It features Peterson’s Adaptive Control System, which controls all components of the feed system to optimize output. This system senses variations in the engine load and adapts the operating parameters to produce the maximum amount of material at all times.

Astec Peterson 4710D Land Clearing

Applications

  • Astec Peterson 5710D Horizontal Grinder making compost from green waste in Hawaii with an loading excavator.

    Organic Recycling

    Peterson Horizontal Grinders are an ideal tool for quickly and effectively reducing green waste into mulch or compost products.
    Learn More

  • Mulch

    Astec machines can help you create, screen, stack, and deliver your final mulch product. We’ll help you add value to your mulch products and services from your feedstock all the way to delivery.
    Learn More

  • Wood Waste Recycling

    Peterson horizontal grinders are ideal for wood waste recycling applications. Because of the limited options to reuse building materials or wood recycled from demolition efforts, reduced wood waste can be recycled to make biomass, bedding material, mulch, or compost.
    Learn More

  • Orchard Clearout

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear commercial orchards for plantation rotation.
    Learn More

  • Municipal Solid Waste (MSW) Recycling

    Peterson horizontal grinders with the R+ package are an ideal tool for MSW reduction. R+ equipped Peterson horizontal grinders turn the rotor at a slower speed and have heavier duty internal components to handle the tramp metal often found in this application.
    Learn More

  • Construction & Demolition Recycling

    Construction and demolition recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, gypsum, plastic, metal, wire, roofing shingles, asphalt, concrete and more. By separating and recycling different materials it reduces landfill waste and associated costs, while also producing value-added products.
    Learn More

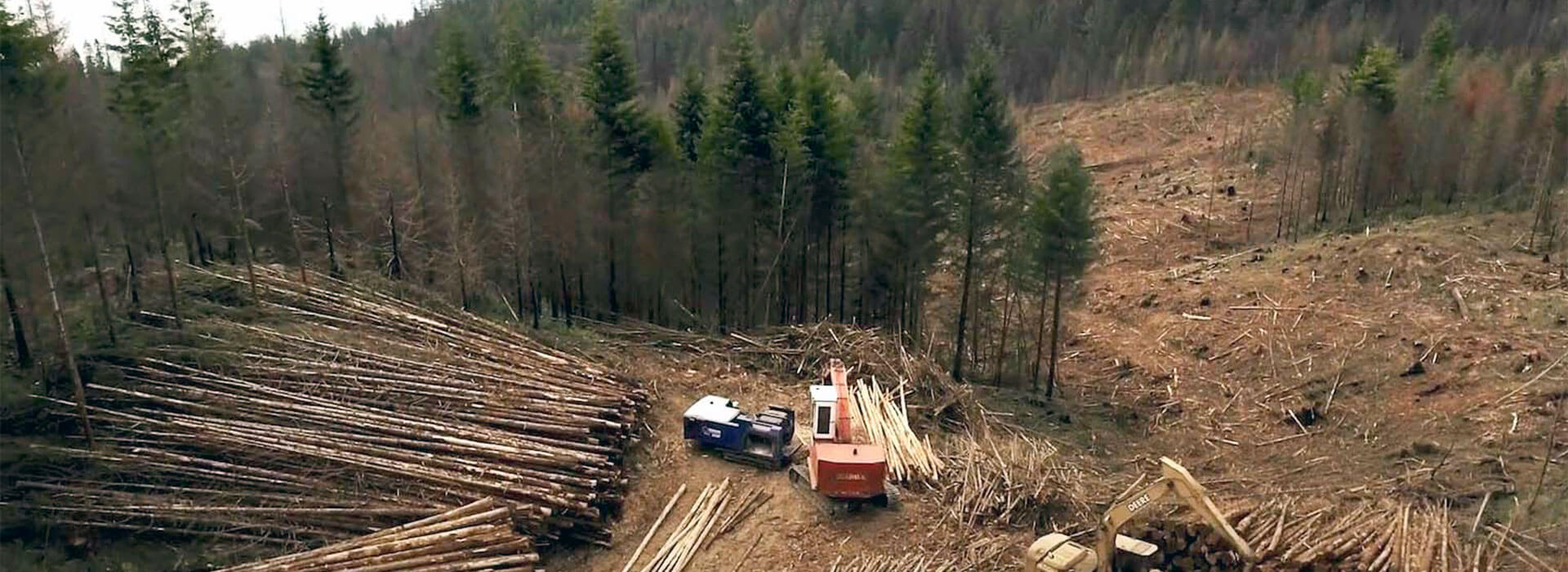

  • Salvage Timber

    Peterson horizontal grinders and drum chippers are an ideal tool for processing damaged wood from private timberlands, national forests, pulpwood plantations, and hazardous trees near roadways and other infrastructure.
    Learn More

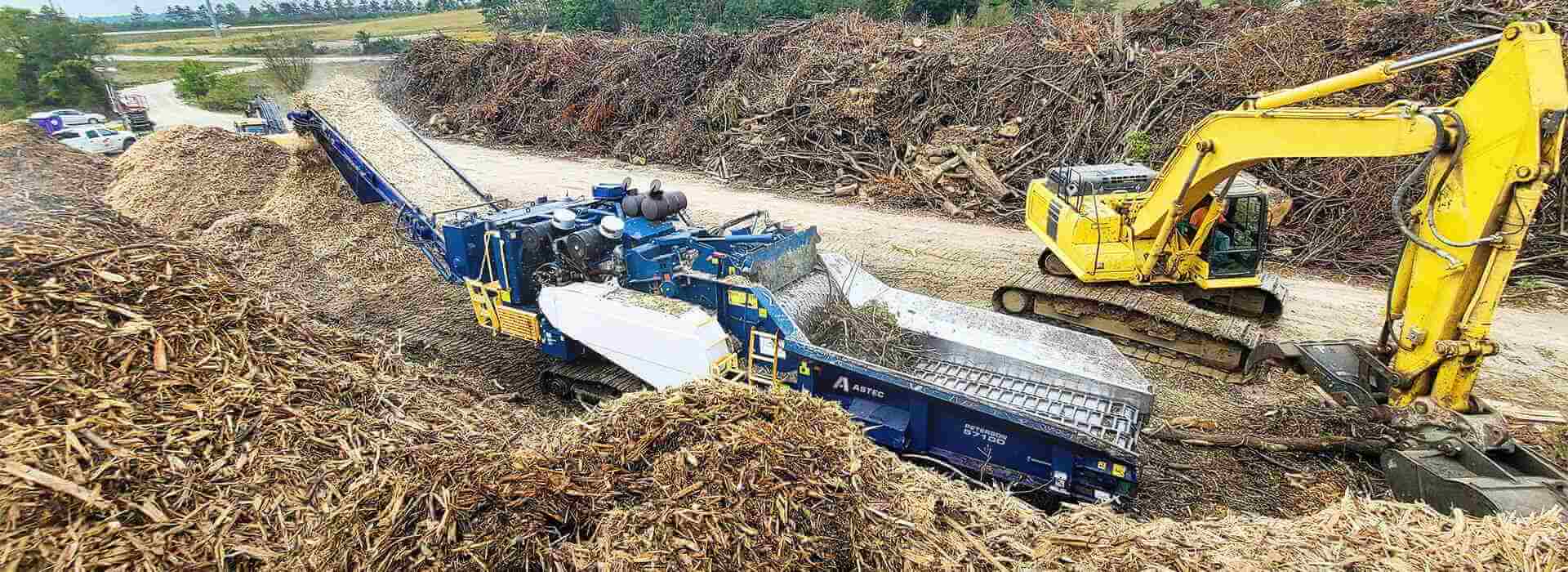

  • Natural Disaster Cleanup

    Peterson horizontal grinders are ideal for storm debris cleanup. Our horizontal grinder design allows for easy feeding of odd-shaped material, without the dangers, found in typical tub grinder designs.
    Learn More

  • Land Clearing

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear right-of-ways for pipelines, power lines, or other commercial developments.

    Learn More
  • Peterson 4310B Drum Chipper chipping whole trees making microchips and being loaded by a grapple excavator

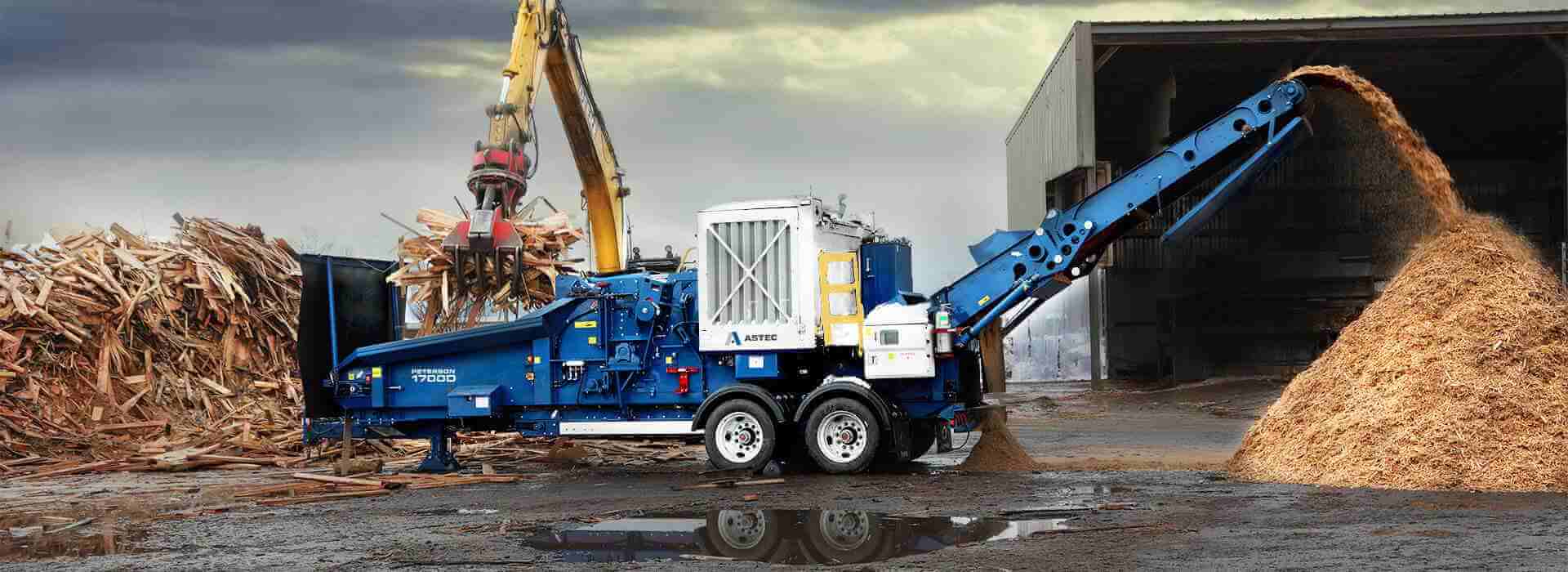

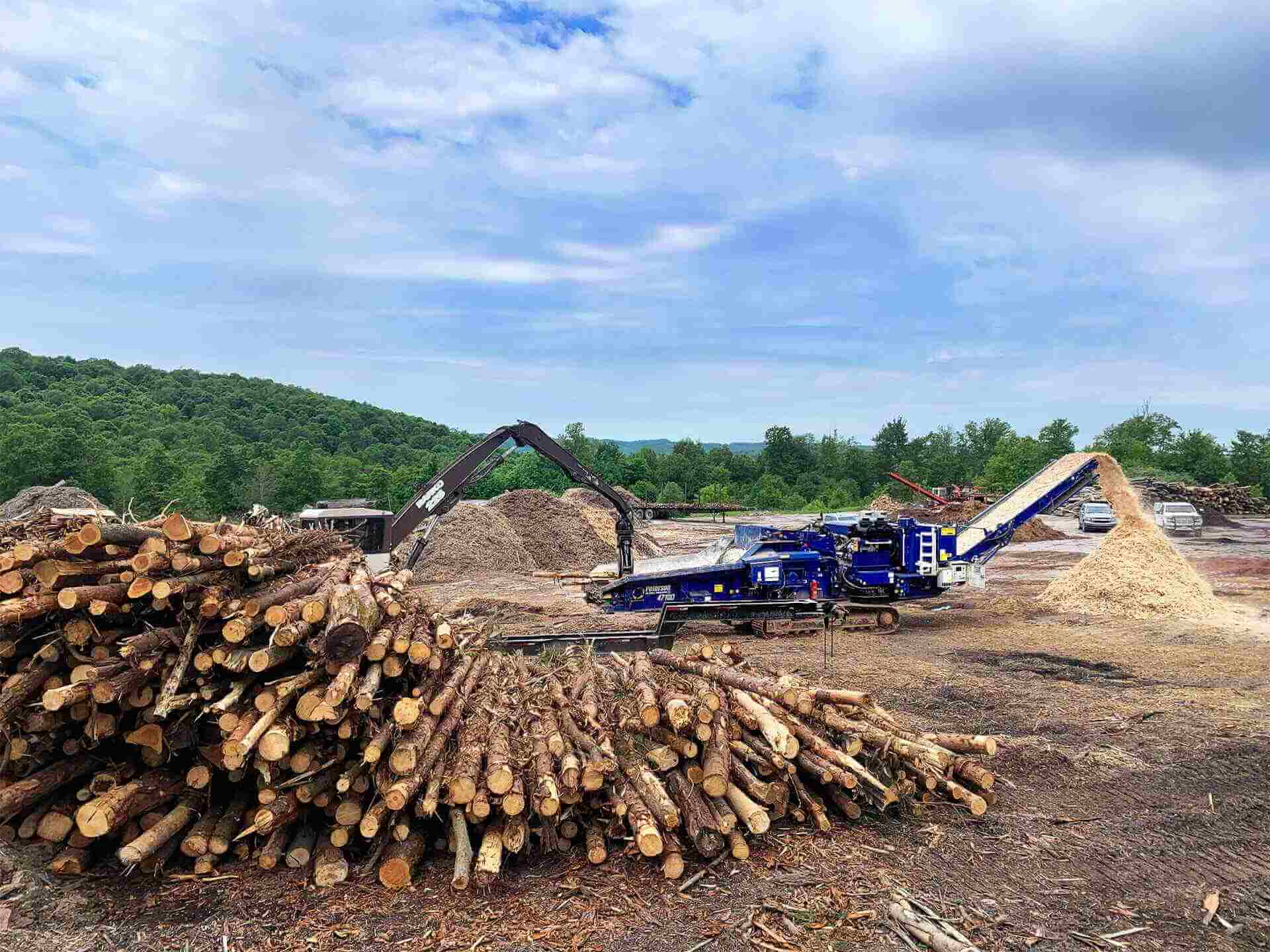

    Biomass

    Biomass is an energy source derived from renewable and sustainable organic materials to create electricity or other forms of power. Horizontal grinders and drum chippers are highly productive machines for creating biomass.
    Learn More

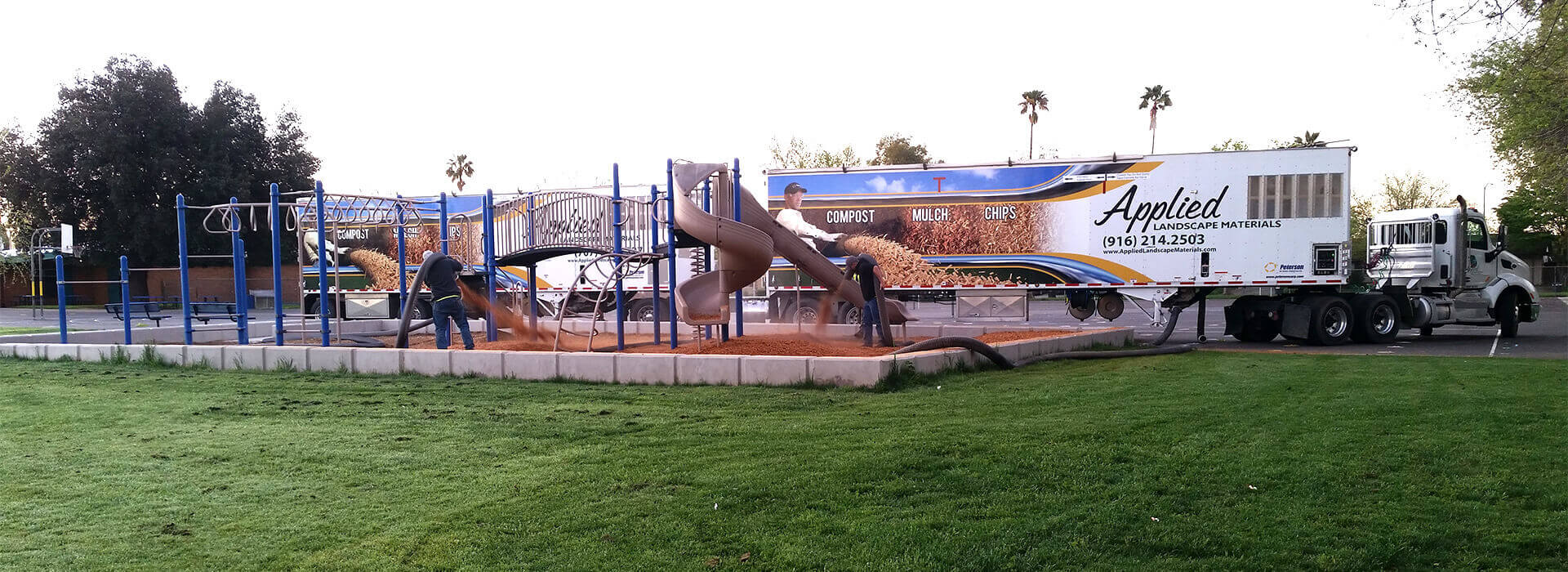

  • Playground Chips

    Playground material and engineered wood fiber is can be created with Peterson grinders or chippers and pneumatically delivered with Peterson blower trucks.
    Learn More

  • Compost

    Compost is decomposed organic matter derived from either a single source material or blended for specific application performance. Materials can include garden debris, kitchen scraps, manure or yard and lawn waste.
    Learn More

Downloads

Key Specifications

SpecificationsSpecifications
56' 9" 1730 cm
11' 336 cm
16' 8" 508 cm
9' 10" 299 cm
44' 11"1369 cm
11' 10" 361 cm
37' 2"  1132 cm
11°11°
22°22°
18" 46 cm



DimensionsSpecifications
Operating Length56' 9"
Operating Width11'
Operating Height16' 8"
Travel Width9' 10"
Travel Length44' 11"
Travel Height11' 10"
Frame Length37' 2"
Front Angle of Approach11°
Rear Angle of Approach22°
Ground Clearance18"



WeightsSpecifications
Machine Weight32,886 kg



WeightsSpecifications
Machine Weight72,500 lbs



Powertrain Specification
Engine

Cat C18 Tier IV, 563 kW

Caterpillar C18 Tier II, 570 kW (export only)

Clutch PT Tech HPTO 15
Fuel Tank Capacity 1136 L
Main Hydraulic Tank Capacity 341 L



PowertrainSpecification
Engine

Caterpillar C18 Tier IV, 755 hp

Caterpillar C18 Tier II, 765 hp (export only)
ClutchPT Tech HPTO 15
Fuel Tank Capacity300 gal
Main Hydraulic Tank Capacity90 gal



System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
TracksSpecifications
Track Type & Widthtriple grouser,60 cm
Travel Speed1.9/3.7 kph
Ground Pressure78.6 kPa
Track Length457 cm
Front to Track Length452 cm





TracksSpecifications
Track Type & Widthtriple grouser, 23.5"
Travel Speed1.2/2.3 mph
Ground Pressure11.4 lbs/in²
Track Length15'
Front to Track Length14' 10"



ModelSpecification
Feed Opening (w x h)152 x 97 cm
Hopper Width152 cm
Feed Conveyor Width152 cm
Feed Chain4 sections, full hopper width
Compression Roll Diameter85 cm
Land Clearing Mode152 x 135 cm



ModelSpecification
Feed Opening (w x h)60" x 38"
Hopper Width60"
Feed Conveyor Width5'
Feed Chain4 sections, full hopper width
Compression Roll Diameter33.5"
Land Clearing Mode60" x 53"



Rotor Specifications
Rotor Width 161 cm
Rotor Diameter 96.5 cm
Rotor Shaft Size 150 mm @ bearing, 190 mm @ center
Bit Size 70 x 127 mm
Number of Bits 22 drum rotor, 20 pinned rotor
Rotor Speed 320 mm @ 2100 rpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 2.6 m²
Grate Coverage 187º
Grate Thickness 25 mm, 32 mm



Rotor Specifications
 4700D
Rotor Width 64"
Rotor Diameter 38"
Rotor Shaft Size 5.9" @ bearing, 7.5" @ center
Bit Size 2.75" x 5"
Number of Bits 22 drum rotor, 20 pinned rotor
Rotor Speed 1050 fpm @ 2100 rpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 28 ft²
Grate Coverage 187º
Grate Thickness 1", 1.25"



Discharge Specifications
Discharge Conveyor Width137 cm
Discharge Conveyor Height 508 cm
Conveyor Speed 152, 183, 213 mpm



DischargeSpecifications
Discharge Conveyor Width54"
Discharge Conveyor Height16' 8"
Conveyor Speed500, 600, 700 ft/min



Production VolumeWeight
Greenwaste275 m³86 tonnes
Scrap Board 325 m3 59 tonnes

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

ProductionVolumeWeight
Greenwaste360 yd³ 95 tons
Scrap Board425 yd³ 65 tons

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Options4710D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



Options4710D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



UNITS:

All specifications subject to change without notice.

Features

  • A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process

    3-Stage Grinding Process

    The powerful up-turn 3-stage grinding process provides better fracturing of material and a more consistent product, giving you just the product your buyers want.

    A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process
  • A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

    Impact Release System Protects Your Investment

    The air bags on the patented Astec Impact Release System provide uniform grinding and protection from contaminated feedstock, a feature unique to Peterson grinders.

    A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

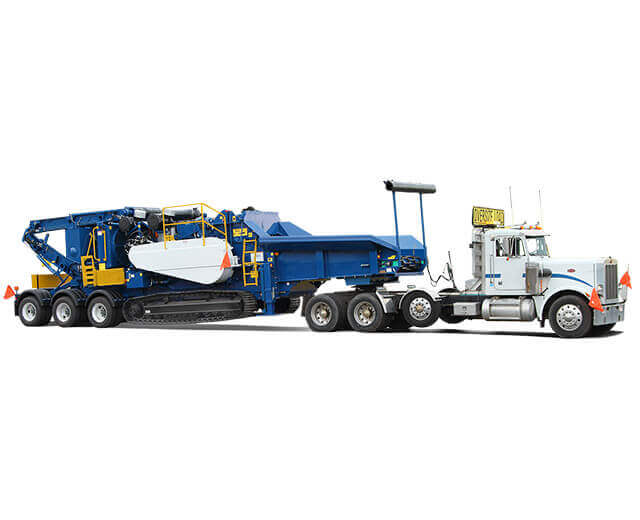

  • An Astec Peterson tracked horizontal grinder being transported with a semi and a tow dolly.

    Tow Dolly

    Tow Dolly is available for this model
    An Astec Peterson tracked horizontal grinder being transported with a semi and a tow dolly.

Media Gallery

UNITS:
Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders

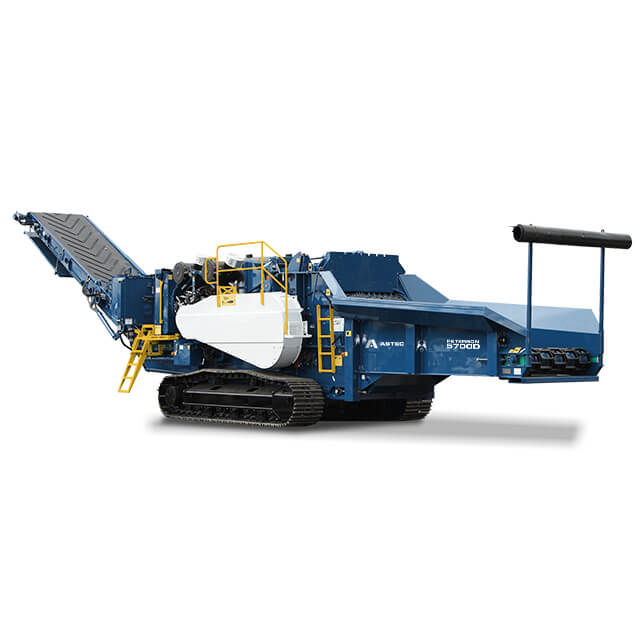

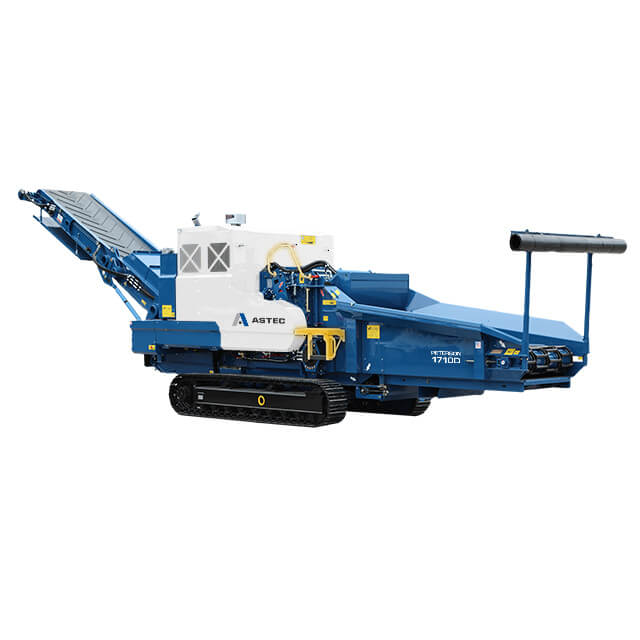

 4710D1710D2710D5710D6710D
Standard EngineCAT C18 Tier IV, 563 kWCAT C9.3B EU Stage V, 339 kWCAT C15 Tier IV, 580 hpCAT C27 Tier IV, 782 kWCAT C32 Tier IV, 839 kW
Scrap Board Production*325 m³141 m³247 m³452 m³499 m³
Feed Opening 152 x 97 cm137 x 69 cm153 x 81 cm152 x 102 cm 168 x 127 cm
Weight35,834 kg21,092 kg28,123 kg43,091 kg48,987 kg

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders
 4710D1710D2710D5710D6710D
Standard EngineCAT C18 Tier IV, 755 hpCAT C9.3B Tier IV, 455 hpCAT C15 Tier IV, 580 hpCAT C27 Tier IV, 1050 hpCAT C32 Tier IV, 1125 hp
Scrap Board Production*425 yd³185 yd³ 368 yd³ 591 yd³ 653 yd³
Feed Opening 60” x 38”54” x 27”60” x 32” 60” x 40” 66” x 50”
Weight79,000 lbs46,500 lbs 68,100 lbs95,000 lbs 108,500 lbs

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Loading animation

Request More Info

Are you looking for information on Parts?
Your information is safe. Check our privacy notice for more details.

Related Products

  • Astec Peterson 5710D Horizontal Grinder making compost from green waste in Hawaii with an loading excavator.

    Peterson 5710D Horizontal Grinder

  • Peterson 4700D Horizontal Grinder

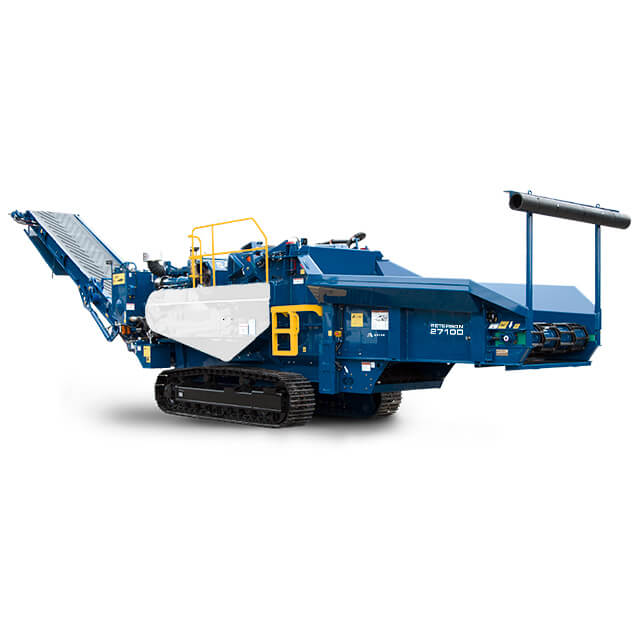

  • Peterson 2710D Horizontal Grinder
