Peterson 6700D Horizontal Grinder

Overview

The 6700D Horizontal Grinder is Peterson’s largest horizontal grinder, and is designed for operations  that need the most durable, highest output machine.

Powered by a 1125hp (839 kW) Tier IV, Caterpillar C32 engine or an export only Tier II Caterpillar C32 engine, the 6700D is designed for the toughest jobs.

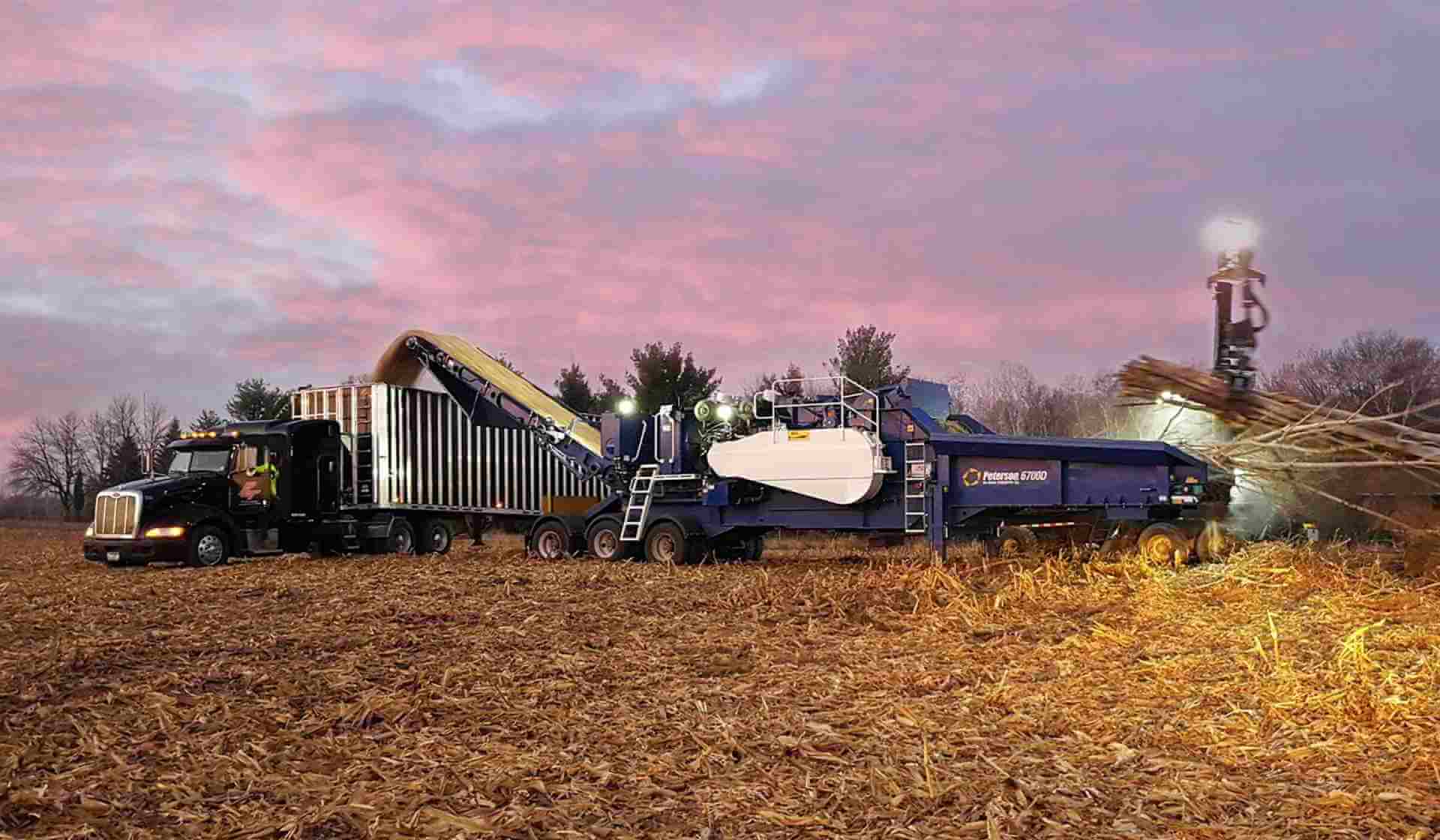

With a feed opening of 66 x 50 inches (168 x 127 cm), the 6700D Horizontal Grinder can even process large stumps that used to be reserved for tub grinders. The grinder is particularly suited for land clearing operations or other applications where mobility is desired. System pressure transducers and remote monitoring capability simplify set up and provide complete engine and system parameters.

Applications

  • Orchard Clearout

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear commercial orchards for plantation rotation.
    Learn More

  • Compost

    Compost is organic matter that has been decomposed and may be made from single source material or blended for specific application performance. Materials used include: garden debris, kitchen scraps, manure, or yard and lawn waste.
    Learn More

  • Municipal Solid Waste (MSW) Recycling

    Peterson horizontal grinders with the R+ package are an ideal tool for MSW reduction. R+ equipped Peterson horizontal grinders turn the rotor at a slower speed and have heavier duty internal components to handle the tramp metal often found in this application.
    Learn More
  • Astec Peterson 5710D Horizontal Grinder making compost from green waste in Hawaii with an loading excavator.

    Organic Recycling

    Peterson Horizontal Grinders are an ideal tool for quickly and effectively reducing green waste into mulch or compost products.
    Learn More

  • Railroad Tie Recycling

    The creosote treated railroad ties are a valuable energy source, once they have been broken down into a manageable and consistent size.
    Learn More

  • Construction and Demolition (C&D) Recycling

    Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
    Learn More

  • Mulch

    Astec machines can help you create, screen, stack, and deliver your final mulch product. We’ll help you add value to your mulch products and services from your feedstock all the way to delivery.
    Learn More

  • Natural Disaster Cleanup

    Peterson horizontal grinders are ideal for storm debris cleanup. Our horizontal grinder design allows for easy feeding of odd-shaped material, without the dangers, found in typical tub grinder designs.
    Learn More

  • Salvage Timber

    Peterson horizontal grinders and drum chippers are an ideal tool for processing damaged wood from private timberlands, national forests, pulpwood plantations, and hazardous trees near roadways and other infrastructure.
    Learn More
  • Peterson 4310B Drum Chipper chipping whole trees making microchips and being loaded by a grapple excavator

    Biomass

    Biomass is an energy source derived from renewable and sustainable organic materials to create electricity or other forms of power. Horizontal grinders and drum chippers are highly productive machines for creating biomass
    Learn More

  • Land Clearing

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear right-of-ways for pipelines, power lines, or other commercial developments.

    Learn More

Downloads

Key Specifications

Dimensions Specifications
Operating Length 19 m
Operating Width 361 cm
Operating Height 534 cm
Travel Width 338 cm
Travel Length 1562 cm
Travel Height 395 cm
Frame Length 1523 cm
Ground Clearance 25 cm
Axle Spacing 152 cm
Front to 5th Wheel 157 cm
5th Wheel to Center Axle 1143 cm
5th Wheel Clearance Radius 183 cm
5th Wheel Height 127 cm



DimensionsSpecifications
Operating Length62' 11"
Operating Width11' 10"
Operating Height17' 6"
Travel Width11' 1"
Travel Length51'
Travel Height13'
Frame Length49' 11"
Ground Clearance10"
Axle Spacing60"
Front to 5th Wheel5' 2"
5th Wheel to Center Axle37' 6"
5th Wheel Clearance Radius6'
5th Wheel Height4' 2"



Weights Specifications
Machine Weight44,452 kg
5th Wheel Weight 18,678 kg
Tridem Axle Weight 25,773 kg



WeightsSpecifications
Machine Weight98,000 lbs
5th Wheel Weight41,180 lbs
Tridem Axle Weight56,820 lbs



Powertrain
Engine

Caterpillar C32 Tier IV, 839 kW

Caterpillar C32 Tier II, 839 kW export only

ClutchPT Tech HPT015FX
Fuel Tank Capacity1567 L
Main Hydraulic Tank Capacity360 L
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
Powertrain
Engine

Caterpillar C32 Tier IV, 1125 hp

Caterpillar C32 Tier II, 1125 hp export only

ClutchPT Tech HPT015FX
Fuel Tank Capacity414 gal
Main Hydraulic Tank Capacity95 gal
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
Feed SystemSpecification
Feed Opening (w x h)168 x 127 cm
Hopper Width168 cm
Feed Conveyor Width168 cm
Feed Chain5 sections, full hopper width
Compression Roll Diameter107 cm
Land Clearing Mode168 x 165 cm



Feed SystemSpecification
Feed Opening (w x h)66" x 50"
Hopper Width66"
Feed Conveyor Width66"
Feed Chain5 sections, full hopper width
Compression Roll Diameter42"
Land Clearing Mode66" x 65"



Rotor Specifications
Rotor Width 176 cm
Rotor Diameter 118 cm
Rotor Shaft Size 17 cm @ bearing, 19 cm @ center
Bit Size 76 mm x 165 mm
Number of Bits 22 drum rotor, 20 pinned rotor
Rotor Speed 1951 to 3048 mpm @ 2100 rpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 3.4 m²
Grate Coverage 186º
Grate Thickness 38 mm



Rotor Specifications
Rotor Width69"
Rotor Diameter 47"
Rotor Shaft Size 6 5⁄8" @ bearing, 7½" @ center
Bit Size 3 x 6.5"
Number of Bits 22 drum rotor, 20 pinned rotor
Rotor Speed 6400 to 10000 fpm @ 2100 rpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 36.5 ft²
Grate Coverage 186º
Grate Thickness 1.5"



Discharge Specifications
Discharge Conveyor Width152 cm
Discharge Conveyor Height 451 cm
Conveyor Speed 152,183, or 213 mpm



DischargeSpecifications
Discharge Conveyor Width60"
Discharge Conveyor Height14' 9"
Conveyor Speed500, 600, or 700 fpm



Production VolumeWeight
Greenwaste446 m3 154 tonnes
Scrap Board 499 m3 101 tonnes

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

ProductionVolumeWeight
Greenwaste583 yd³ 170 tons
Scrap Board653 yd³ 111 tons

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Options6700D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



Options6700D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



UNITS:

All specifications subject to change without notice.

Features

  • A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process

    3-Stage Grinding Process

    The powerful up-turn 3-stage grinding process provides better fracturing of material and a more consistent product, giving you just the product your buyers want.

    A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process
  • A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

    Impact Release System Protects Your Investment

    The air bags on the patented Astec Impact Release System provide uniform grinding and protection from contaminated feedstock, a feature unique to Peterson grinders.

    A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

  • The Second Line of Defense: The Impact Cushion System

    Urethane cushions and shear pins help protect the mill from catastrophic damage in the event of a severe impact from contaminants in the feedstock.
