RexCon^® Mobile 5 CM

Overview

The single load Mobile 5 is ideal for portable projects requiring less than 100 cubic yards an hour

The mobile batch plant is ideal for remote locations and frequent moves. Future central mix capability offers higher productivity. The telescoping fifth wheel and hinged columns allow the plant to be erected with only a front-end loader. The gravity feed cement surge hopper is continuously fed by two recirculating screw conveyors.

Applications

Road Building - Concrete

Astec's comprehensive line of concrete plants delivers high-quality and durability for the roadbuilding industry with an extensive selection of high-production plants and mixers.
Learn More
Ready Mix Concrete

Many plants in Astec's extensive concrete product line are well-suited to ready mix operations.
Learn More
Precast & Prestress

Astec's comprehensive concrete product line features many plants and components for the precast/prestressed concrete market.
Learn More

Downloads

Astec RexCon Mobile 5 Concrete Batch Plant Brochure
Download (pdf) 2 MB

Key Specifications

All specifications subject to change without notice.

Features

Gravity Feed Surge Hopper

225 BBL Silo with Gravity fed cement surge storage hopper. Cement is batched by gravity from the surge section with two screw conveyors replenishing the surge section

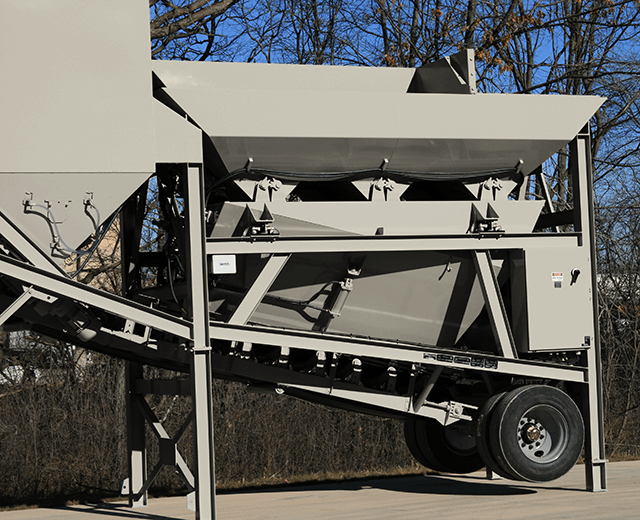

Concrete Aggregate Bins

Low profile aggregate bins (T-style) enable ramping up for material loading or for use with a conveyor in-line

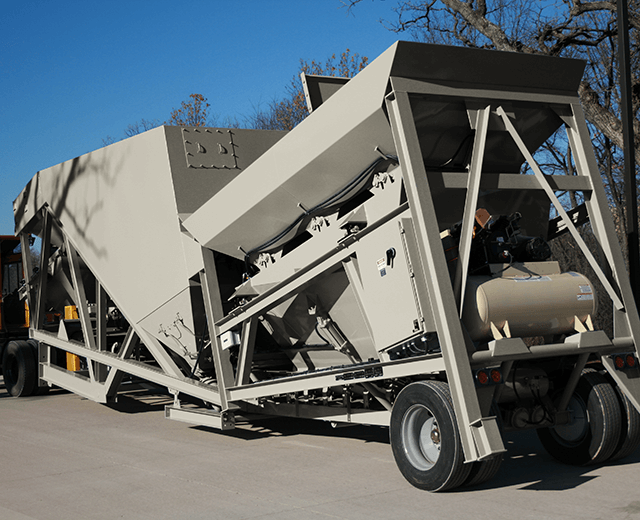

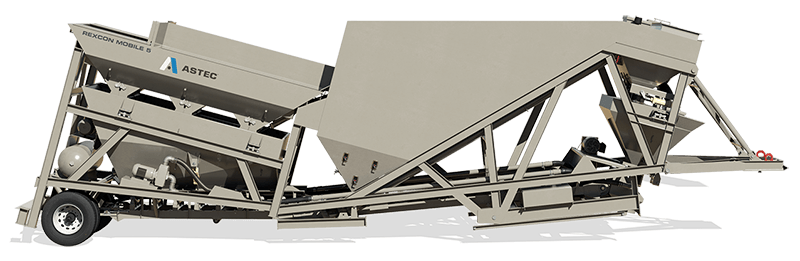

Single Trailer Transport

Single trailer with telescoping fifth wheel hitch and axles with air brakes allows for easy transportation and erection.
