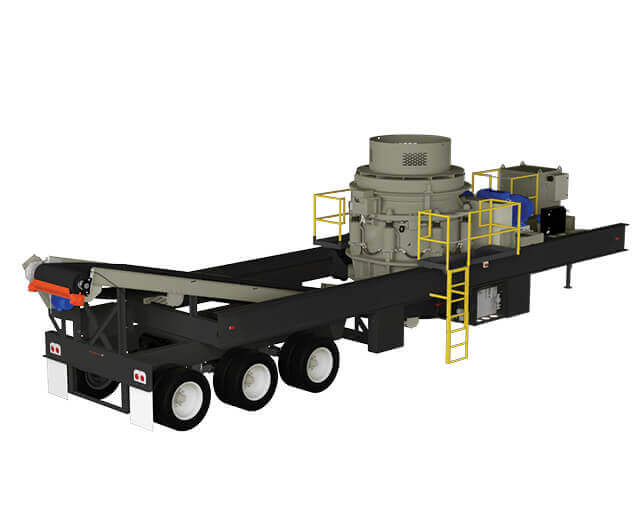

Portable Cone Plants

Overview

The patented innovations behind our portable cone crushing plants provide the efficiency needed to hit financial goals and the worry-free operation demanded from rugged machinery.

A unique roller bearing design reduces operating expenses by up to 50 percent while improving production and energy efficiency compared to bushing crushers. Our portable cone crushing plants meet coarse and fine crushing application requirements and offer on-the-fly adjustability for easy operation.

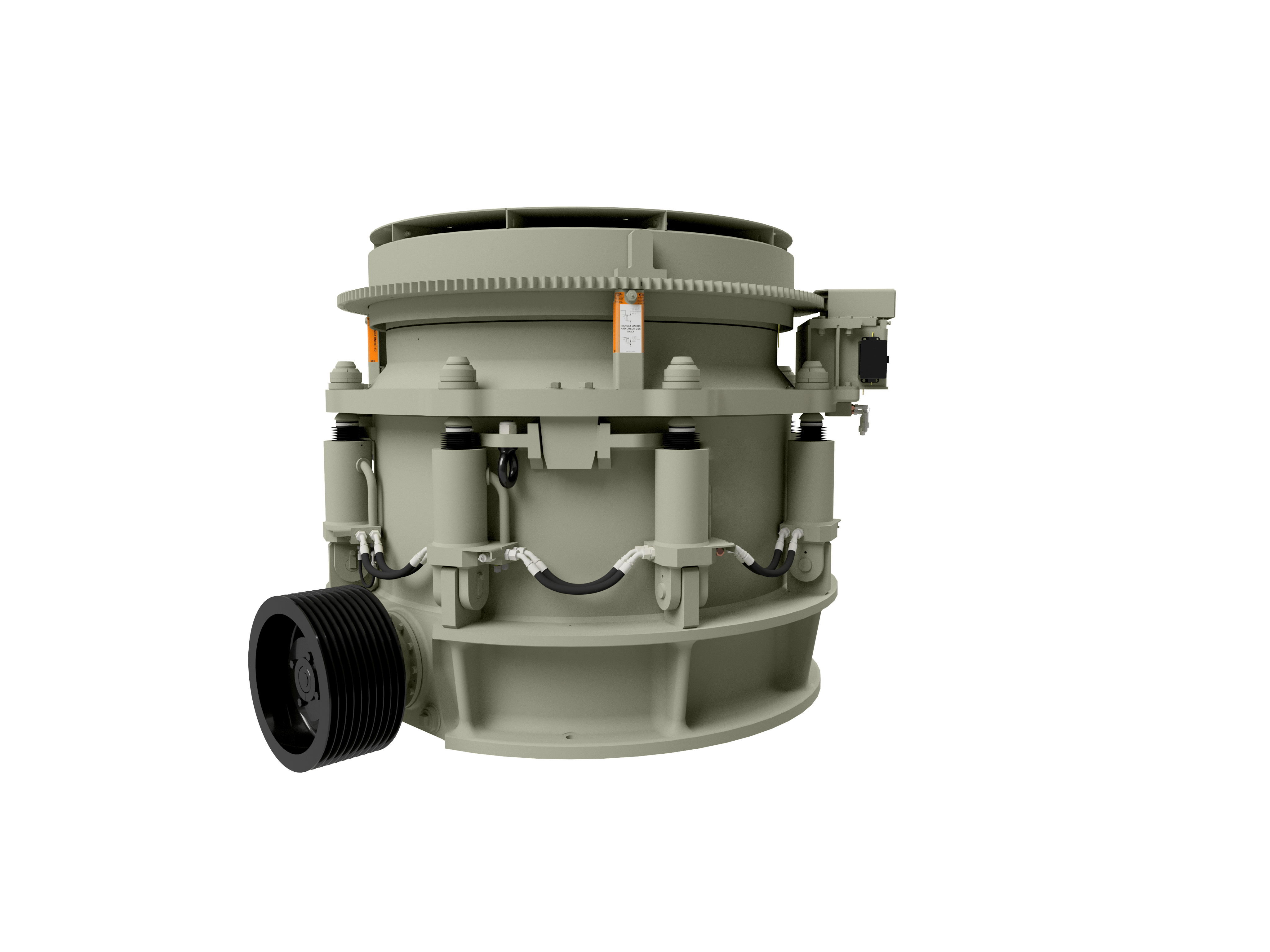

Kodiak® Cone Crusher Animation

Applications

  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Construction

      Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
      Learn More
    • Construction Aggregates

      Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
        Learn More
      • Concrete Recycling

        Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More

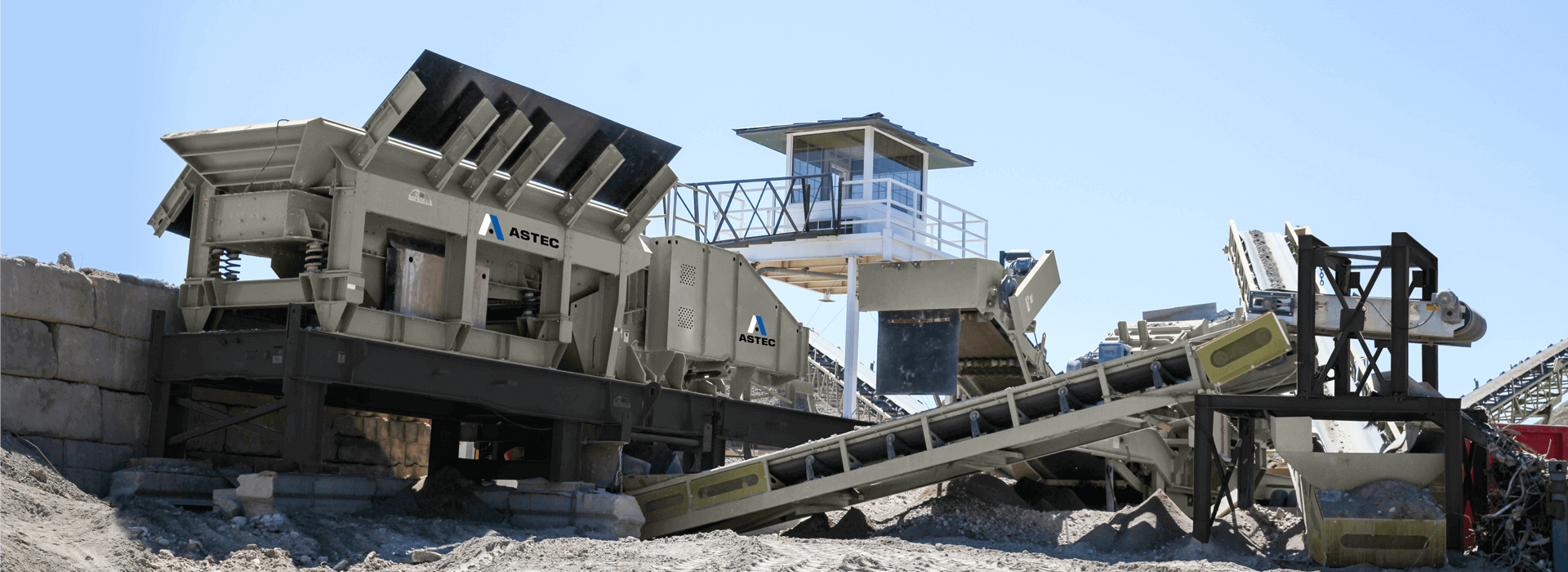

        • Pioneer® jaw crusher in concrete recycling application

          Crushed Stone

          Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Sand & Gravel

            Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Cone Model Screen Maximum Capacity (MTPH) Travel Dimensions – HxWxL (m)
            K200PM K200+ - 350 3.94 x 3.17 x 14.63
            K200-6203CC K200+ 6203-32LP 350 4.26 x 3.65 x 22.45
            K300PM K300+ - 417 4.01 x 3.43 x 14.63
            K300PM In&Out K300+ - 417 4.06 x 3.63 x 19.55
            K300-6203CC K300+ 6203-32LP 417 4.26 x 3.65 x 22.45
            K350PM K350+ - 459 4.03 x 3.39 x 15
            K350PM In&Out K350+ - 459 4.11 x 3.63 x 19.56
            K350-6203CC K350+ 6203-32LP 459 4.42 x 3.36 x 24.15
            K400PM K400+ - 567 4.22 x 3.43 x 14.63
            K400PM In&Out K400+ - 567 4.11 x 3.63 x 19.55
            K500PM K500+ - 753 4.22 x 3.63 x 15.34
            Model Cone Model Screen Maximum Capacity (TPH) Travel Dimensions – HxWxL (ft)
            K200PM K200+ - 385 12.92 x 10.42 x 48
            K200-6203CC K200+ 6203-32LP 385 14 x 12 x 73.67
            K300PM K300+ - 460 13.17 x 11.25 x 48
            K300PM In&Out K300+ - 460 13.33 x 11.92 x 64.17
            K300-6203CC K300+ 6203-32LP 460 14 x 12 x 73.67
            K350PM K350+ - 506 13.25 x 11.11 x 49.13
            K350PM In&Out K350+ - 506 13.5 x 11.92 x 64.17
            K350-6203CC K350+ 6203-32LP 506 14.5 x 12 x 79.23
            K400PM K400+ - 625 13.83 x 11.25 x 48
            K400PM In&Out K400+ - 625 13.5 x 11.92 x 64.17
            K500PM K500+ - 830 13.83 x 11.92 x 50.33
