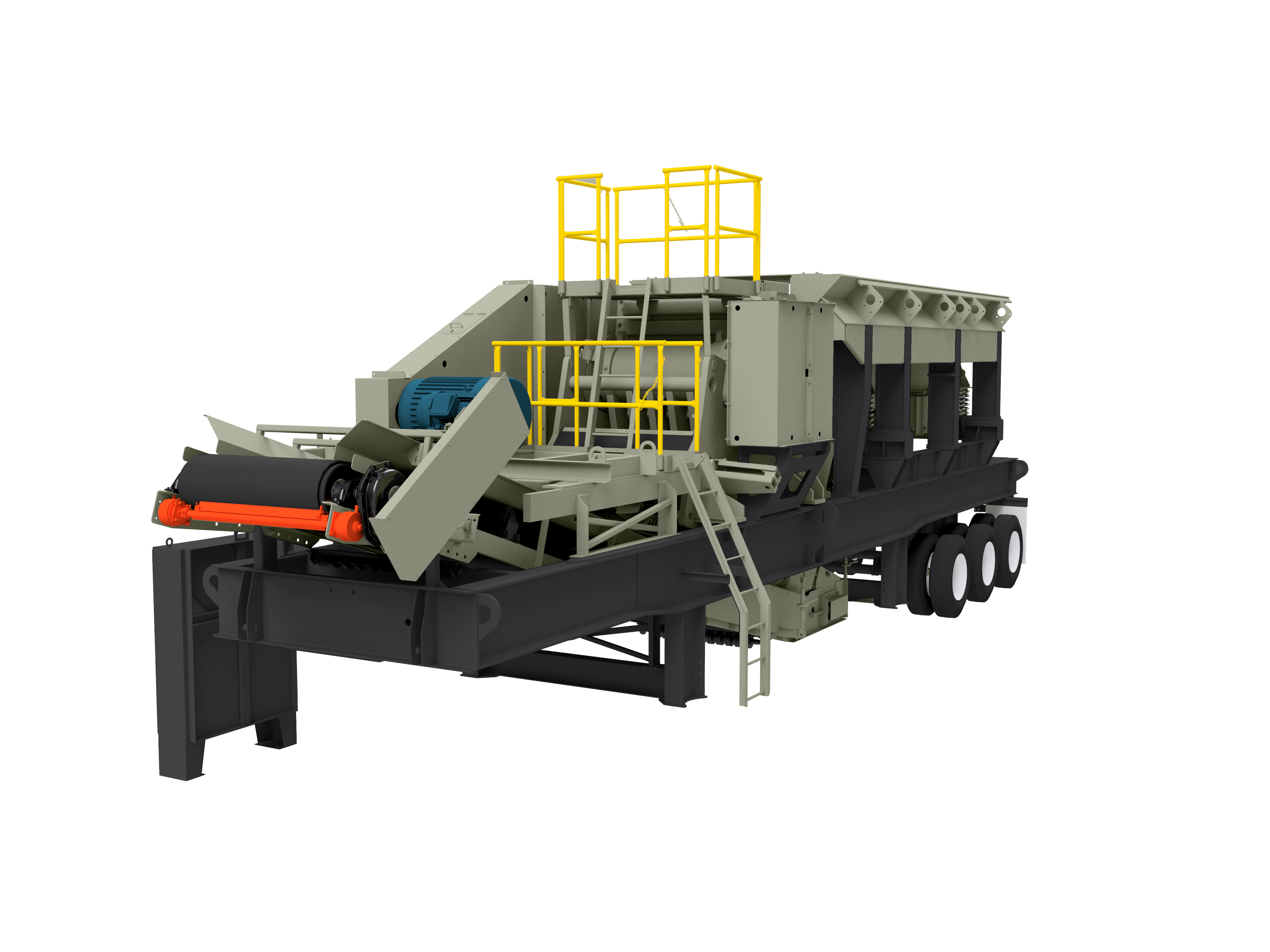

Portable Jaw Plants


Our portable jaw crushing plants represent the very latest in jaw crusher technology.

Engineered to be the highest capacity jaw crusher on the market, our plants can deliver up to 25% more tons per hour than other comparable plants. Pair that with heavy-duty flywheels for reduced horsepower requirements and class-leading stroke for higher capacity, and you have a machine that will help you get the most out of your equipment.

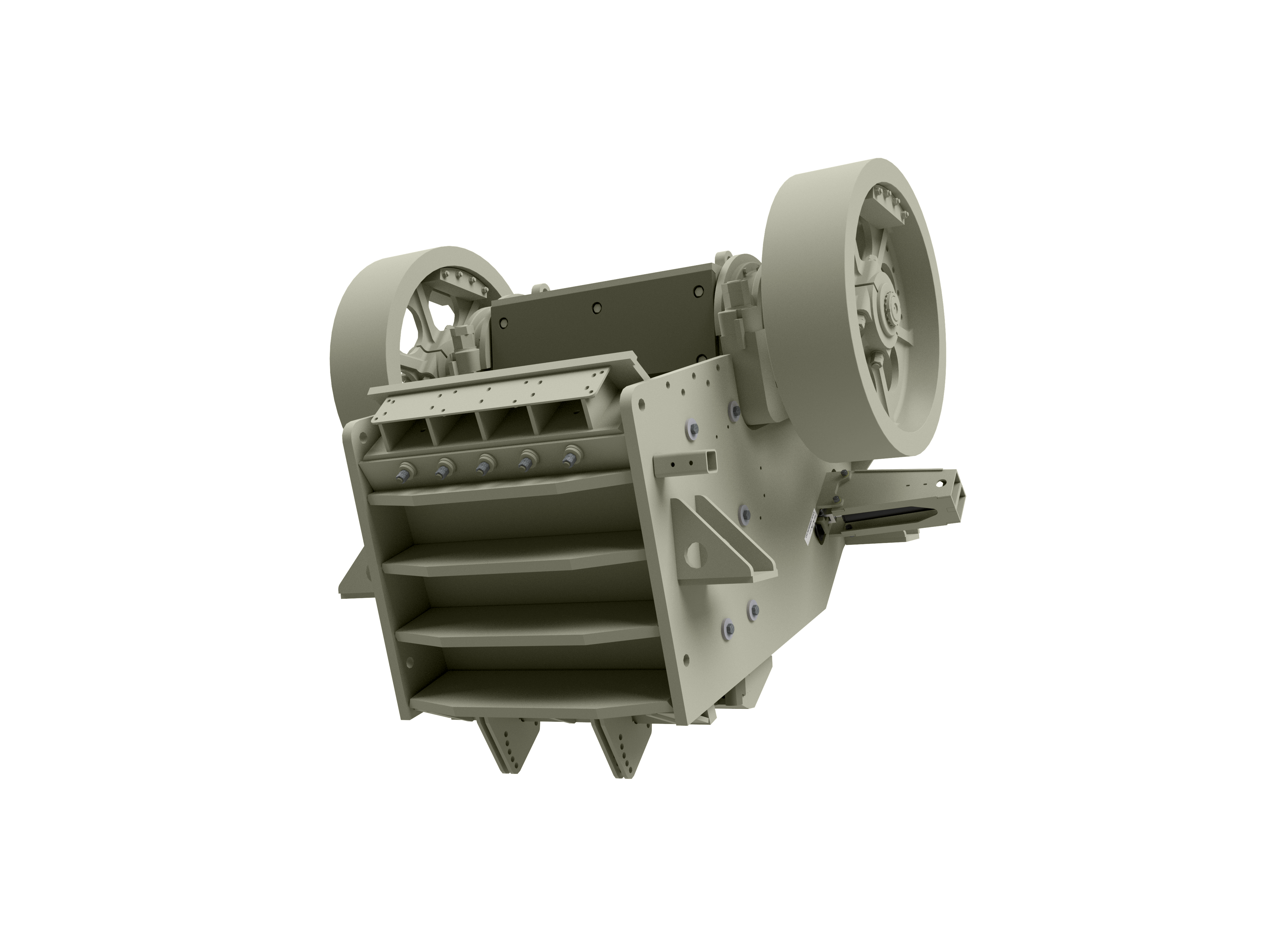

Pioneer® Jaw Crusher Overview


  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Construction

      Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
      Learn More
    • Concrete Recycling

      Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
        Learn More
      • Construction Aggregates

        Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More
        • Pioneer® jaw crusher in concrete recycling application

          Crushed Stone

          Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

            Recycled Asphalt Pavement

            The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
            Learn More
          • Sand & Gravel

            Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
              Learn More




            Model Dimensions – HxWxL (m) Total Weight (kg) Maximum Feed Size (mm) VGF Size (m)
            CS2650 4.2 x 3.4 x 21.6 52,340 530 1.27 x 6.1
            CS3055 4.1 x 3.3 x 14.8 56,000 610 1.27" x 6.1
            CS3365 4.4 x 3.7 x 18.4 73,300 660 1.57 x 6.1
            H2238PP-VGF 4.1 x 3.0 x 12.6 31,000 450 1.06 x 4.88
            CS3244-VGF 4.1 x 3.0 x 12.6 45,440 660 1.22 x 6.1
            H3450PP-VGF 4.3 x 3.6 x 16.4 74,730 690 1.52 x 6.1
            Model Dimensions – HxWxL (ft) Total Weight (lb) Maximum Feed Size (in) VGF Size (ft)
            CS2650 13.8 x 11.0 x 71.0 115,400 21 4.12 x 20
            CS3055 13.5 x 11.0 x 48.7 123,500 24 4.12 x 20
            CS3365 14.4 x 12.0 x 60.5 161,700 26 5.17 x 20
            H2238PP-VGF 13.5 x 9.8 x 41.4 68,370 18 35 x 16
            CS3244-VGF 13.5 x 9.9 x 41.2 100,190 26 3.5 x 20
            H3450PP-VGF 14.2 x 11.9 x 54.0 164,790 27 5 x 20
