Peterson R+ Grinder Package
With 10+ years of development, the R+ package combines the very best in engineering and innovative design to equip a typical “high speed” Peterson horizontal grinder into a “medium speed” machine, utilizing the production of a typical high speed grinder, and the protection of a slow-speed shredder.
With performance nearly doubling the output of typical slow speed shredders, R+ equipped Peterson horizontal grinders offer a solution that has high output, and superior machine protection against ungrindable materials.
Typical R+ applications include Municipal Solid Waste (MSW), Construction and Demolition (C&D) debris, chunk wood such as stumps, storm debris, railroad ties, and other materials.
The R+ package uses a specially designed rotor with high and low bits, that turns at half the speed of our standard units. This processes material through a specialized heavy duty grate, with the high and low bits passing through the fingers, providing extensive fracturing surfaces for superior product reduction.
The R+ package utilizes Peterson’s patented Impact Release System, and Impact Cushion System to protect your investment against an ungrindable object, but has additional modifications such as a heavier duty cushion block to prevent nuisance openings, and an upgraded Impact Release System designed to perform in the harsher environment.
Other mods include more space for ground material to exit the machine, and a heavier duty discharge belt.
Already own a Peterson grinder? Your 4700, 5700, or 6700-series machine may be able to be upgraded as a package so you can take on the difficult jobs that you may have passed by before. Likewise, if you no longer need the protection of the R+ package, and your grinder is going into other applications, the R+ specific parts can be removed and replaced with standard units to change the machine back to a standard “high speed” grinder– no other machine on the market can do that!
Construction & Demolition RecyclingConstruction and demolition recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, gypsum, plastic, metal, wire, roofing shingles, asphalt, concrete and more. By separating and recycling different materials it reduces landfill waste and associated costs, while also producing value-added products.Learn More
Municipal Solid Waste (MSW) RecyclingPeterson horizontal grinders with the R+ package are an ideal tool for MSW reduction. R+ equipped Peterson horizontal grinders turn the rotor at a slower speed and have heavier duty internal components to handle the tramp metal often found in this application.Learn More
Railroad Tie RecyclingThe creosote treated railroad ties are a valuable energy source, once they have been broken down into a manageable and consistent size.Learn More
Natural Disaster CleanupPeterson horizontal grinders are ideal for storm debris cleanup. Our horizontal grinder design allows for easy feeding of odd-shaped material, without the dangers, found in typical tub grinder designs.Learn More
Horizontal Grinder BrochureDownload (pdf) 8 MB

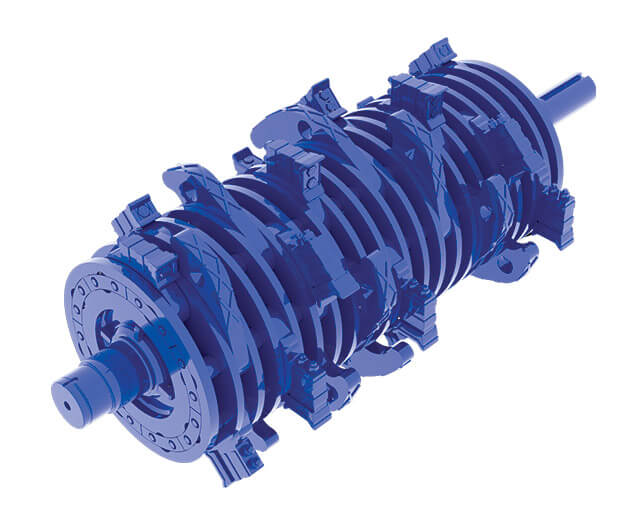

RotorHeavy duty and robust, the R+ rotor’s asymmetrical pattern of high & low bits create an aggressive shearing action with the comb grate.

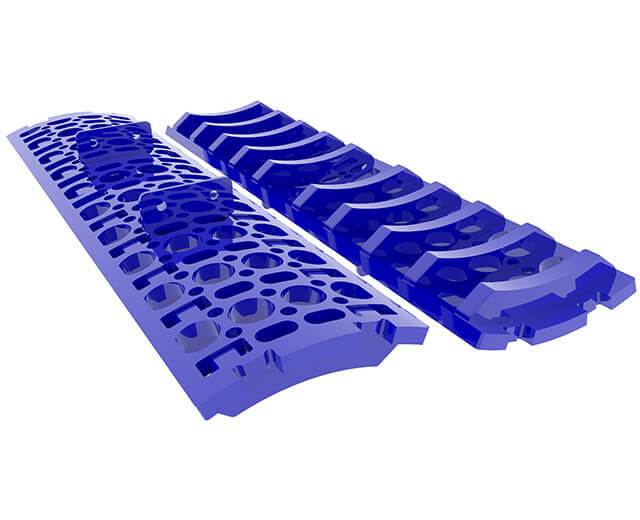

Comb GrateThe comb grate is a heavy-duty grate with additional shearing area, allowing material to be fractured across many surfaces. The three lower grate positions remain empty for material to easily exit the grinding chamber.

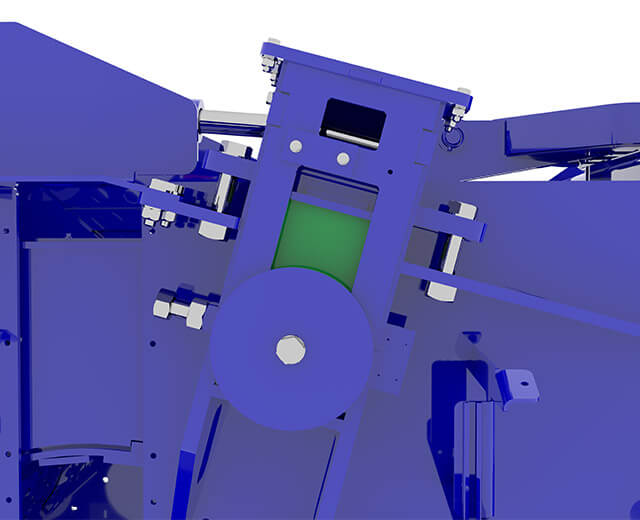

Tougher Impact Release System
The larger shear pin allows a dramatic increase of force needed to trip the Impact Release System.
Cushion blocks with increased hardness allows the Impact Release system to absorb harder hits.

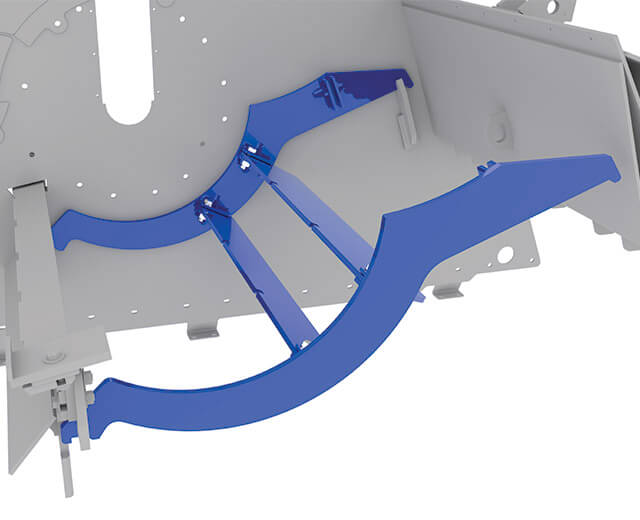

Grate Supports & Baffle Plate
Modified grate supports allow for multiple baffle plate placements.
Reinforced steel for heavier impacts from ejected materials.

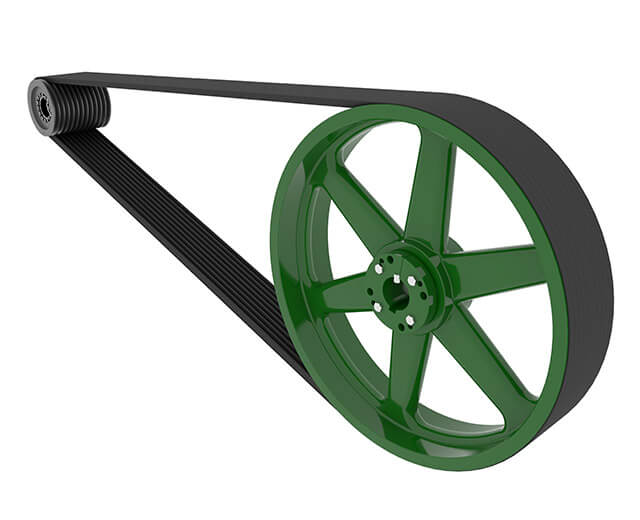

Larger SheaveThe larger sheave decreases the rotor speed in half, allowing the rotor to sustain less damage from impact while creating more torque to efficiently power through heavy materials.

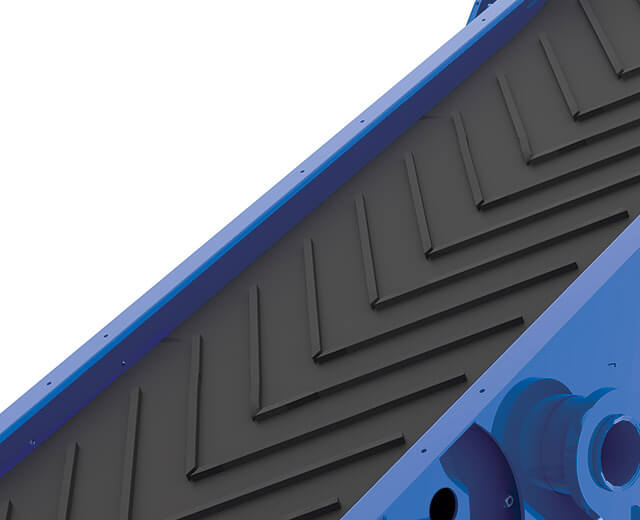

Heavy Duty Conveyor BeltA heavy duty conveyor belt combined with an increased discharge clearance allows for larger volume of materials and superior belt life.

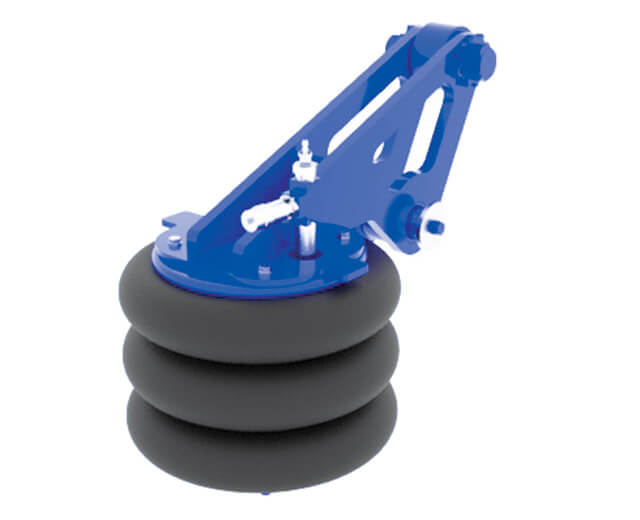

Air BagsAir bags allow more materials to pass through the grinding chamber without unnecessary machine shutdowns, but still offers protection by opening the Impact Release System if an ungrindable object is encountered.
