Hydraulic Compactors

Overview

Astec hydraulic compactors offer you high performance, quality and range, giving you years of dependable operation.

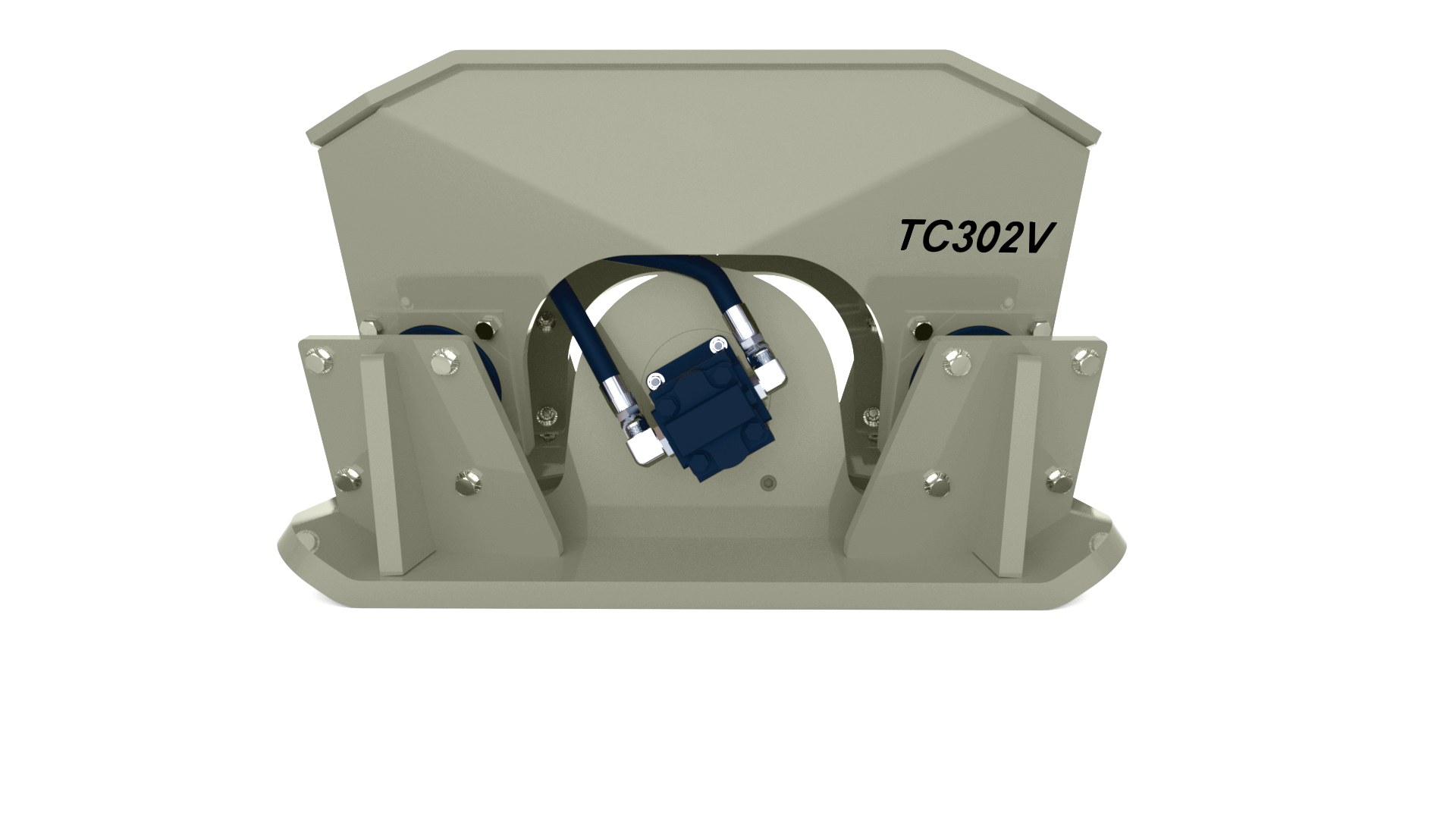

Our unique hydraulic plate compactor design delivers high-impulse energy to help you reach exceptional compaction proctor densities while minimizing maintenance intervals. We offer five models to satisfy a wide range of compaction applications including soil, embankments, trenches, sheet piling and posts.

Applications

  • Construction

    Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
    Learn More

Downloads

Features

Specifications

UNITS:
Model Operating Weight (kg) Impulse Force (kg) Typical Lift (m) Typical Production
(m3/hr)
Ground Pressure (bar) Speed (RPM)
TC92VL 520 2,495 – 3,720 0.6 - 1.2 19 - 27 0.63 - 0.94 1,800 – 2,200
TC92VH 520 2,495 – 3,720 0.6 - 1.2 19 - 27 0.63 - 0.94 1,800 – 2,200
TC152VL 710 5,050 – 7,540 .09 - 1.5 54 - 61 0.77 - 1.15 1,800 – 2,200
TC152VL 710 5,050 – 7,540 .09 - 1.5 64 - 61 0.77 - 1.15 1,800 – 2,200
TC302VL 925 7,405 – 11,065 1.2 - 1.8 107 - 122 0.92 - 1.38 1,800 – 2,200
TC302VH 925 7,405 – 11,065 1.2 - 1.8 107 - 122 0.92 - 1.38 1,800 – 2,200
Model Operating Weight (lb) Impulse Force (lb) Typical Lift (ft) Typical Production (yd3/hr) Ground Pressure (psi) Speed (RPM)
TC92VL 1,150 5,500 – 8,200 2 - 4 25 - 35 9.2 - 13.7 1,800 – 2,200
TC92VH 1,150 5,500 – 8,200 2 - 4 25 - 35 9.2 - 13.7 1,800 – 2,200
TC152VL 1,565 11,130 – 16,630 3 - 5 70 - 80 11.2 - 16.7 1,800 – 2,200
TC152VH 1,565 11,130 – 16,630 3 - 5 70 - 80 11.2 - 16.7 1,800 – 2,200
TC302VL 2,045 16,330 – 24,400 4 - 6 140 - 160 13.4 - 20 1,800 – 2,200
TC302VH 2,045 16,330 – 24,400 4 - 6 140 - 160 13.4 - 20 1,800 – 2,200
