Hydraulic Breakers

Overview

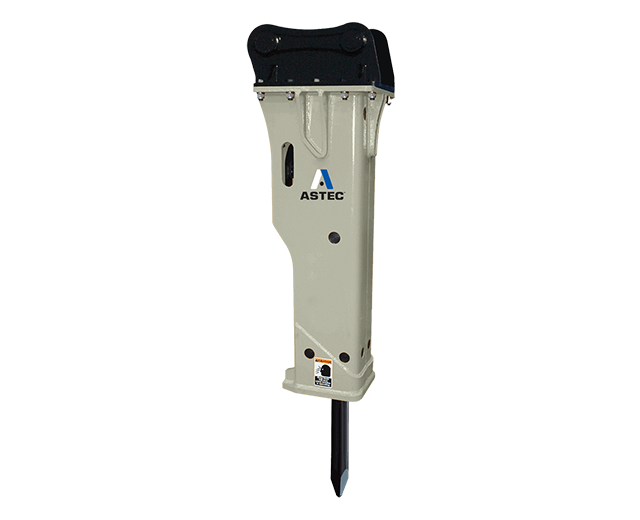

Astec hydraulic breakers are designed for optimal performance in a variety of applications from concrete and soft rock breaking to full demolition projects.

With three size ranges and a variety of attachable tools, we have hydraulic breakers for any producer. Our breakers feature reduced noise levels, low operating costs, internal component protection and many more features to make any operation successful.

Applications

  • Concrete Recycling

    Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
      Learn More
    • Aggregates

      There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
        Learn More
      • Construction Aggregates

        Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
          Learn More
        • Construction

          Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More
        • Surface

          Surface mining involves removing soil and bedrock to reach resource deposits. The most common types of surface mining are strip mining and open-pit mining. The most common types of surface mining are strip mining and open-pit mining.
          Learn More
        • Underground

          Underground mining involves digging into the earth and creating tunnels and shafts to reach hard rock deposits. The coarse ore that is removed from the stope can be crushed using a jaw or cone crusher or crushed using a rock breaker.
          Learn More

        Downloads

        Features

        Specifications

        UNITS:
        Model Operating Weight (kg) Overall Length (mm) Operating Pressure (bar) Tool Diameter (mm) Exposed Tool Length mm)
        CX4 180 1,334 120 53 321
        CX6 224 1,408 140 62 344
        CX8 333 1,635 140 70 500
        BX10 430 1,800 140 78 445
        BX15 615 1,980 140 85 465
        BX20 930 2,225 160 105 538
        BX30 1,210 2,455 170 120 668
        BX40 1,740 2,760 170 135 668
        BXR50C 1,910 2,622 186 140 635
        BXR65C 2,200 2,863 186 150 665
        BXR85C 2,950 3,241 186 160 745
        BXR100C 3,540 3,400 186 170 770
        BXR120C 4,170 3,500 186 180 810
        BXR160C 5,490 3,943 186 200 930
        BXR185D 7,100 4,590 186 221 913
        Model Operating Weight (lb) Overall Length (in) Operating Pressure (psi) Tool Diameter (in) Exposed Tool Length (in)
        CX4 396 53 1,710 2.1 12.6
        CX6 493 55 2,000 2.4 13.5
        CX8 734 64 2,000 2.8 19.7
        BX10 948 71 2,000 3.1 17.5
        BX15 1,355 78 2,000 3.3 18.5
        BX20 2,050 88 2,300 4.1 21.3
        BX30 2,668 97 2,450 4.7 26.5
        BX40 3,830 109 2,450 5.3 26.5
        BXR50C 4,200 103 2,700 5.5 25
        BXR65C 4,860 112 2,700 6.0 26.2
        BXR85C 6,500 128 2,700 6.3 29.3
        BXR100C 7,800 134 2,700 6.7 30.3
        BXR120C 9,200 138 2,700 7.1 31.9
        BXR160C 12,100 155 2,700 7.9 36.6
        BXR185D 15,660 181 2,700 8.7 36
