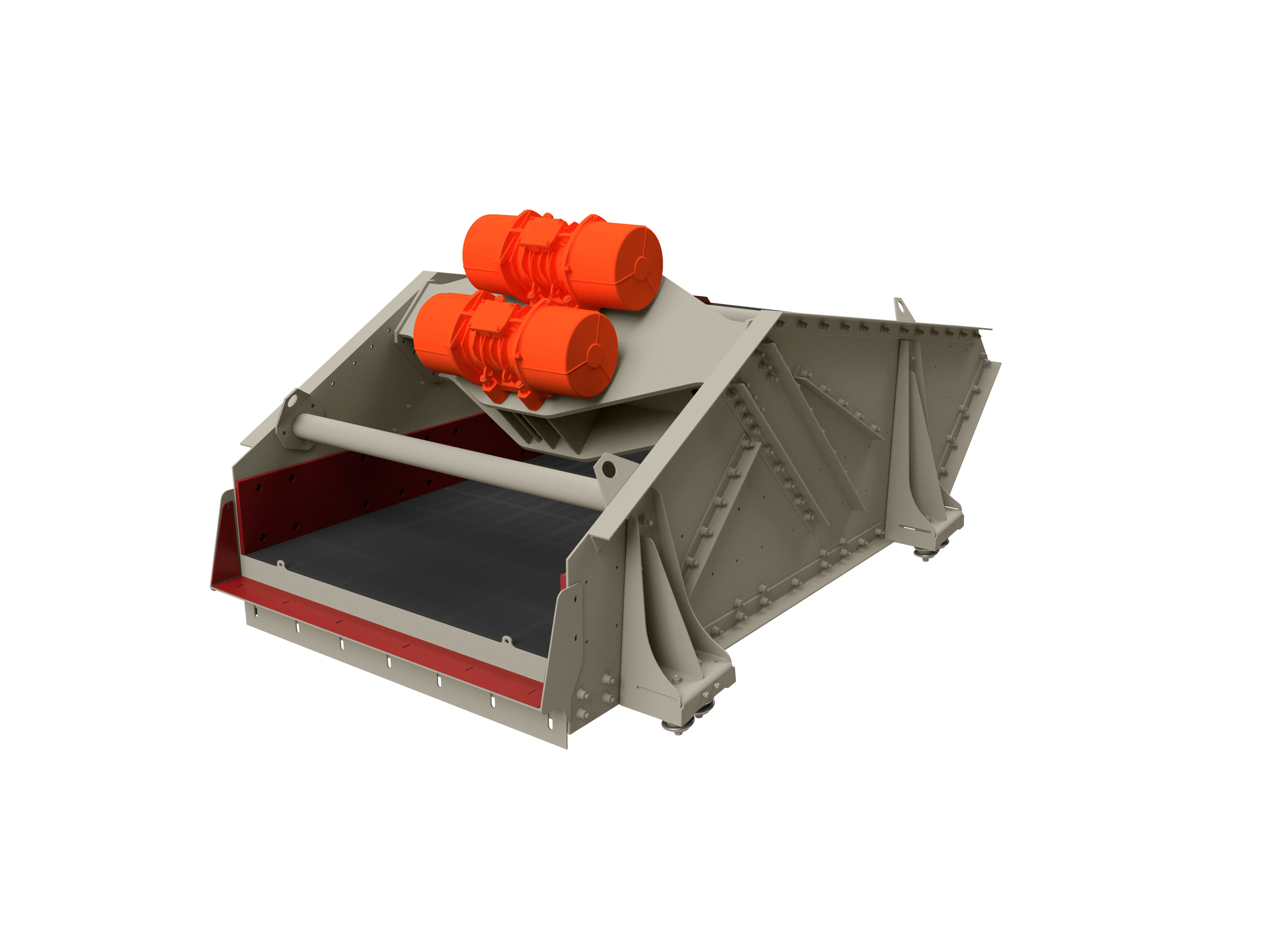

Dewatering Screens

Overview

Our dewatering screens can produce a finished fine material product with a moisture content as low as 8 percent.

These single-deck screens dewater fine aggregates prior to stockpiling. By utilizing a dewatering screen, producers can cut drying time significantly and get material out the door quickly.

Applications

  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Sand & Gravel

      Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
        Learn More

      Downloads

      Features

      Specifications

      UNITS:
      Model Horsepower Estimated Fine Sand Capacity (MTPH) Estimated Coarse Sand Capacity (MTPH)
      DWS 27 2 at 2.7 11.8 39
      DWS 38 2 at 3.9 18.1 59
      DWS 410 2 at 4.7 39 130.6
      DWS 513 2 at 8.4 59 196
      DWS 613 2 at 9.4 70.8 235
      DWS 716 2 at 15.4 96.2 320.2
      DWS 816 2 at 15.4 109.8 365.6
      Model Horsepower Estimated Fine Sand Capacity (TPH) Estimated Coarse Sand Capacity (TPH)
      DWS 27 2 at 2.7 13 43
      DWS 38 2 at 3.9 20 65
      DWS 410 2 at 4.7 43 144
      DWS 513 2 at 8.4 65 216
      DWS 613 2 at 9.4 78 259
      DWS 716 2 at 15.4 106 353
      DWS 816 2 at 15.4 121 403
