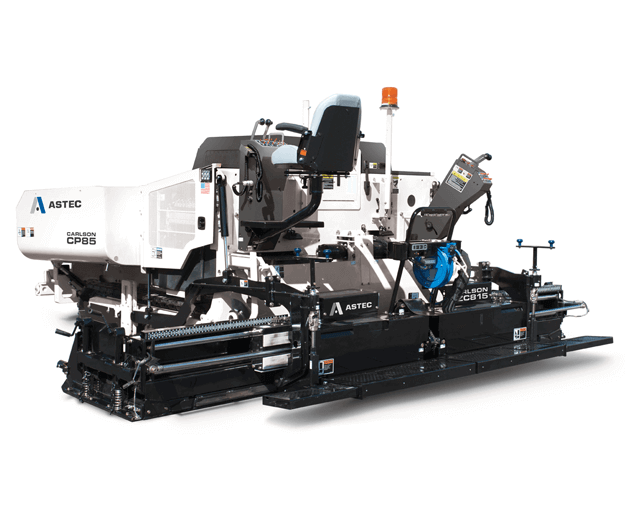

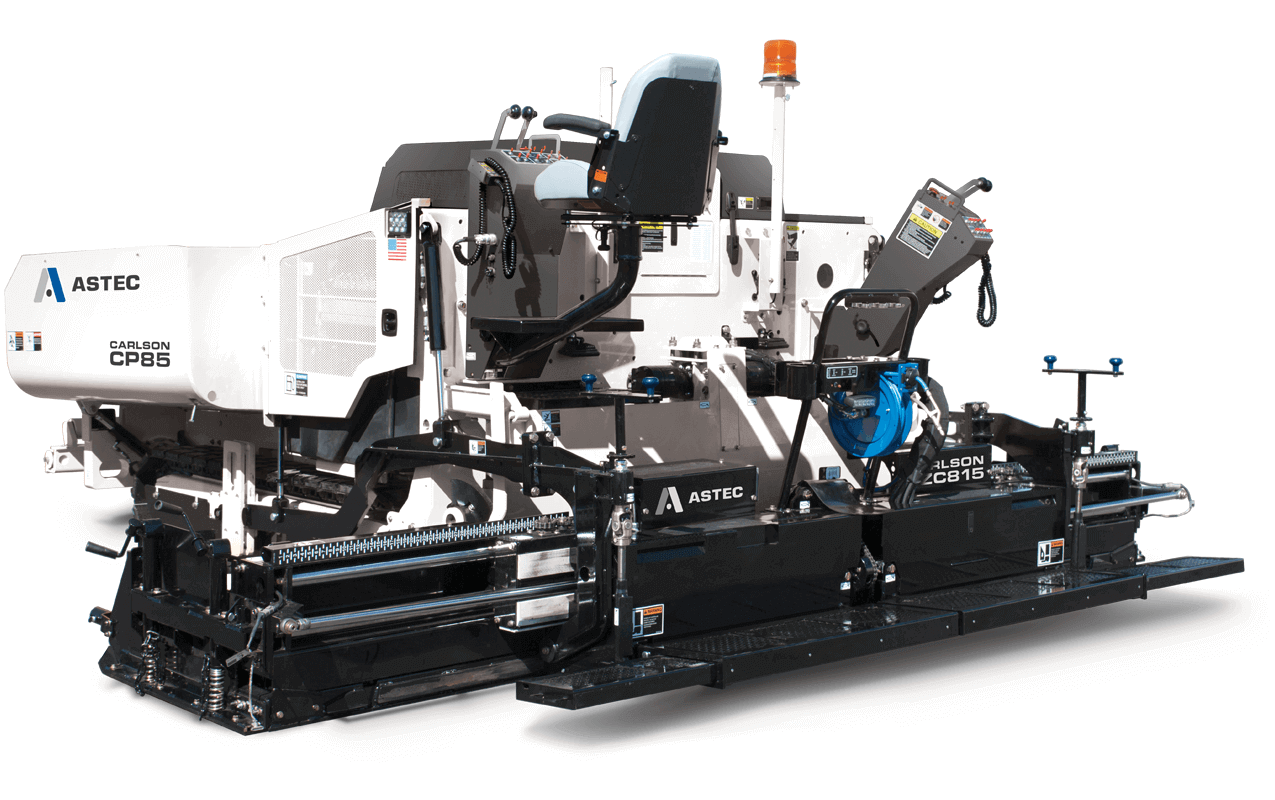

Carlson CP85 Commercial Class Asphalt Paver

Overview

Combining proven design with increased torque and efficiency, the CP85 is the ideal platform from small to large-scale commercial paving projects. Utilizing heavy-duty, fully replaceable highway-class wear components, an intuitive, contractor focused platform and the renowned EZC815 electrically heated screed, the CP85 delivers big results in a small paver.

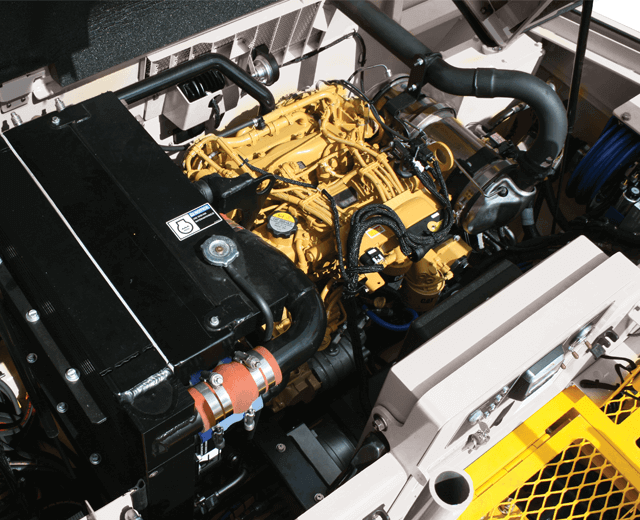

Featuring a powerful, high torque and quiet 74hp Tier IV Final engine (No DEF), the CP85 meets and exceeds the demands of contractors. The platform’s versatility, along with its low profile, enables the paver to be utilized in size restrictive areas, including covered areas such as drive-through, while have the performance and contractor-focus for large scale parking lot or municipal road applications.

Applications

  • Residential Paving

    Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range.  Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
    Learn More
  • Commercial Paving

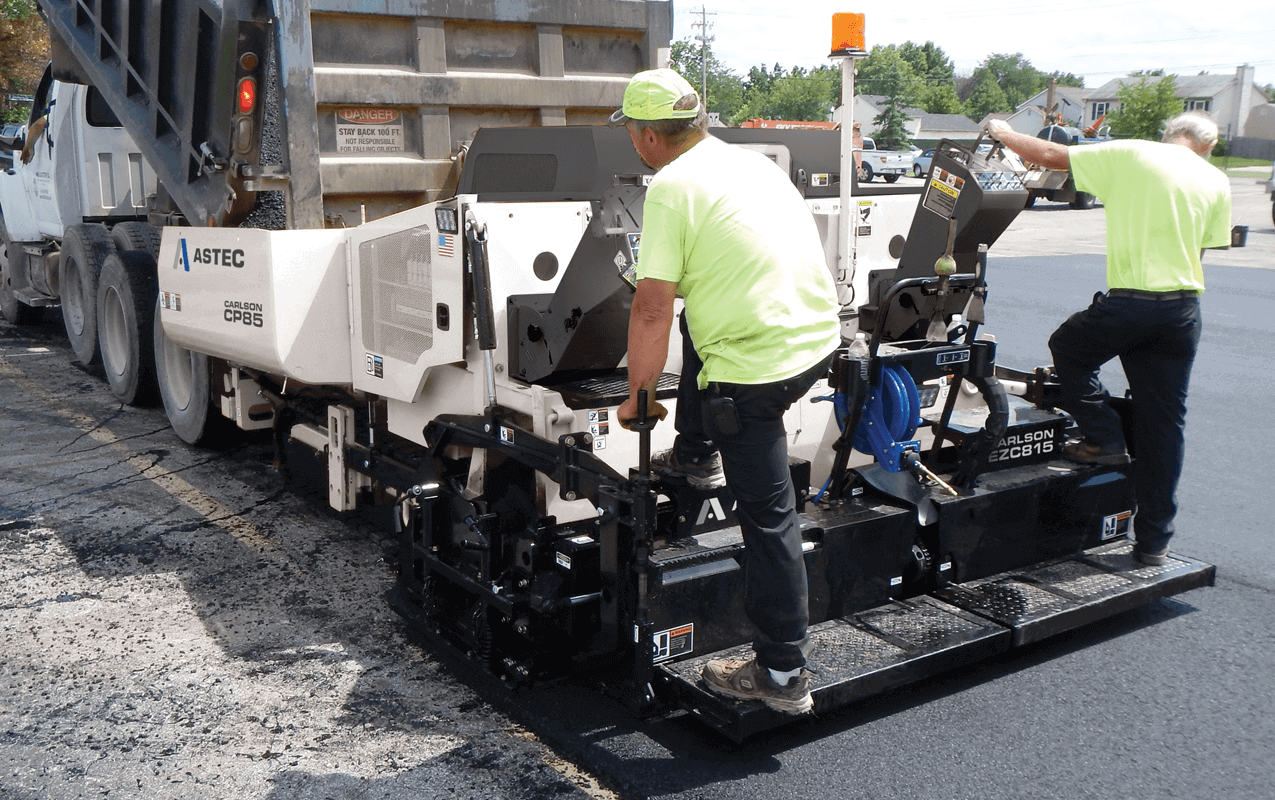

    Commercial paving applications need machinery that can scale down the highway paver size without scaling down the power, functionality, performance, or efficacy. These pavers are able to pave hard-to-reach areas such as parking lots, traffic circles, and roundabouts to yield a quality mat without sacrificing productivity.

    Learn More

Features

Specifications

UNITS:
DetailsSpecifications
Engine55kW CAT 3.4B
EU Emissions StandardStage IV
Drive System2 Speed Planetary
Track Type (Standard)305mm Poly-Pad
Max Pave Speed30.5m/min
Max Travel Speed60.9m/min
Max Reverse Speed60.9m/min

DetailsSpecifications
Engine74hp CAT 3.4B
EPA Emissions StandardTier IV Final
Drive System2 Speed Planetary
Track Type (Standard)12in Poly-Pad
Max Pave Speed100fpm
Max Travel Speed200fpm
Max Reverse Speed200fpm
DimensionsSpecifications
Length4216mm
Width3098mm
Height2387mm
Total Weight8958kg
Tractor Weight6350kg
Screed Weight1474kg
Hopper Capacity7.7tonnes
Hopper Inside Width Opening3050mm
Hopper Dump Clearance686mm
Load Angles15° Forward/15° Reverse
DimensionsSpecifications
Length166in
Width122in
Height94in
Total Weight19,750lb
Tractor Weight16,500lb
Screed Weight3,250lb
Hopper Capacity8.5tons
Hopper Inside Width Opening10ft
Hopper Dump Clearance27in
Load Angles15° Forward/15° Reverse
CapacitiesSpecifications
Fuel Tank113.6L
Hydraulic Tank170.3L
Cooling System Capacity10.4L
Washdown Tank37.9L
Electrical System12v w/ 80 amp Alternator
Generator14.4kW Belt Driven
CapacitiesSpecifications
Fuel Tank30gal
Hydraulic Tank45gal
Cooling System Capacity11qt
Washdown Tank10gal
Electrical System12v w/ 80 amp Alternator
Generator14.4kW Belt Driven
ComponentsSpecifications
Floor Plate Thickness9.5mm 450 Brinell-rated
Conveyor Belt Width660mm
Conveyor SystemChain & Slat Conveyor
Damper DoorsDual Horizontally Sliding
Auger Diameter305mm
Auger Flight Thickness22mm 500 Brinell-rated
Max. Auger Speed120 rpm
ComponentsSpecifications
Floor Plate Thickness.375in 450 Brinell-rated
Conveyor Belt Width26in
Conveyor SystemChain & Slat Conveyor
Damper DoorsDual Horizontally Sliding
Auger Diameter12in
Auger Flight Thickness.875in 500 Brinell-rated
Max. Auger Speed120 rpm
EZC815 ScreedSpecifications
Standard Paving Width2.43m to 4.59m
Maximum Paving Width5.18m
Paving Depth6mm to 203mm
Main Plate Depth406mm at Center / 356mm at Edge
Main Plate Thickness9.5mm 450 Brinell Rated
Extension Plate Depth203mm
Extension Plate Thickness9.5mm 450 Brinell Rated
Screed Heat SourceElectric Heating Elements
EndgatesSpring Loaded
Crown AdjustmentManual Adjustment
Crown/Invert76mm / 25mm
Extension Height AdjustmentManual Adjustment
Vibration0-3000vpm
EZC815 ScreedSpecifications
Standard Paving Width8ft to 15ft
Maximum Paving Width17ft
Paving Depth.25in to 8in
Main Plate Depth16in at Center / 14in at Edge
Main Plate Thickness.375in 450 Brinell Rated
Extension Plate Depth8in
Extension Plate Thickness.375in 450 Brinell Rated
Screed Heat SourceElectric Heating Elements
EndgatesSpring Loaded
Crown AdjustmentManual Adjustment
Crown/Invert3in / 1in
Extension Height AdjustmentManual Adjustment
Vibration0-3000vpm
