Carlson CP75 II Commercial Class Asphalt Paver

Overview

The CP75 II excels on sites ranging from driveways to large parking lots

The CP75 is designed to meet the challenges of a wide array of applications. The compact design enables paving in size-restrictive locations, such as parking garages and covered areas. The low hood and screed-mounted controls give optimal visibility and comfort. The high torque 74hp Deutz Tier IV Final engine (no DEF), class-exclusive High Flow Material Conveyor and a wide variety of options combine to make the CP75 II the benchmark in commercial class pavers.

Applications

Residential Paving

Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range. Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
Learn More
Commercial Paving

Commercial paving applications need machinery that can scale down the highway paver size without scaling down the power, functionality, performance, or efficacy. These pavers are able to pave hard-to-reach areas such as parking lots, traffic circles, and roundabouts to yield a quality mat without sacrificing productivity.
Learn More

Downloads

Astec-Carlson-Commercial-Class-Asphalt-Paver-Line-Brochure
Download (pdf) 2 MB
Astec-Carlson-CP75-II-Commercial-Class-Asphalt-Paver-Spec-Sheet-English
Download (pdf) 688 KB

Key Specifications

All specifications subject to change without notice.

Features

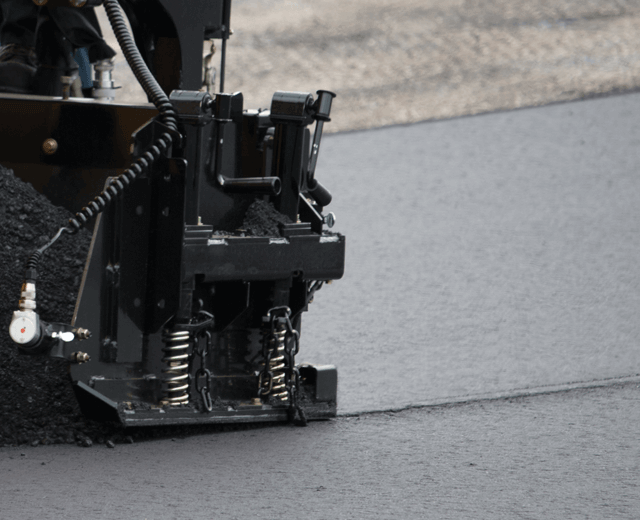

EZC815 Screed

• Standard paving width of 8′-15′

The EZC815 comes standard with electric heat, full length element holddowns for efficient heat transfer, adjustable deck cone system for leveling, spring loaded endgates and the exclusive Carlson 2% screed taper. Along with its intuitive adjustment points and easy leveling, the platform achieves exceptional mat quality season after paving season.

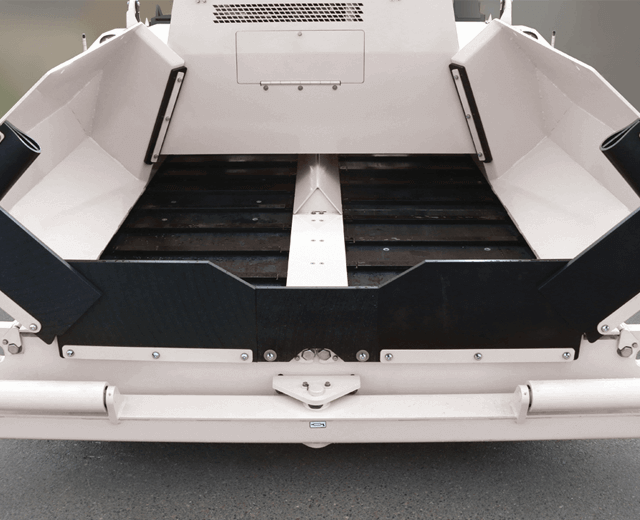

Material Flow

• 35.5in Chain/slat conveyor system
• Frame design that eliminates the need for under hopper daily clean out.
Horizontal Sliding Damper Doors

A feature that keeps obstructions such as utility boxes from damaging them while open, the horizontal sliding doors are infinitely adjustable for utilization during wide width paving, utility cut applications, or fully closed for transport across the jobsite.

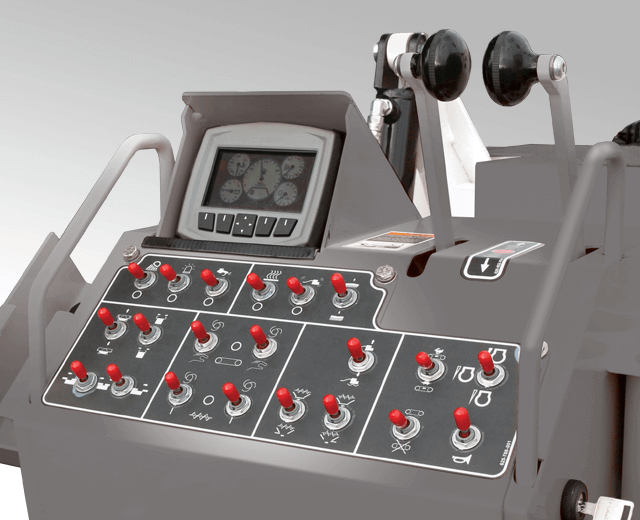

Control Stations

Both control stations feature direct connect cable steering levers, intuitively placed hydraulic functions and organized switch placement. The CP75 II also features a 4.5in (114mm) full color LED display at the left hand station, providing up to the second information on engine performance and instrument gauges, including fuel level.

The CP75 II comes standard with cup holders, tool trays, locking tool boxes, depth rod holders and citrus washdown tank and 25ft reel.
