Astec Vantage Highly Portable Asphalt Plant

Overview

140 MTPH Highly Portable Asphalt Plant

The Astec Vantage is based upon Astec’s proven Double Barrel^® drum mixer. With production capacity of 140 tonnes/hr and RAP mixing capability of 50%, the Vantage sets the standard for portability, production, and sustainability.

Small plant footprint, big plant features. The Astec Vantage plant delivers full-size plant features in a compact highly-portable configuration. Each component is designed to maximize mix quality while also maintaining portability and set-up ease.

ASTEC VANTAGE HIGHLY PORTABLE ASPHALT PLANT

Applications

Asphalt Mixing

A thermal mixing process is required to turn aggregates and liquid AC into an asphalt pavement mix for road construction. This makes an asphalt mixing plant necessary for road construction. The complete line of Astec asphalt mixing plants, and its range of capacities and features, gives you the choices and flexibility to create your optimum solution.
Learn More
Recycled Asphalt Pavement

The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
Learn More

Downloads

Astec Vantage Highly Portable Asphalt Plant Brochure 2021
Download (pdf) 2 MB
Astec Vantage Highly Portable Asphalt Plant Brochure Spanish
Download (pdf) 3 MB

Features

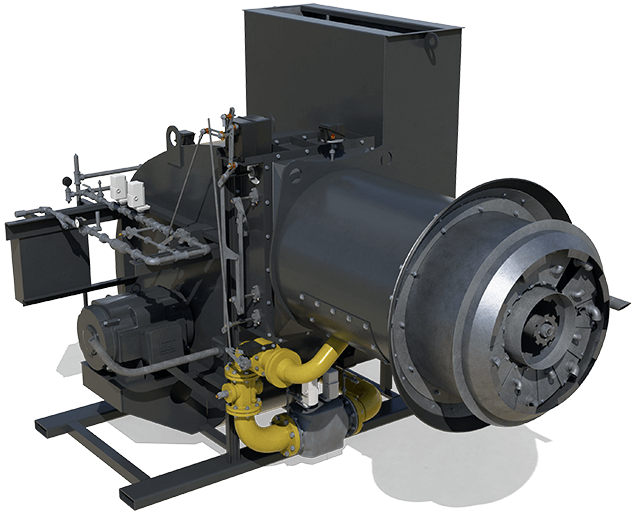

Whisper Jet® Burner

Whisper Jet® Burner • Total Air • 38.5 Millions of BTU/HR
The Astec Whisper Jet burner delivers unmatched reliability and hassle-free maintenance. The Whisper Jet burner cleanly and effectively burns oil, natural gas, or propane.

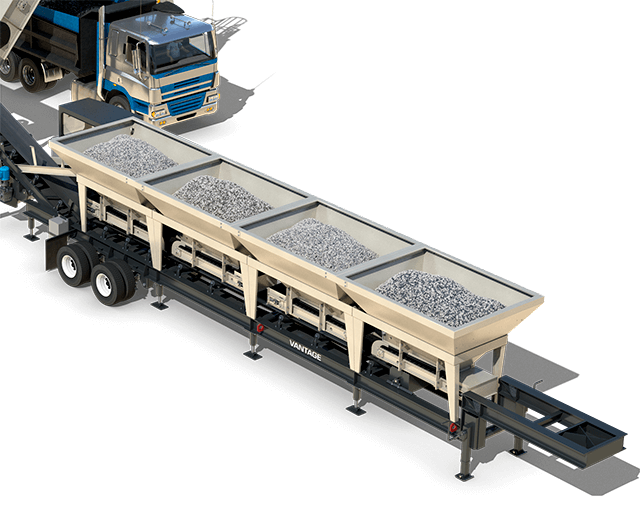

Cold Feed Bins

Large Bin Features
Modular 2.9 m x 3 m (9.5 ft x 10 ft) bin design offers full-size plant features such as ample capacity, sloped bin walls for smooth flow, and self-relieving bin openings for even feeding.

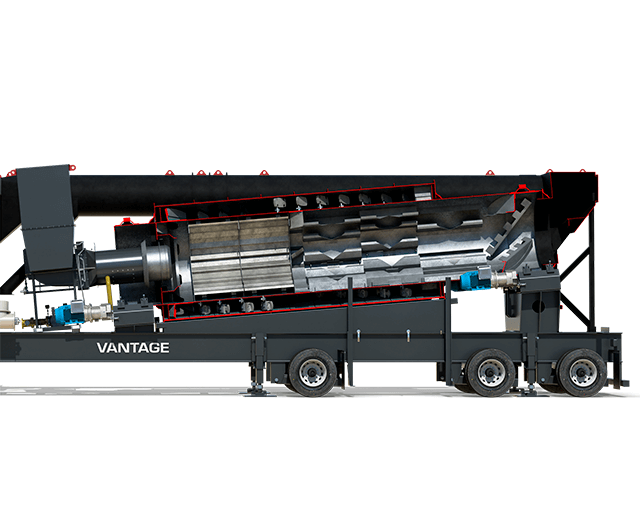

Double Barrel® Drum

The Astec Vantage uses the proven technology of a Double Barrel drum mixer to continuously produce up to 140 tonnes/hr (154 tph). Astec’s proven v-flights come standard and provide uniformity of the aggregate veil for effective and efficient heat transfer.
Produce mix with up to 50% RAP with optional RAP bins.

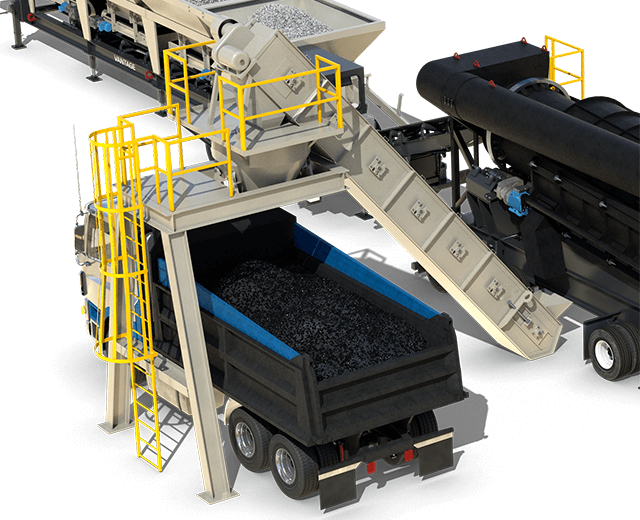

Drag Conveyor and Batcher

From the standard, manually-erected drag conveyor and batcher to the optional self-erect drag and silo, the Voyager 140 is ready to get mix to the road. Each component is designed to maximize mix quality by eliminating the potential for mix segregation.

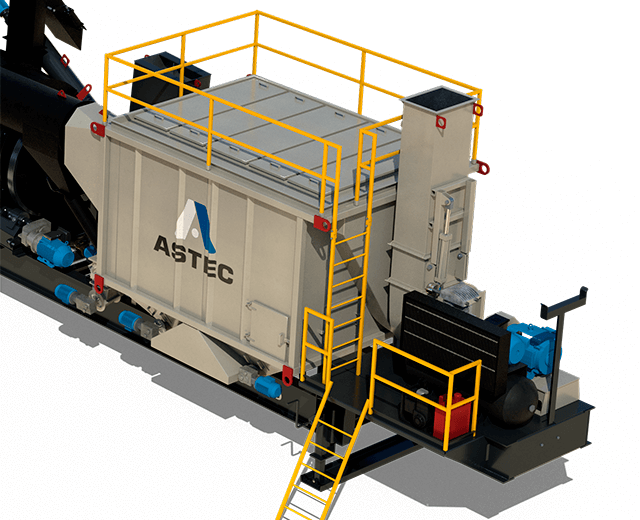

Air Filtration System

Pulse Jet Baghouse
35,800 m³/hr (21,125 CFM) Pulse Jet baghouse with 260 Aramid bags collect fines and ensure that the Voyager V140 effectively minimizes environmental impact. The compact design maximizes portability.
