The Astec Vantage is based upon Astec’s proven Double Barrel® drum mixer. With production capacity of 140 tonnes/hr and RAP mixing capability of 50%, the Vantage sets the standard for portability, production, and sustainability.
Small plant footprint, big plant features. The Astec Vantage plant delivers full-size plant features in a compact highly-portable configuration. Each component is designed to maximize mix quality while also maintaining portability and set-up ease.

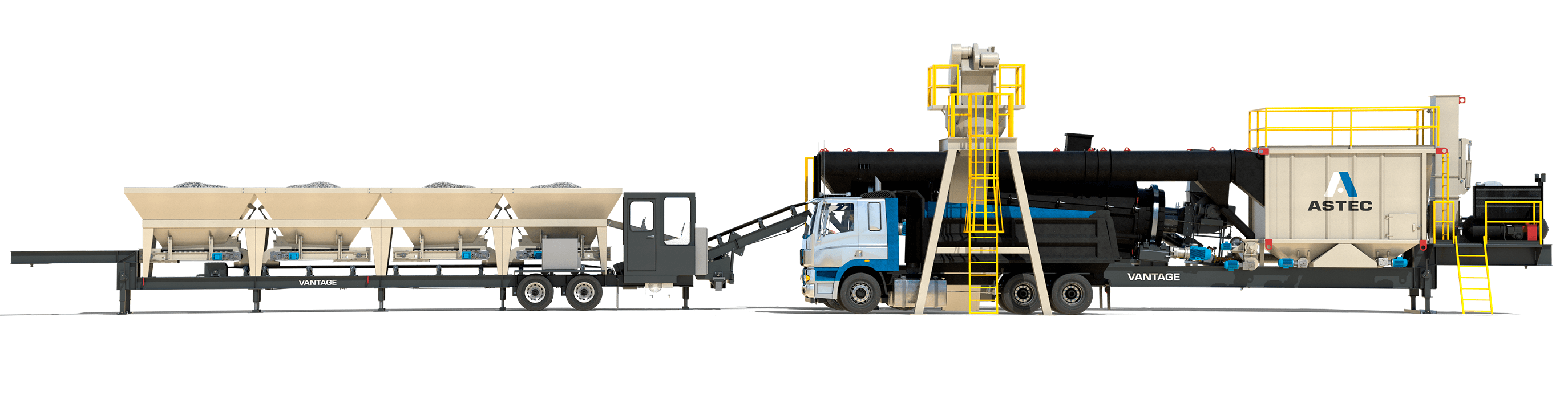

ASTEC VANTAGE HIGHLY PORTABLE ASPHALT PLANT
A thermal mixing process is required to turn aggregates and liquid AC into an asphalt pavement mix for road construction. This makes an asphalt mixing plant necessary for road construction. The complete line of Astec asphalt mixing plants, and its range of capacities and features, gives you the choices and flexibility to create your optimum solution.

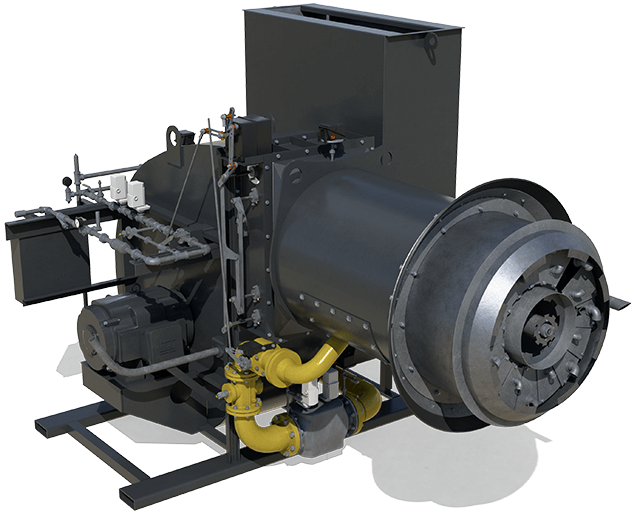

Whisper Jet® Burner • Total Air • 38.5 Millions of BTU/HR
The Astec Whisper Jet burner delivers unmatched reliability and hassle-free maintenance. The Whisper Jet burner cleanly and effectively burns oil, natural gas, or propane.

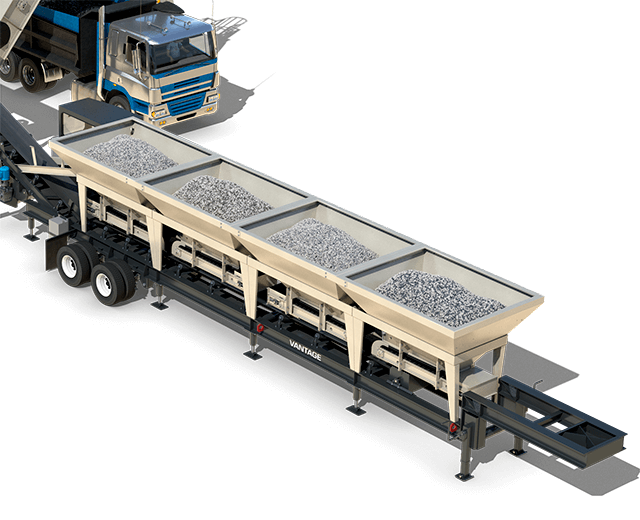

Cold Feed Bins
Large Bin Features
Modular 2.9 m x 3 m (9.5 ft x 10 ft) bin design offers full-size plant features such as ample capacity, sloped bin walls for smooth flow, and self-relieving bin openings for even feeding.

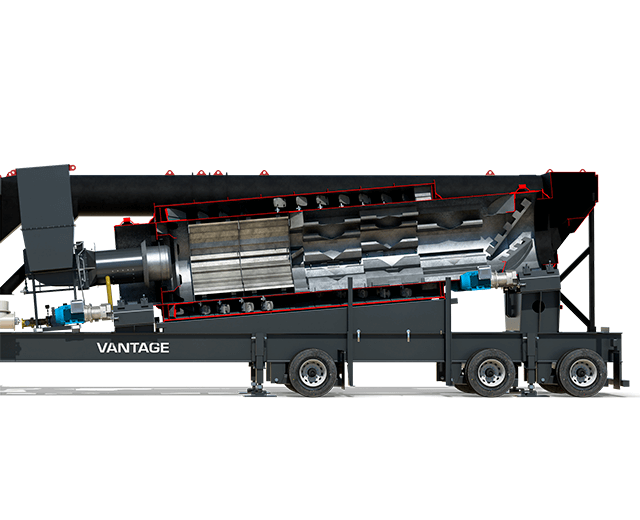

Double Barrel® Drum
The Astec Vantage uses the proven technology of a Double Barrel drum mixer to continuously produce up to 140 tonnes/hr (154 tph). Astec’s proven v-flights come standard and provide uniformity of the aggregate veil for effective and efficient heat transfer. Produce mix with up to 50% RAP with optional RAP bins.

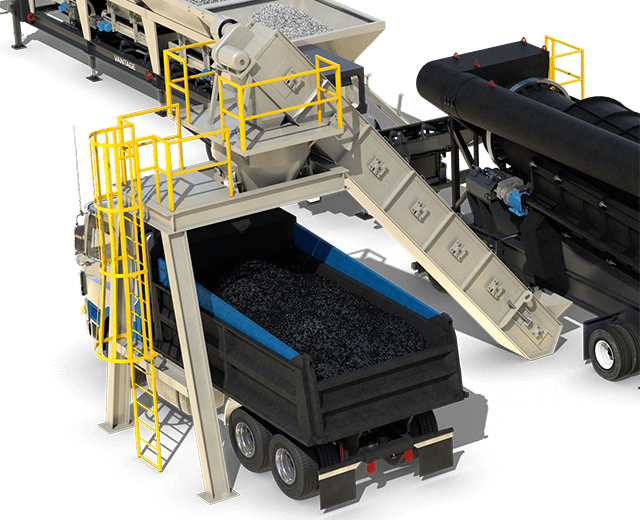

Drag Conveyor and Batcher
From the standard, manually-erected drag conveyor and batcher to the optional self-erect drag and silo, the Voyager 140 is ready to get mix to the road. Each component is designed to maximize mix quality by eliminating the potential for mix segregation.

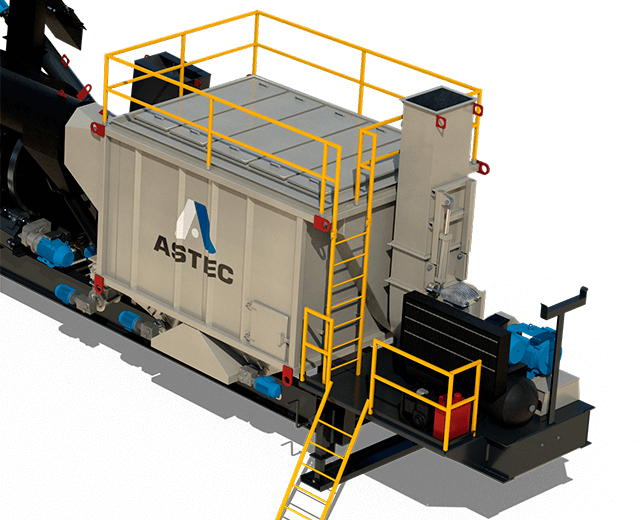

Air Filtration System
Pulse Jet Baghouse
35,800 m3/hr (21,125 CFM) Pulse Jet baghouse with 260 Aramid bags collect fines and ensure that the Voyager V140 effectively minimizes environmental impact. The compact design maximizes portability.
