Peterson 5700D Horizontal Grinder

Overview

The 5700D Horizontal Grinder is designed for high-volume producers with very demanding end-product specifications.

Powered by a Tier II or Tier IV Caterpillar C27 1050HP (772 kW) engine, or an optional Tier II or Tier IV 1125hp (839 kW) C32 engine, the 5700D provides the highest power to weight ratio of any Peterson grinder.

At 82,000 pounds (37195 kg), the 5700D is designed for operations requiring high production and frequent moves between jobs. With a feed opening of 60 x 40 inches (152 x 102 cm) combined with Peterson’s high lift feed roll, 5700D Horizontal Grinder can readily reduce a wide range of material including stumps.

Applications

  • Compost

    Compost is decomposed organic matter derived from either a single source material or blended for specific application performance. Materials can include garden debris, kitchen scraps, manure or yard and lawn waste.
    Learn More

  • Orchard Clearout

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear commercial orchards for plantation rotation.
    Learn More

  • Wood Waste Recycling

    Peterson horizontal grinders are ideal for wood waste recycling applications. Because of the limited options to reuse building materials or wood recycled from demolition efforts, reduced wood waste can be recycled to make biomass, bedding material, mulch, or compost.
    Learn More

  • Municipal Solid Waste (MSW) Recycling

    Peterson horizontal grinders with the R+ package are an ideal tool for MSW reduction. R+ equipped Peterson horizontal grinders turn the rotor at a slower speed and have heavier duty internal components to handle the tramp metal often found in this application.
    Learn More

  • Salvage Timber

    Peterson horizontal grinders and drum chippers are an ideal tool for processing damaged wood from private timberlands, national forests, pulpwood plantations, and hazardous trees near roadways and other infrastructure.
    Learn More
  • Astec Peterson 5710D Horizontal Grinder making compost from green waste in Hawaii with an loading excavator.

    Organic Recycling

    Peterson Horizontal Grinders are an ideal tool for quickly and effectively reducing green waste into mulch or compost products.
    Learn More

  • Construction & Demolition Recycling

    Construction and demolition recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, gypsum, plastic, metal, wire, roofing shingles, asphalt, concrete and more. By separating and recycling different materials it reduces landfill waste and associated costs, while also producing value-added products.
    Learn More

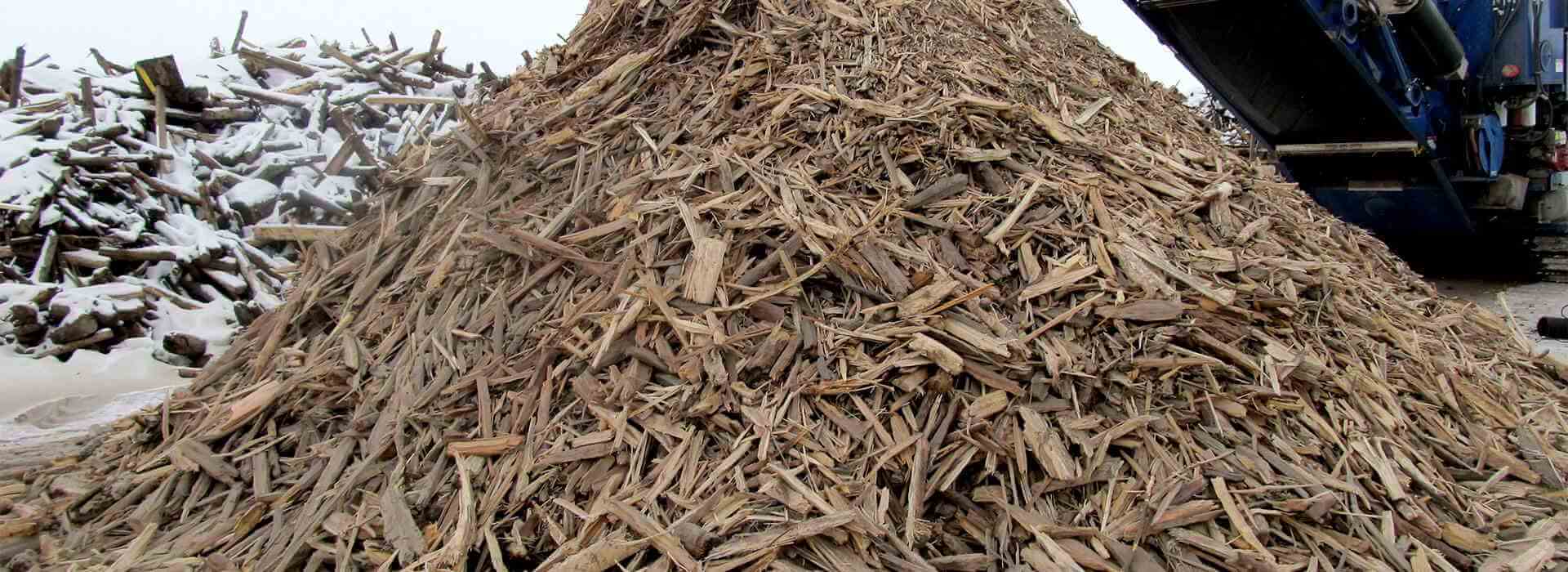

  • Railroad Tie Recycling

    The creosote treated railroad ties are a valuable energy source, once they have been broken down into a manageable and consistent size.
    Learn More

  • Natural Disaster Cleanup

    Peterson horizontal grinders are ideal for storm debris cleanup. Our horizontal grinder design allows for easy feeding of odd-shaped material, without the dangers, found in typical tub grinder designs.
    Learn More

  • Mulch

    Astec machines can help you create, screen, stack, and deliver your final mulch product. We’ll help you add value to your mulch products and services from your feedstock all the way to delivery.
    Learn More

  • Land Clearing

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear right-of-ways for pipelines, power lines, or other commercial developments.

    Learn More
  • Peterson 4310B Drum Chipper chipping whole trees making microchips and being loaded by a grapple excavator

    Biomass

    Biomass is an energy source derived from renewable and sustainable organic materials to create electricity or other forms of power. Horizontal grinders and drum chippers are highly productive machines for creating biomass.
    Learn More

  • Playground Chips

    Playground material and engineered wood fiber is can be created with Peterson grinders or chippers and pneumatically delivered with Peterson blower trucks.
    Learn More

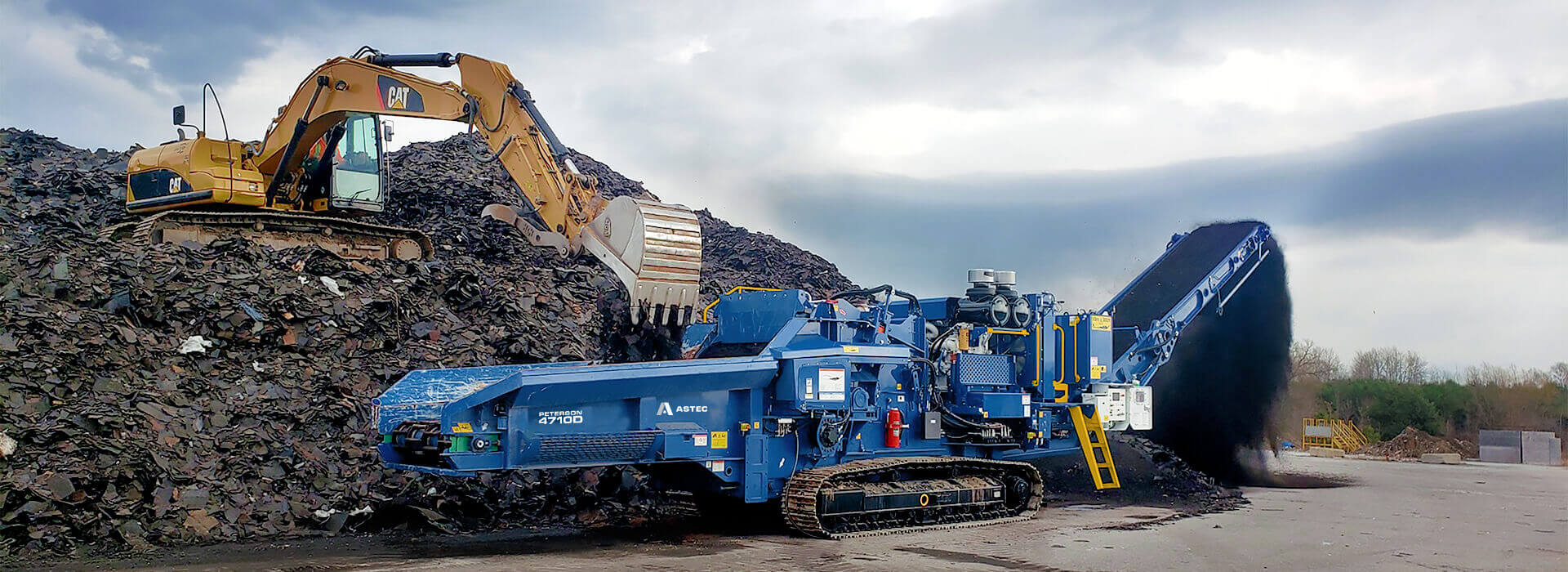

  • Asphalt Shingle Recycling

    Asphalt shingle grinding is the process of making recycled asphalt shingles (RAS). RAS is produced by grinding asphalt roofing shingles to a small spec, generally under 3/8” to salvage the valuable asphalt and sand.
    Learn More

Downloads

Key Specifications

SpecificationsSpecifications
60' 5" 1842 cm
11' 11" 372 cm
17' 3" 526 cm
10' 1" 307 cm
47' 10" 1547 cm
12' 8" 386 cm
47' 3" 1437 cm
10" 27 cm
60" 152 cm
5' 2" 157 cm
34' 4" 1046 cm
8' 0" 243 cm
3' 4" 101 cm



Dimensions Specifications
Operating Length 60' 5"
Operating Width 11' 11"
Operating Height 17' 3"
Travel Width 10' 1"
Travel Length 47' 10"
Travel Height 12' 8"
Frame Length 47' 3"
Ground Clearance 10"
Axle Spacing 60"
Front to 5th Wheel 5' 2"
5th Wheel to Center Axle 34' 4"
5th Wheel Clearance Radius 8' 0"
5th Wheel Height 3' 4"



Weights Specifications
Machine Weight37,195 kg
5th Wheel Weight 12,700 kg
Tridem Axle Weight 24,494 kg



WeightsSpecifications
Machine Weight82,000 lbs
5th Wheel Weight28,000 lbs
Tridem Axle Weight54,000 lbs



Rotor Specifications

Rotor Width 161 cm
Rotor Diameter 102 cm
Rotor Shaft Size 168 mm @ bearing, 191 mm @ center
Bit Size 76 x 165 mm
Number of Bits 20 drum rotor, 18 pinned rotor
Rotor Speed from 1829 to 3658 mpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 2.6m²
Grate Coverage 182º
Grate Thickness 32 mm



Rotor Specifications
 5700D
Rotor Width 64"
Rotor Diameter 40"
Rotor Shaft Size 6.6" @ bearing, 7.5" @ center
Bit Size 3" x 6.5"
Number of Bits 20 drum rotor, 18 pinned rotor
Rotor Speed from 6000 to 12000 fpm
Rotor Specifications
Number of Grate Sections 4
Total Grate Area 28 ft²
Grate Coverage 182º
Grate Thickness 1.25"



PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 772 kW
Caterpillar C32 Tier IV, 839 kW
Caterpillar C27 Tier II, 772 kW export only



ClutchPT Tech HPT015FX
Fuel Tank Capacity1287 L
Main Hydraulic Tank Capacity371 L
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 1050 hp
Caterpillar C32 Tier IV, 1125 hp
Caterpillar C27 Tier II, 1050 hp export only
ClutchPT Tech HPT015FX
Fuel Tank Capacity340 gallons
Main Hydraulic Tank Capacity98 gallons
System Controls
Adaptive Control System

Radio Remote

Peterson+ Analytics
Model Specification
Feed Opening (w x h) 152 x 102 cm
Hopper Width 152 cm
Feed Conveyor Width 152 cm
Feed Chain 4 sections, full hopper width
Compression Roll Diameter 91 cm
Land Clearing Mode 152 x 140 cm



Model Specification
Feed Opening (w x h) 60" x 40"
Hopper Width 60"
Feed Conveyor Width 5' 0"
Feed Chain 4 sections, full hopper width
Compression Roll Diameter 36"
Land Clearing Mode 60" x 55"



Discharge Specifications
Discharge Conveyor Width137 cm
Discharge Conveyor Height 508 cm
Conveyor Speed 152, 183, 213 mpm



DischargeSpecifications
Discharge Conveyor Width54"
Discharge Conveyor Height16' 8"
Conveyor Speed500, 600, 700 ft/min



Production VolumeWeight
Greenwaste383 m³125 tonnes
Scrap Board 452 m3 82 tonnes

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

ProductionVolumeWeight
Greenwaste501 yd³ 138 US tons
Scrap Board591 yd³ 90 tons

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Options5700D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



Options5700D
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Export kit
CE Certification
Feed Tailgate
Cold Weather Kit
Air Compressor
R+ Package
ASG Package
Flat Feed Deck
Liquid Injection System
Tow Dolly
Extra-Long Discharge Conveyor



UNITS:

All specifications subject to change without notice.

Features

  • A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process

    3-Stage Grinding Process

    The powerful up-turn 3-stage grinding process provides better fracturing of material and a more consistent product, giving you just the product your buyers want.

    A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process
  • A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

    Impact Release System Protects Your Investment

    The air bags on the patented Astec Impact Release System provide uniform grinding and protection from contaminated feedstock, a feature unique to Peterson grinders.

    A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

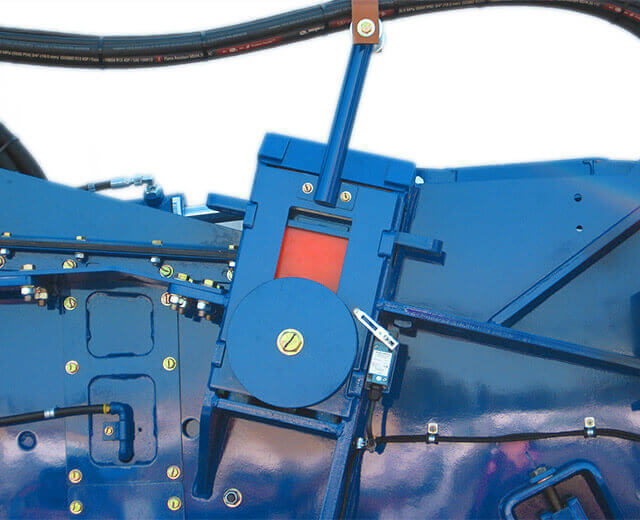

  • The Second Line of Defense: The Impact Cushion System

    Urethane cushions and shear pins help protect the mill from catastrophic damage in the event of a severe impact from contaminants in the feedstock.
