Hybrid Horizontal Shaft Impactors

Overview

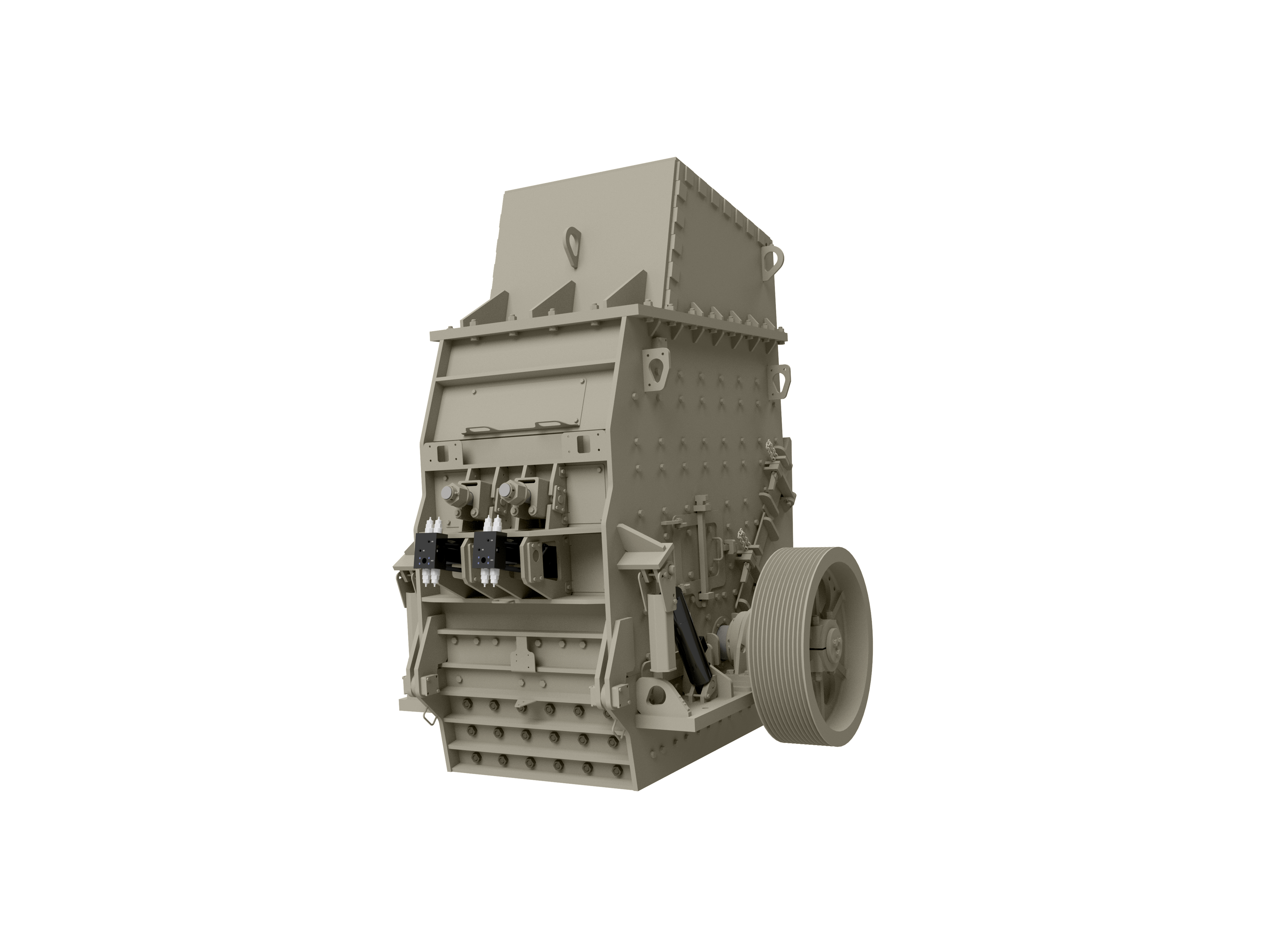

With over 40 years of field-proven results, the Astec 5054 Hybrid Horizontal Shaft Impactor (HSI) consistently provides profitable impact performance.

The solid rotor design performs equally well in hard rock applications and in asphalt and concrete recycling operations. Available in either stationary or portable configurations, the 5054 Hybrid HSI offers application flexibility, increased capacity and a more consistent product.

Applications

  • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

    Recycled Asphalt Pavement

    The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
    Learn More
  • Sand & Gravel

    Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
      Learn More
    • Aggregates

      There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
        Learn More
      • Concrete Recycling

        Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
          Learn More
        • Construction Aggregates

          Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Construction and Demolition (C&D) Recycling

            Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
            Learn More
          • Pioneer® jaw crusher in concrete recycling application

            Crushed Stone

            Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Diesel Power Required (kW) Electric Power Required (kW) Feed Size (mm) Capacity (MTPH)
            5054 336 224 1,016 454-846
            Model Diesel Power Required (hp) Electric Power Required (hp) Feed Size (in) Capacity (TPH)
            5054 440 300 40 500-900
