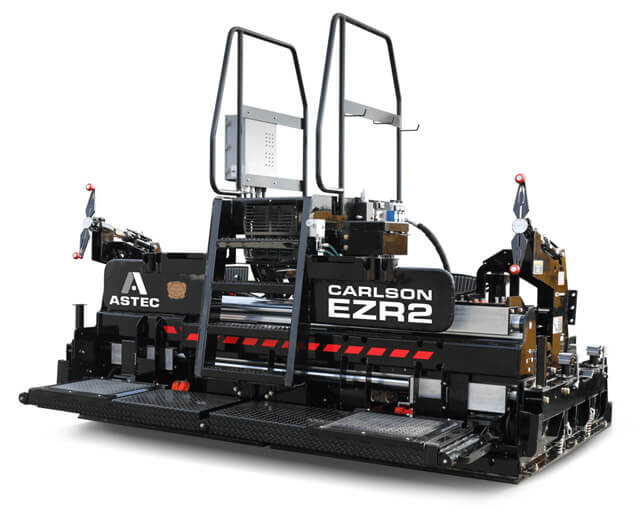

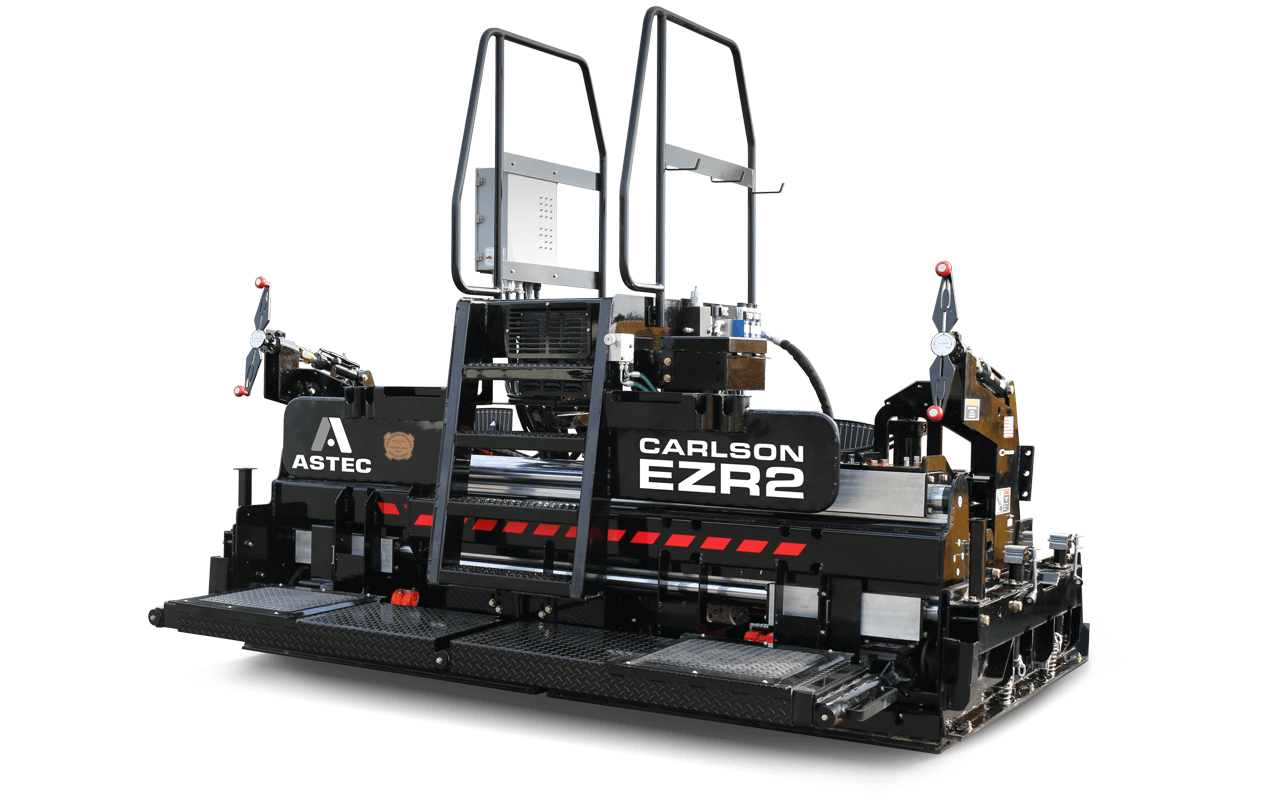

EZR2 Highway Class Screed

Overview

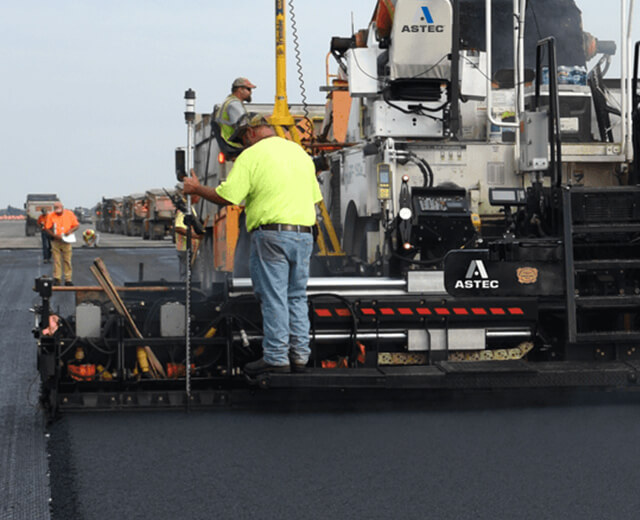

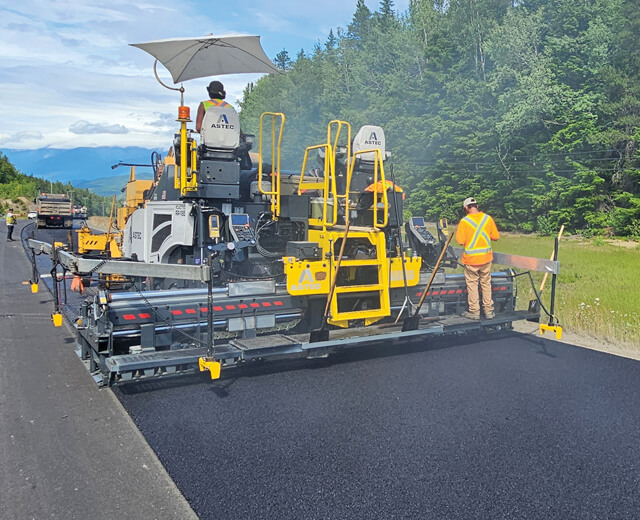

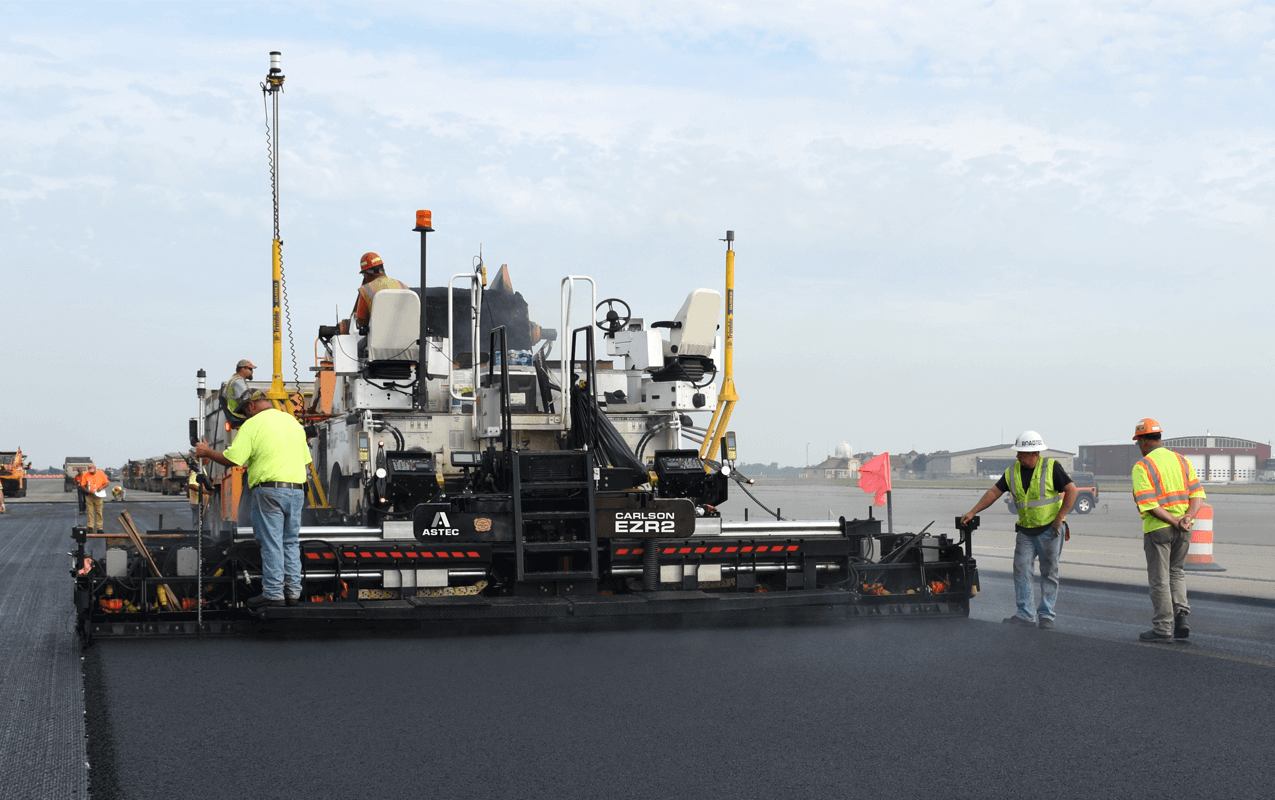

The EZR2 achieves flawless paving widths up to 22ft in the 8-foot model and 30ft in the 10-foot, the EZR2 combines many of Carlson’s industry-leading screed features into a rear-mount screed platform. The EZR2 can be mounted to all current 8-foot and 10-foot North American models offered by the major paver manufacturers, as well as able to retrofit to nearly any previous 8-foot or 10-foot North American highway-class paver.

Applications

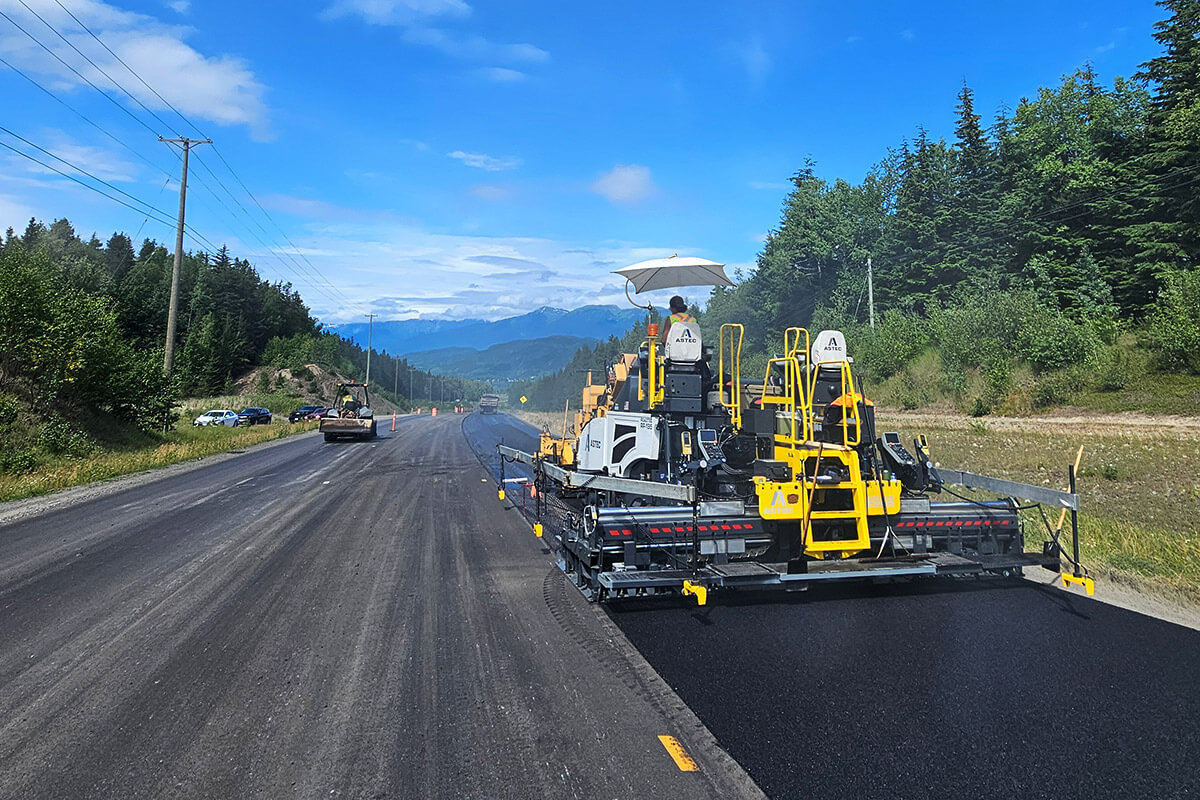

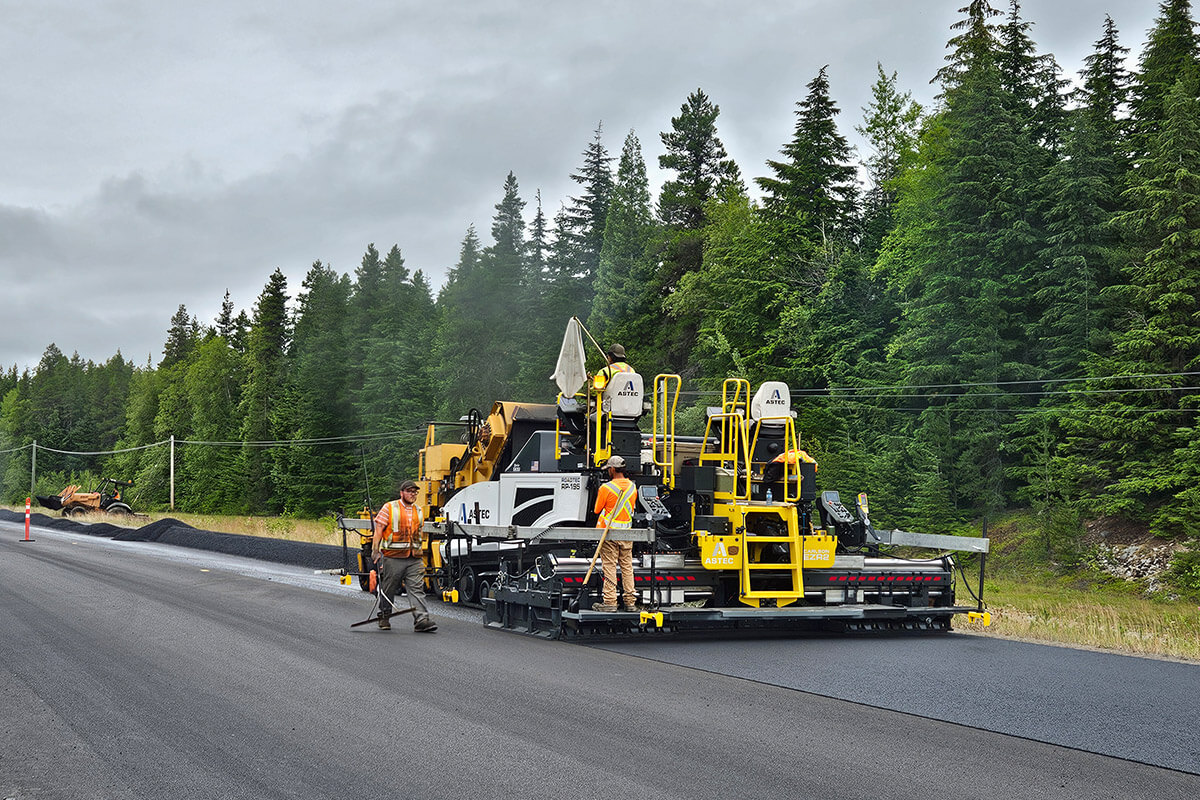

Highway Paving

Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.
Learn More

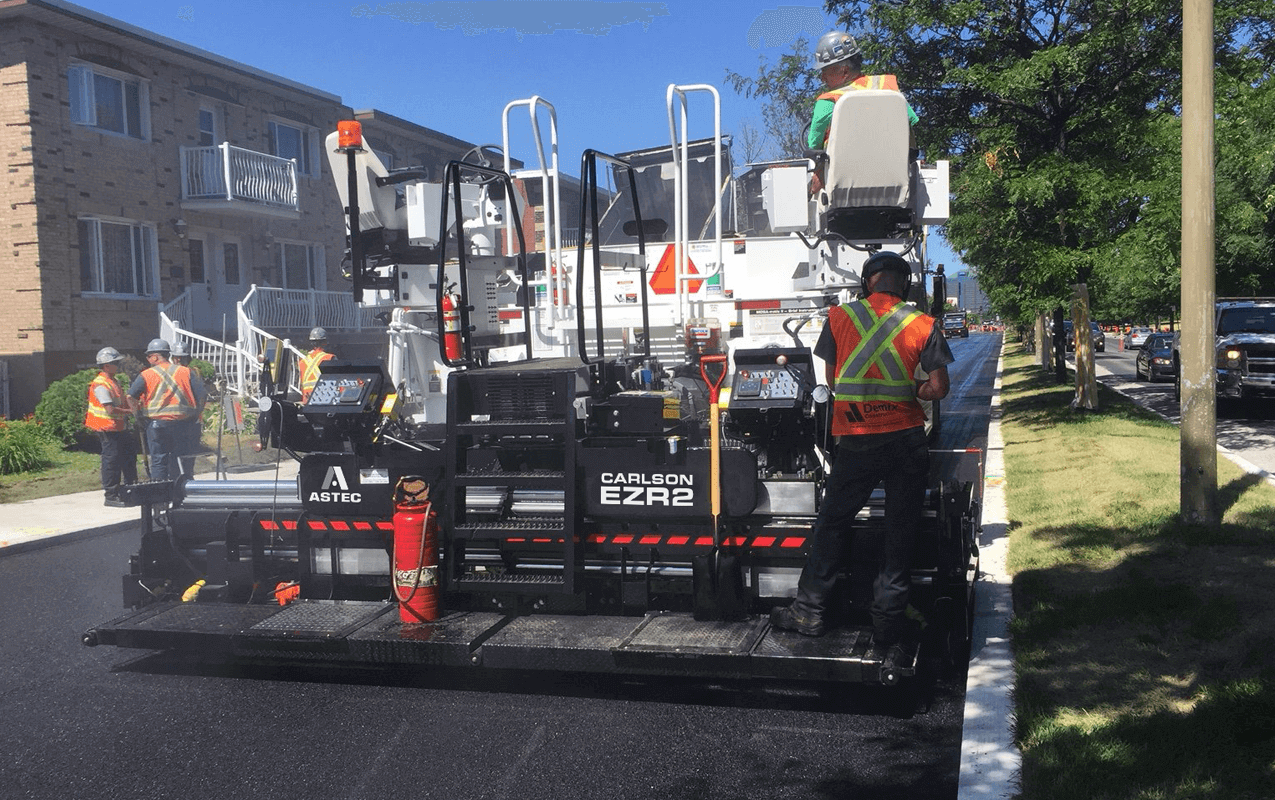

Residential Paving

Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range. Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
Learn More
Motor Sports Paving

Motor Sports Paving requires nonstop paving, precise mat thickness, and consistent paving practices. The HMA mixture needs to be consistent in terms of temperature and consistency. The resulting pavement must be able to withstand massive stress.
Learn More

Key Specifications

Components	Specifications
Standard Pave Width	2.43m to 4.72m
Maximum Pave Width	6.7m
Vibration	4 Motors @ 0-3000vpm
Power Crown	76.2mm Crown/25mm Invert
Maximum Extension Slope	12% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	3447kg
Screed Depth (w/Endgates)	2.43m
Screed Plate Depth	508mm
Walkway Depth	521mm
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	8ft to 15.5ft
Maximum Pave Width	22ft
Vibration	4 Motors @ 0-3000vpm
Power Crown	3in Crown/1in Invert
Maximum Extension Slope	12% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	7,600lbs
Screed Depth (w/Endgates)	8ft
Screed Plate Depth	20in
Walkway Depth	20.5in
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	3.05m to 5.94m
Maximum Pave Width	9.14m
Vibration	4 Motors @ 0-3000vpm
Power Crown	76.2mm Crown/25mm Invert
Maximum Extension Slope	12% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	3754kg
Screed Depth (w/Endgates)	2.53m
Screed Plate Depth	508mm
Walkway Depth	521mm
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	10ft to 19.5ft
Maximum Pave Width	30ft
Vibration	4 Motors @ 0-3000vpm
Power Crown	3in Crown/1in Invert
Maximum Extension Slope	12% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	8,275lbs
Screed Depth (w/Endgates)	8.3ft
Screed Plate Depth	20in
Walkway Depth	20.5in
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

UNITS:

All specifications subject to change without notice.

Features

Carlson Safety Edge

The patented Carlson Safety Edge is the contractor’s choice for creating accurate, 30º extruded edges for safer, longer lasting roadways. The only endgate mounted Safety Edge builder on the market approved by the Federal Highway Administration (FHWA), easily attach to nearly any North American front mount, rear-mount, or fixed width platforms.
LED Blade Light

Roadway work zones are dangerous, and during nighttime operations those hazards can be amplified. The LED Blade Light is the industry’s original LED directional lighting system for mobile equipment. Combining high output illumination with a low profile, directional platform to enhance worker, operator, and motorist safety on nighttime projects. Eliminating glare, shadows and excessive heat, the LED Blade Light.
Joint Density Attachments

Poor density at the longitudinal joint can drastically reduce the lifespan of roadways and can even cause premature failure. Helping to maximize roadway lifecycle, Carlson introduces the 4in High Density Bolt-on and Sideload Endgate Attachment. Available exclusively for Carlson front- and rear-mount screeds, Carlson’s Longitudinal Joint Density Attachments work in unison to produce higher density figures without the need of extra material, pie cutters or stepped joints.
Tapered Notch

Creating safer work zone transitions from existing roadway surface to the pavement, the Carlson Tapered Notch utilizes easily accessible adjustment points for on-the-fly adjustability. Available in 12” and 18” widths. Comes standard with electric heating elements and Y-cables for accessory power.

Two models of compaction sleds can be paired with the Tapered Notch.
• Small Sled, perfect for berm compaction and small applications
• Heavy Sled, able to ballast up to 400 lbs with adjustable 0-3000 vpm eccentric weight vibration.
Bolt-On Extensions

Helping contractors achieve award winning mat quality at wide widths with their front- and rear-mount screeds, Carlson’s wide array of heated bolt-on extensions lead the industry in ease of use and paving performance. Available exclusively for its screed platforms, all of Carlson’s bolt-on’s are constructed of heavy-duty materials, state-of-the-art heating elements, and Y-cables for longer attachment lifecycle, enhanced paving performance and accessible accessory power.
Power Tunnel Kit

The Carlson Hydraulically extendable tunnel extensions are American made and built to last with durable steel parts that are easy to replace if damaged. Its great design allows for easy installation. Since the Carlson tunnel is installed behind the paver instead of on the side it is less likely to be damaged while not in use. It is compatible with most major make and model pavers.
