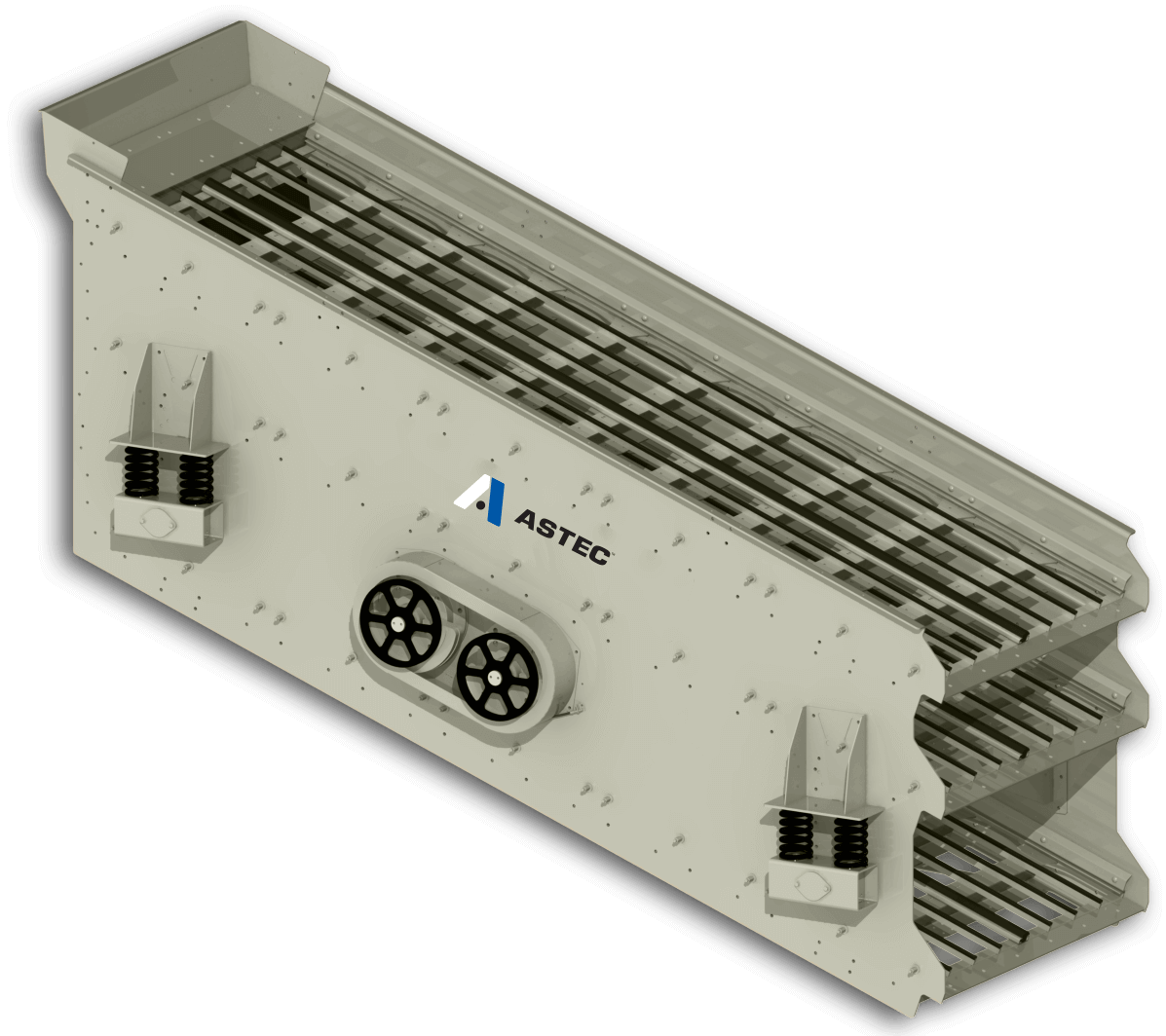

Vibro-King TL® Incline Screens

Overview

The Vibro-King TL® approach to screen design creates outstanding performance and longevity.

From heavy-duty scalping of coarse stone to fine sizing of finished products in wet or dry applications, the Vibro-King TL® series is feature-packed and built to deliver low-cost performance.

Applications

  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Concrete Recycling

      Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
        Learn More
      • Construction

        Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
        Learn More
      • Construction Aggregates

        Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More
        • Pioneer® jaw crusher in concrete recycling application

          Crushed Stone

          Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

            Recycled Asphalt Pavement

            The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
            Learn More
          • Sand & Gravel

            Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Number of Decks Number of Shafts Width (mm) Length (mm) Power Required (kW) Bearing Size (mm) Weight (kg)
            8202-32-2 2 2 2,430 6,100 19 x 2 160 14,494
            8203-32-2 3 2 2,430 6,100 22 x 2 160 17,120
            8242-32-2 2 2 2,430 7,320 22 x 2 160 14,815
            8243-32-2 3 2 2,430 7,320 30 x 2 160 18,875
            Model Number of Decks Number of Shafts Width (ft) Length (ft) Power Required (hp) Bearing Size (mm) Weight (lb)
            8202-32-2 2 2 8 20 25 x 2 160 31,954
            8203-32-2 3 2 8 20 30 x 2 160 37,744
            8242-32-2 2 2 8 24 30 x 2 160 32,662
            8243-32-2 3 2 8 24 40 x 2 160 41,613
            Models Number of Decks Width (mm) Length (mm) Power Required (kW) Weight (kg) Bearing Size (mm)
            5' Screens 2 - 4 1,520 3,660 - 4,880 19 - 30 6,103 - 9,613 130 - 160
            6' Screens 2 - 4 1,830 4,880 - 6,100 19 - 30 x 2 6,742 - 13,524 130 - 160
            7' Screens 2 - 4 2,130 6,100 15 x 2 - 30 x 2 11,979 - 18,583 130 - 200
            8' Screens 2 - 4 2,430 6,100 - 7,320 19 x 2 - 37 12.865 - 22,614 130 - 200
            Models Number of Decks Width (ft) Length (ft) Power Required (hp) Weight (lb) Bearing Size (mm)
            5' Screens 2 - 4 5 12 - 16 25 - 40 13,455 - 21,192 130 - 160
            6' Screens 2 - 4 6 16 - 20 25 - 40 x 2 14,863 - 29,865 130 - 160
            7' Screens 2 - 4 7 20 20 x 2 - 40 x 2 26,410 - 40,969 130 - 200
            8' Screens 2 - 4 8 20 - 24 25 x 2 - 50 28,363 - 49,855 130 - 200
