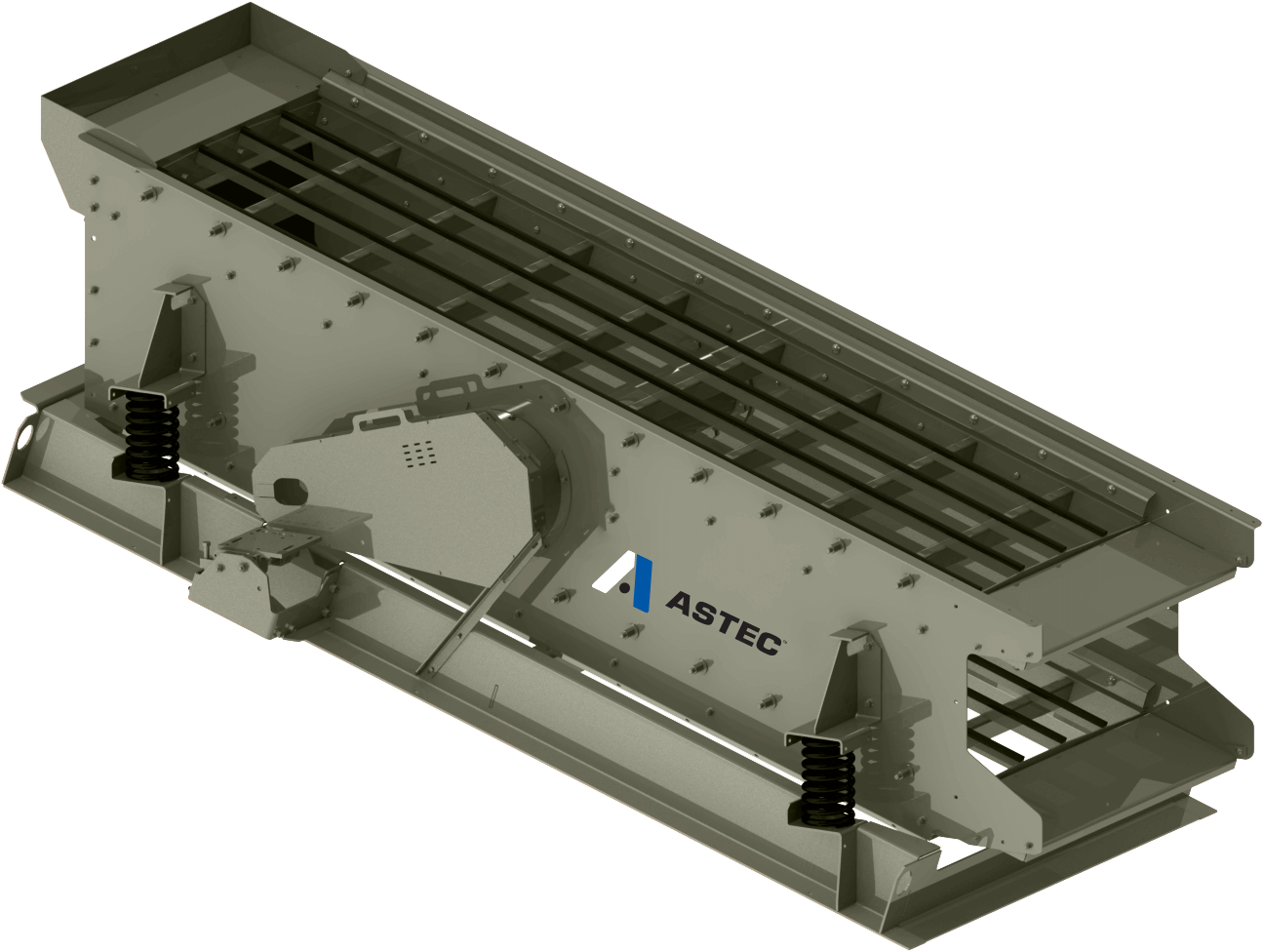

Valu-King® Incline Screen

Overview

The Valu-King® line-up of screens offers outstanding value with built-in standard features. Ideal for finish sizing, light-duty scalping or fitted with spray bars for rinsing operations.

Designed for long service life, the vibrator mechanism incorporates spherical roller bearings and grease lubrication.

Applications

  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Construction

      Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
      Learn More
    • Concrete Recycling

      Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
        Learn More
      • Construction Aggregates

        Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More
        • Pioneer® jaw crusher in concrete recycling application

          Crushed Stone

          Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

            Recycled Asphalt Pavement

            The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
            Learn More
          • Sand & Gravel

            Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Number of Decks Width (mm) Length (mm) Power Required (kW) Weight (kg) Bearing Size (mm)
            3061 1 910 1,830 3.7 398 61.9
            4081 1 1,220 2,430 5.5 1,955 90
            4082 2 1,220 2,430 5.5 2,073 90
            4083 3 1,220 2,430 7.5 2,300 90
            4101 1 1,220 3,050 7.5 2,132 90
            4102 2 1,220 3,050 7.5 2,291 90
            4103 3 1,220 3,050 11 2,826 90
            4121 1 1,220 3,660 7.5 2,331 90
            4122 2 1,220 3,660 7.5 2,545 90
            4123 3 1,220 3,660 11 3,379 110
            4141 1 1,220 4,270 7.5 2,540 90
            4142 2 1,220 4,270 7.5 2,753 90
            4143 3 1,220 4,270 11 3,710 110
            5121 1 1,520 3,660 7.5 2,449 90
            5122 2 1,520 3,660 11 2,699 90
            5123 3 1,520 3,660 11 3,633 110
            5141 1 1,520 4,270 11 2,681 90
            5142 2 1,520 4,270 15 2,994 90
            5143 3 1,520 4,270 15 4,032 110
            5161 1 1,520 4,880 15 3,134 110
            5162 2 1,520 4,880 15 3,488 110
            5163 3 1,520 4,880 19 4,413 110
            6161 1 1,830 4,880 19 3,475 110
            6162 2 1,830 4,880 19 3,878 110
            6163 3 1,830 4,880 22 4,831 110
            Model Number of Decks Width (ft) Length (ft) Power Required (hp) Weight (lb) Bearing Size (mm)
            3061 1 3 6 5 878 61.9
            4081 1 4 8 7.5 4,310 90
            4082 2 4 8 7.5 4,570 90
            4083 3 4 8 10 5,070 90
            4101 1 4 10 10 4,700 90
            4102 2 4 10 10 5,050 90
            4103 3 4 10 15 6,230 90
            4121 1 4 12 10 5,140 90
            4122 2 4 12 10 5,610 90
            4123 3 4 12 15 7,450 110
            4141 1 4 14 10 5,600 90
            4142 2 4 14 10 6,070 90
            4143 3 4 14 15 8,180 110
            5121 1 5 12 10 5,400 90
            5122 2 5 12 15 5,950 90
            5123 3 5 12 15 8,010 110
            5141 1 5 14 15 5,910 90
            5142 2 5 14 20 6,600 90
            5143 3 5 14 20 8,890 110
            5161 1 5 16 20 6,910 110
            5162 2 5 16 20 7,690 110
            5163 3 5 16 25 9,730 110
            6161 1 6 16 25 7,660 110
            6162 2 6 16 25 8,550 110
            6163 3 6 16 30 10,650 110
