Roadtec SP-200 Spray Paver

Overview

The SP-200 Spray Paver sprays tack and applies hot mix asphalt seconds later.

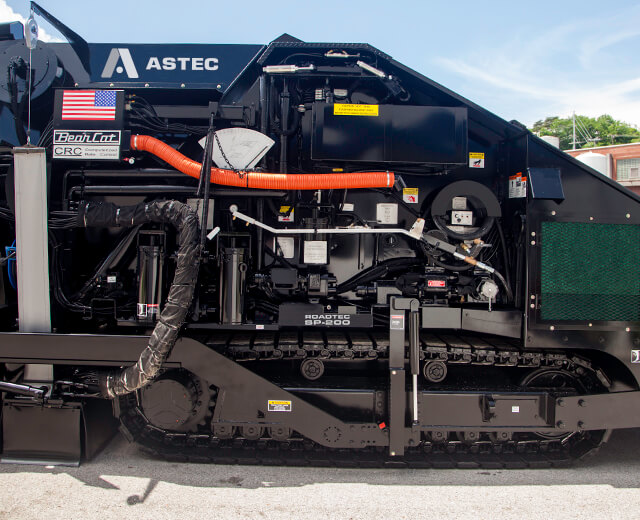

Combining spraying and laydown produces a high-quality mat with a strong bond between layers. A spray bar just in front of the paver’s auger distributes the liquid through computer-controlled, self-cleaning valves. An onboard microprocessor precisely controls the rate of flow. Valves can also be controlled manually and are arranged in sets of three, providing plenty of spray capacity so you can move fast. To cut down on refill stops, the SP-200 is equipped with a 2,100-gallon tack tank, the largest tank available on the market today.

Applications

  • Roadtec RP-190 highway class asphalt paver paving at night with a Roadtec Shuttle Buggy Material Transfer Vehicle

    Highway Paving

    Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.

    Learn More
  • Commercial Paving

    Commercial paving applications need machinery that can scale down the highway paver size without scaling down the power, functionality, performance, or efficacy. These pavers are able to pave hard-to-reach areas such as parking lots, traffic circles, and roundabouts to yield a quality mat without sacrificing productivity.

    Learn More
  • Motor Sports Paving

    Motor Sports Paving requires nonstop paving, precise mat thickness, and consistent paving practices. The HMA mixture needs to be consistent in terms of temperature and consistency. The resulting pavement must be able to withstand massive stress.
    Learn More

Features

Specifications

UNITS:
Feed SystemSpecifications
Hopper / cu. m
10 mt
Feed Control
Gravity Fed Hopper
Auger Diameter356 mm
Minimum Auger Height51 mm
Feed SystemSpecifications
Hopper / cu. ft.
11 tons
Feed Control
Gravity Fed Hopper
Auger Diameter14"
Minimum Auger Height2"
Engine Specifications
Engine MFG Cummins
ModelQSB 6.7
Max Power169 kW @ 1,800 rpm
Number of Cylinders6
Electrical System24



Engine Specifications
Engine MFG Cummins
ModelQSB 6.7
Max Power230 hp @ 1,800 rpm
Number of Cylinders6
Electrical System24



Weight & Dimensions
Specifications
Shipping length of tractor only
7 m
Shipping length with rear mount screed8.2 m
Shipping width3.46 m
Shipping height
3.12 m
Tractor Operating Width3.46 m
Deck Height2.04 m
Weight with rear-mounted screed29,483 kg



Weight & Dimensions
Specifications
Shipping length of tractor only
23'
Shipping length with rear mount screed27'
Shipping width11' 4"
Shipping height
10' 3"
Tractor Operating Width11' 4"
Deck Height6' 7"
Weight with rear-mounted screed65,000 lbs



Service Capacities Specifications
Fuel Tank Capacity549 ltr
Hydraulic Tank307 ltr
Product Tank7,949 ltr
Service Capacities Specifications
Fuel Tank Capacity145 gal
Hydraulic Tank81 gal
Product Tank2,100 gal
DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed0-51 mpm
Travel Speed0-5.8 kph
Steering Joystick
Controls movementHydraulic Swing
SuspensionSteel Track





DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed0-168 fpm
Travel Speed0-3.6 mph
Steering Joystick
Controls movementHydraulic Swing
SuspensionSteel Track
