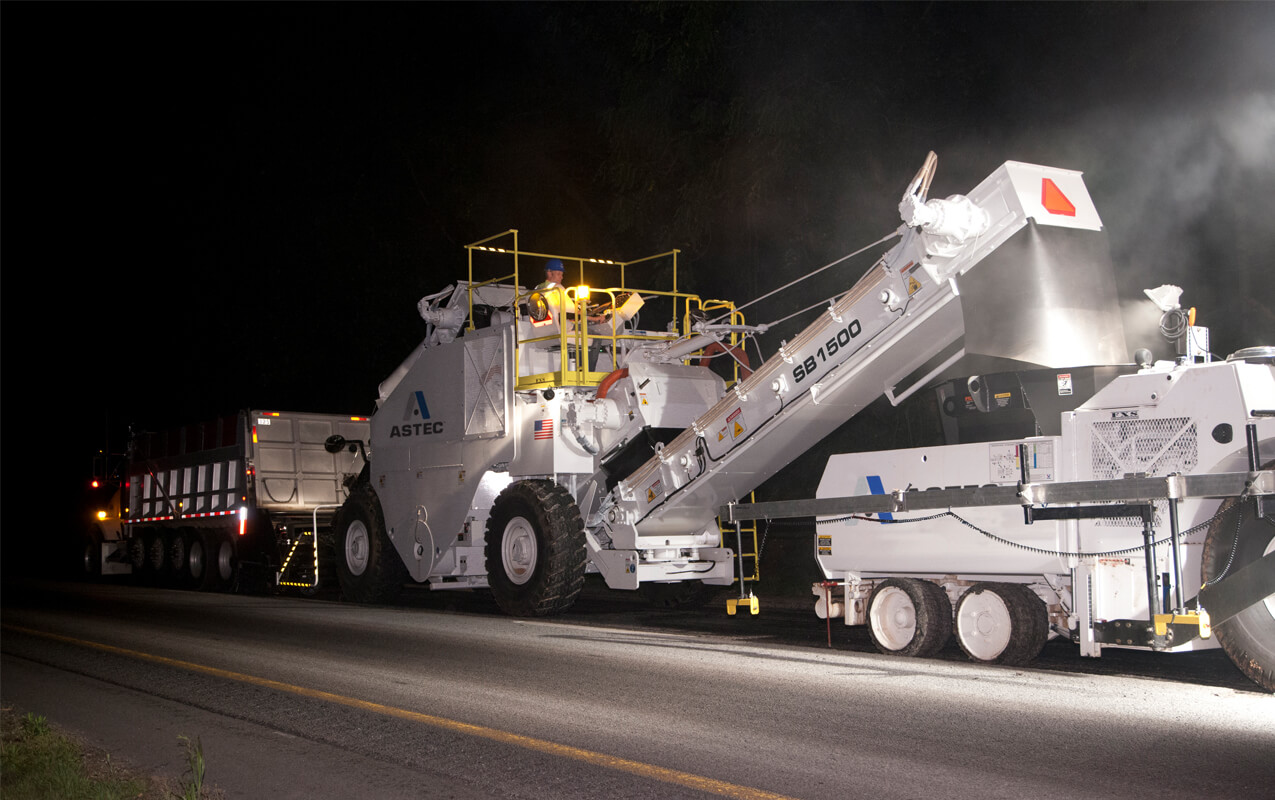

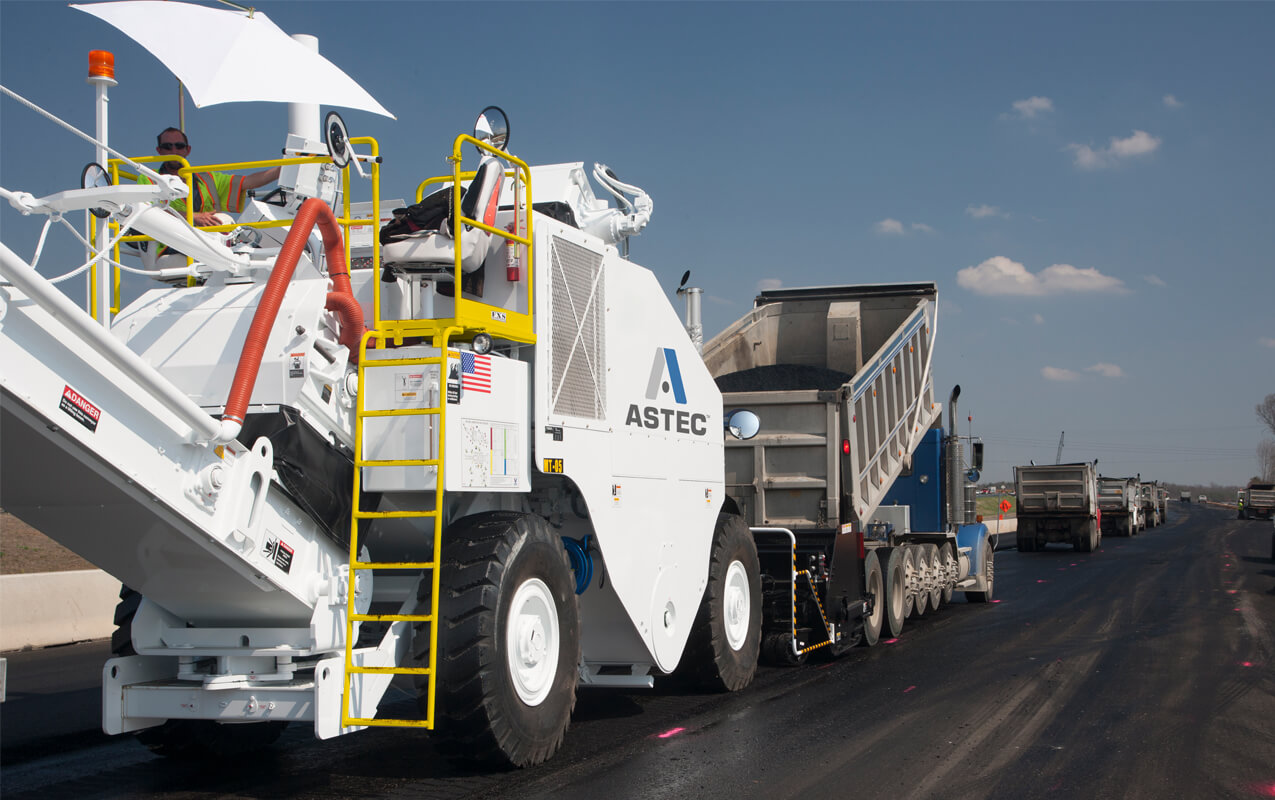

Roadtec SB-1500 Shuttle Buggy® Material Transfer Vehicle
The Shuttle Buggy 1500 material transfer vehicle (MTV) combines the benefits of a remixing material transfer with unmatched reliability.
Overview
The SB-1500 combines remixing with reliability
The Shuttle Buggy 1500 material transfer vehicle (MTV) combines the benefits of a remixing material transfer with unmatched reliability. Truck handling, temperature and material segregation all contribute to poor pavement quality. The Roadtec Shuttle Buggy MTV provides a solution for all of these issues by remixing material on-site while allowing the paver to operate at a constant speed without stopping.
Features
Shuttle Buggy Triple Pitch Augers
- Triple pitch augers located in the main storage hopper provide consistent and uniform mixing and blending
- Reduce the common issues of thermal and material segregation caused by single pitch augers
- Sized to remix the material while keeping the conveyor chain out of the mix
Clad Wear Liners
- Conveyor floor plates are clad to ensure a long wear life
- Durable enough to stand up to running hot mix asphalt all day, every day
Guardian Telematics
- Monitors machines in real time through a wireless signal
- Industry’s only live 2-way telematics system
- Includes software, on-machine viewing screens and wireless signal boosters to send and receive data in real time
- Intuitive Live Schematics™ let owners and technicians view electrical circuits in a simple, efficient layout with real time status of switches, valves and settings
Specifications
|
Imperial (in) |
Metric (mm) | |
|---|---|---|
|
Engine MFG |
Cummins QSL9 |
Cummins QSL9 |
|
Weight |
67240 lb |
30500 kg |
|
Dump Hopper Unloading Conveyor Capacity |
600 TPH |
544 MTPH |
|
Max Power |
300 hp @ 2,000 rpm |
224 kW @ 2,000 rpm |
|
Suspension |
18″ x 25″ High-Flotation Tire |
457 mm x 635 mm |
All specifications subject to change without notice.
