Roadtec RX-600 Cold Planer

Overview

The RX-600 is a 675 horsepower cold planer available with 4-track assemblies or optional 3-track assemblies.

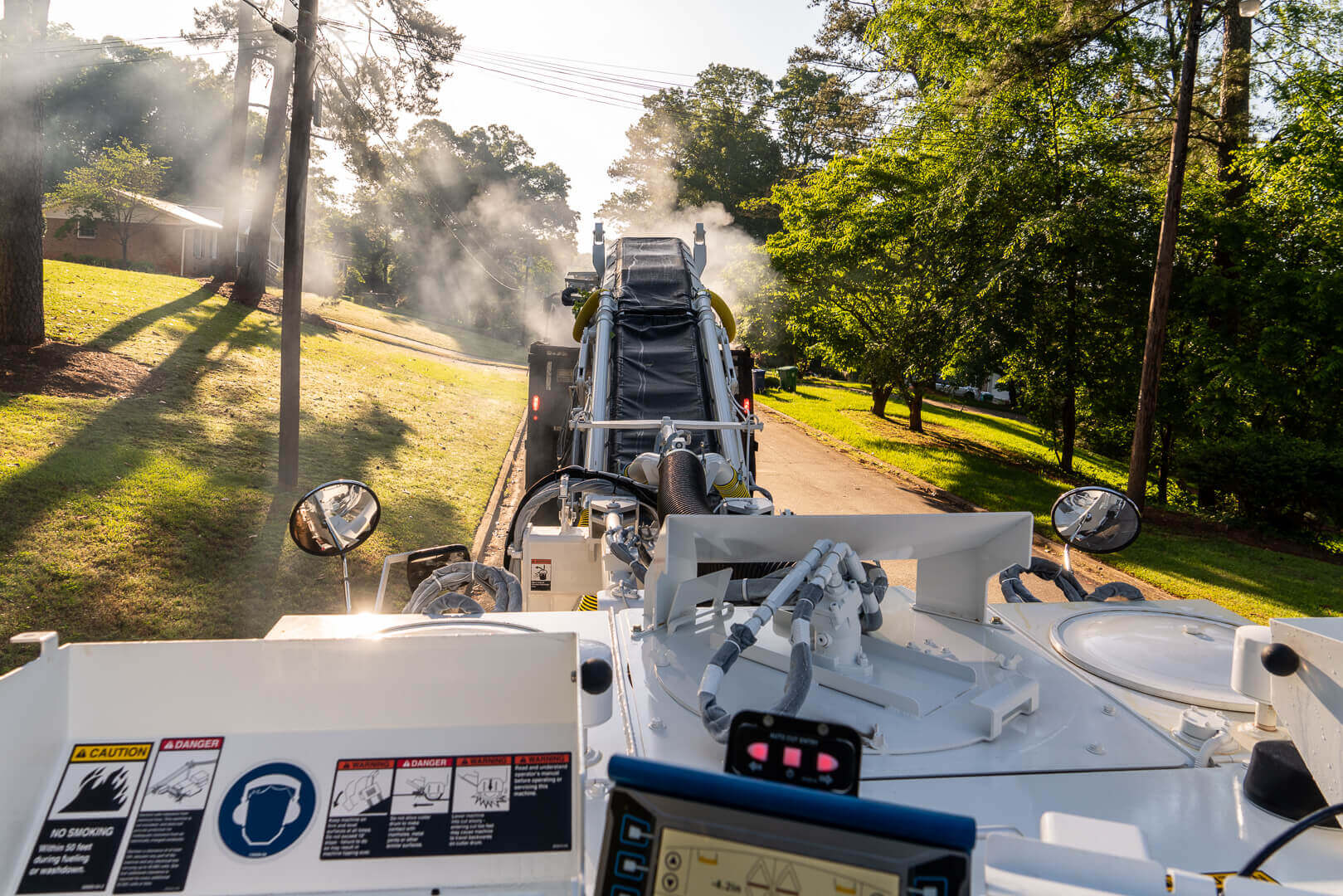

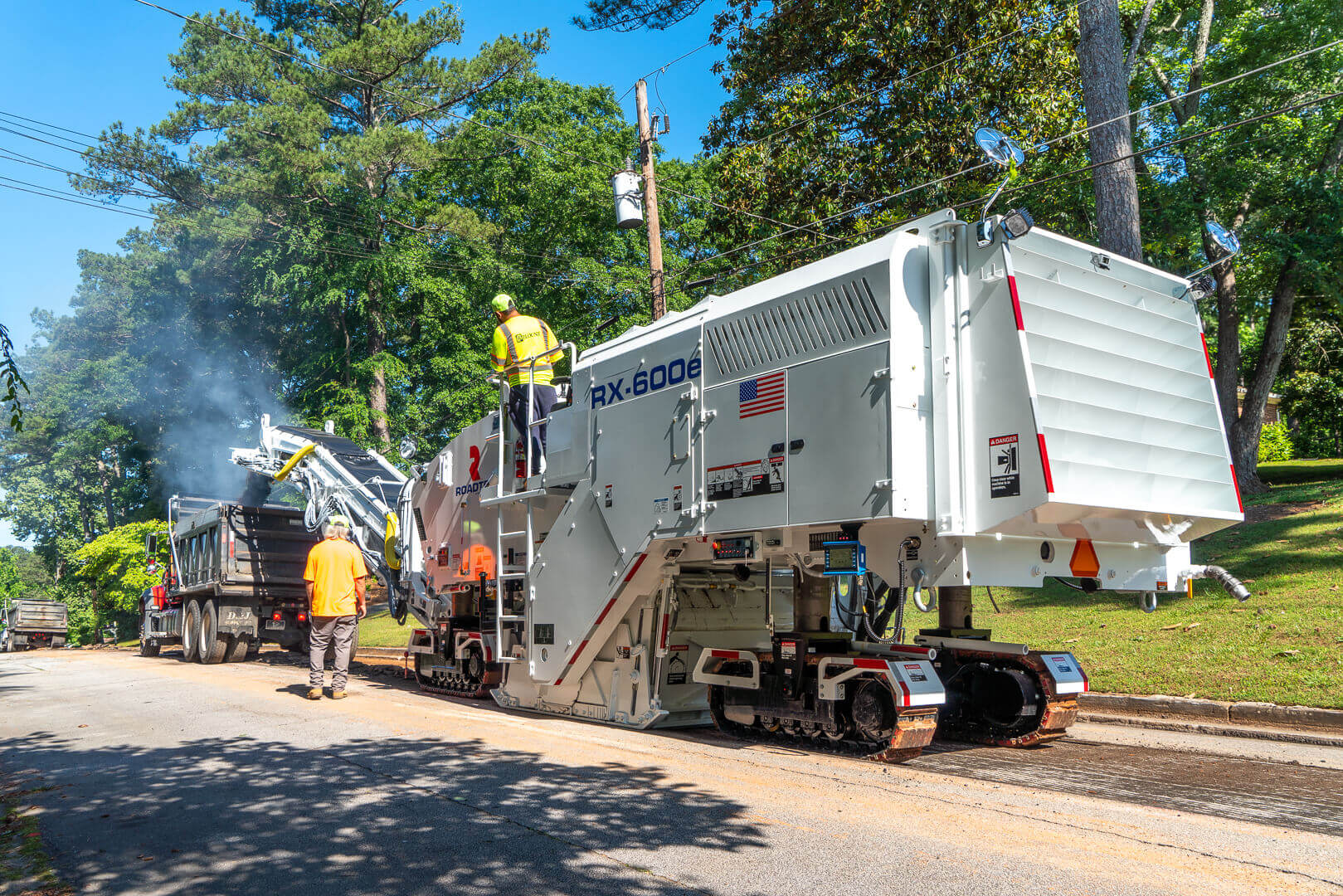

This lighter weight versatile machine cuts up to 13” (330 m) deep with a width of 6'3" (1.9 m), 6'7" (2 m), or 7'2" (2.184 m). The RX-600 is light and maneuverable for urban situations. A two-stage front load-out conveyor, with a 60° swing to either side, provides ample loading capacity.

Applications

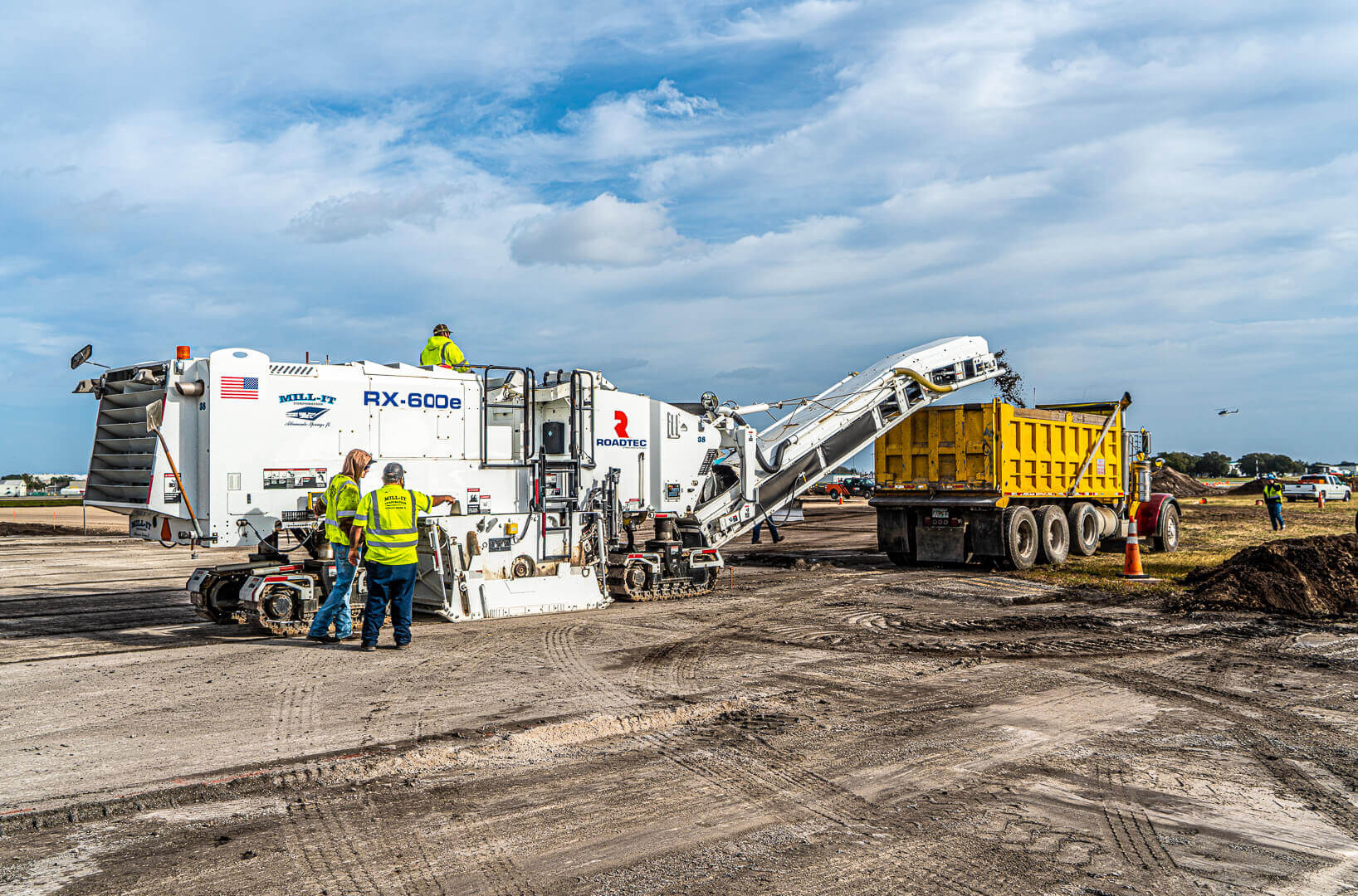

  • Roadtec RX-900 cold planer milling asphalt off road surface into truck

    Asphalt Milling

    Asphalt milling, also known as cold planing, is the removal of top layers of an asphalt surface to provide an improved surface for repaving. It is a cost-effective and sustainable process that can be repeated as needed.
    Learn More

Downloads

Features

Specifications

UNITS:
EngineSpecifications
Engine MFG Cummins
Model QSX-15
Max Power (Tier 4F) 503 kW @ 1,850 rpm
Number of Cylinders 6
Electrical System 24v





EngineSpecifications
Engine MFG Cummins
Model QSX-15
Max Power (Tier 4F) 675 hp @ 1,850 rpm
Number of Cylinders 6
Electrical System 24v





Weights & DimensionsSpecifications
Shipping Length (Conveyor Folded) 12,903 mm
Shipping Width 2,490 mm
Shipping Height 3,009 mm
Shipping Weight*27,469 kg (3-Track)
 28,794 kg (4-Track)

*1/4 tank fuel; no water, 2,184 mm cutter housing & drum



Weights & DimensionsSpecifications
Shipping Length (Conveyor Folded) 42’ 4”
Shipping Width 8’ 2"
Shipping Height 9’ 10”
Shipping Weight*60,560 lbs (3-Track)
 63,480 lbs (4-Track)

*1/4 tank fuel; no water, 86” cutter housing & drum



Service CapacitiesSpecifications
Fuel Capacity 946 ltr
Water Tank Capacity 3,028 ltr
Hydraulic Tank Capacity 341 ltr





Service CapacitiesSpecifications
Fuel Capacity 250 gal
Water Tank Capacity 800 gal
Hydraulic Tank Capacity 90 gal

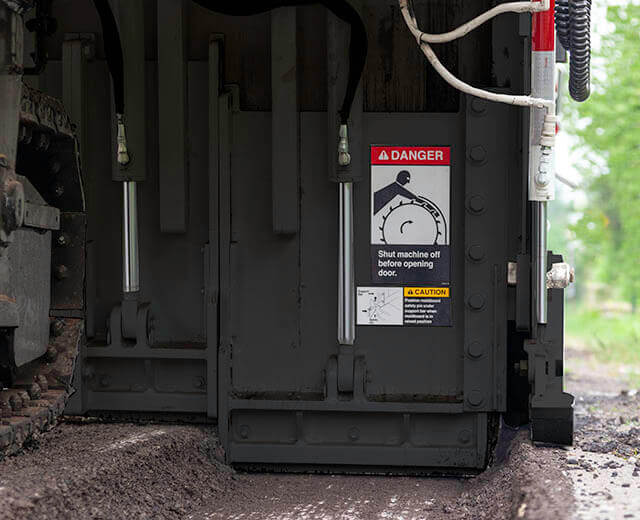

Cutter SystemSpecifications
Max Cut Depth 320 mm
Standard Cut Widths 2,007 mm and 2,184 mm





Cutter SystemSpecifications
Max Cut Depth 13"
Standard Cut Widths 79” and 86"





DriveSpecifications
Travel 0-5 kph
High working 50 mpm
Low working 34 mpm
Turning Radius 2,032 mm (4-Track)
 1,727 mm (3-Track)


DriveSpecifications
Travel 0-3.2 mph
High working 0-163 fpm
Low working 0-110 fpm
Turning Radius 6’ 8” (4-Track)
 5' 8" (3-Track)
