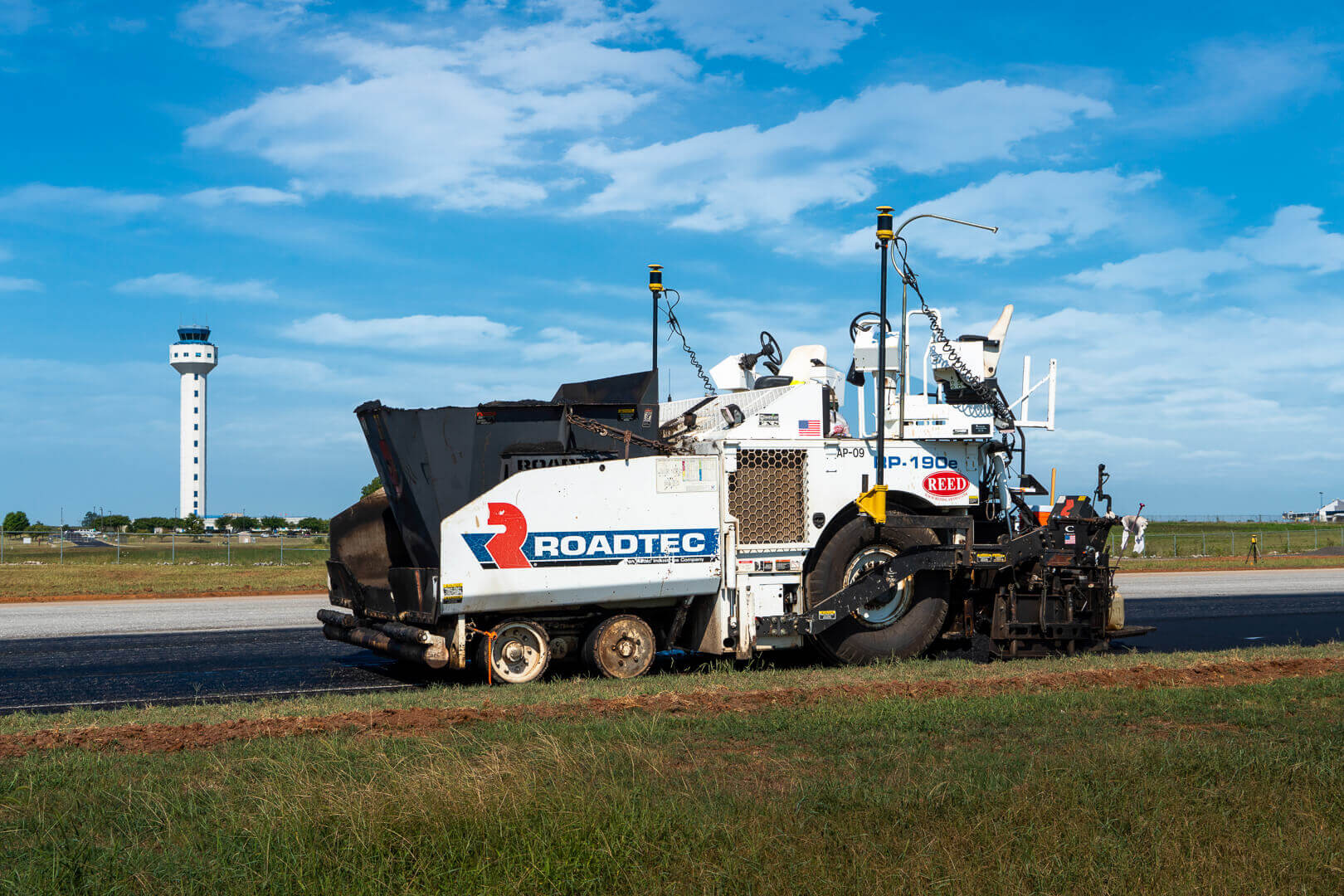

Roadtec RP-190 Highway Class Asphalt Paver

Overview

The RP-190 is a powerful, rubber-tired paver engineered for highway work.

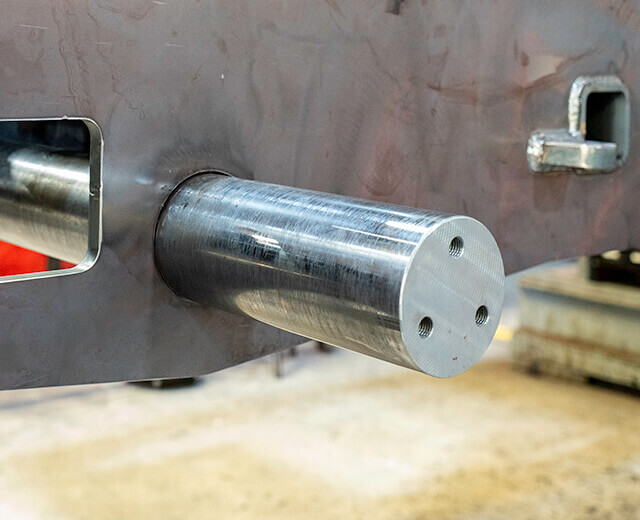

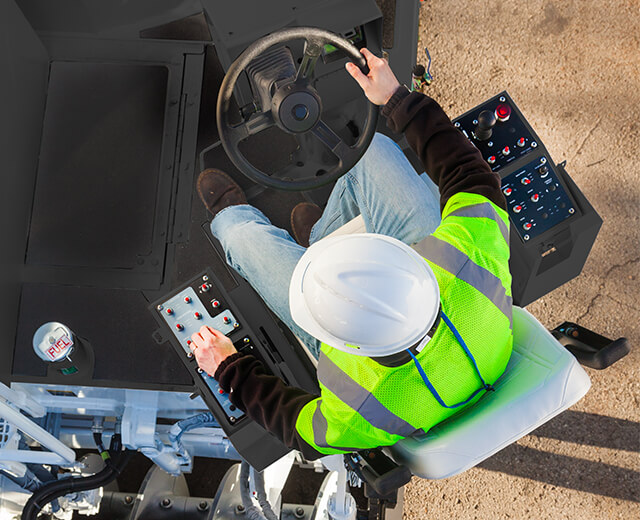

The RP-190 features Astec's exclusive anti-segregation design of the feed tunnel, discharge, and rear augers. The heavy-duty frame, solid front axle, and sturdy conveyors are engineered for durability. Seats of the dual operator stations can move hydraulically out beyond the sides of the machine to give the operator an excellent view down the sides of the machine. The four-way adjustable operator seats feature a ride control tension system for ultimate comfort.

Applications

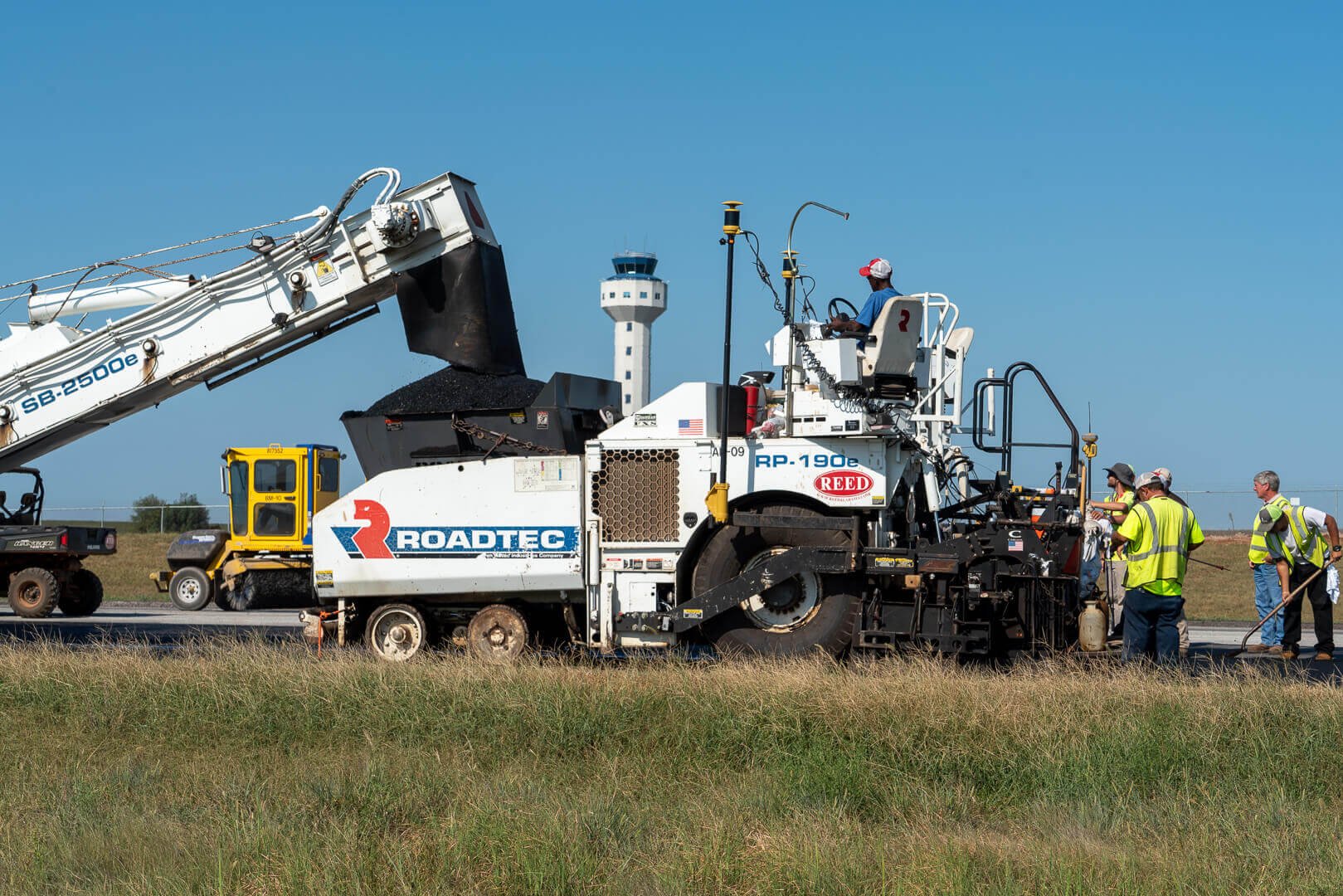

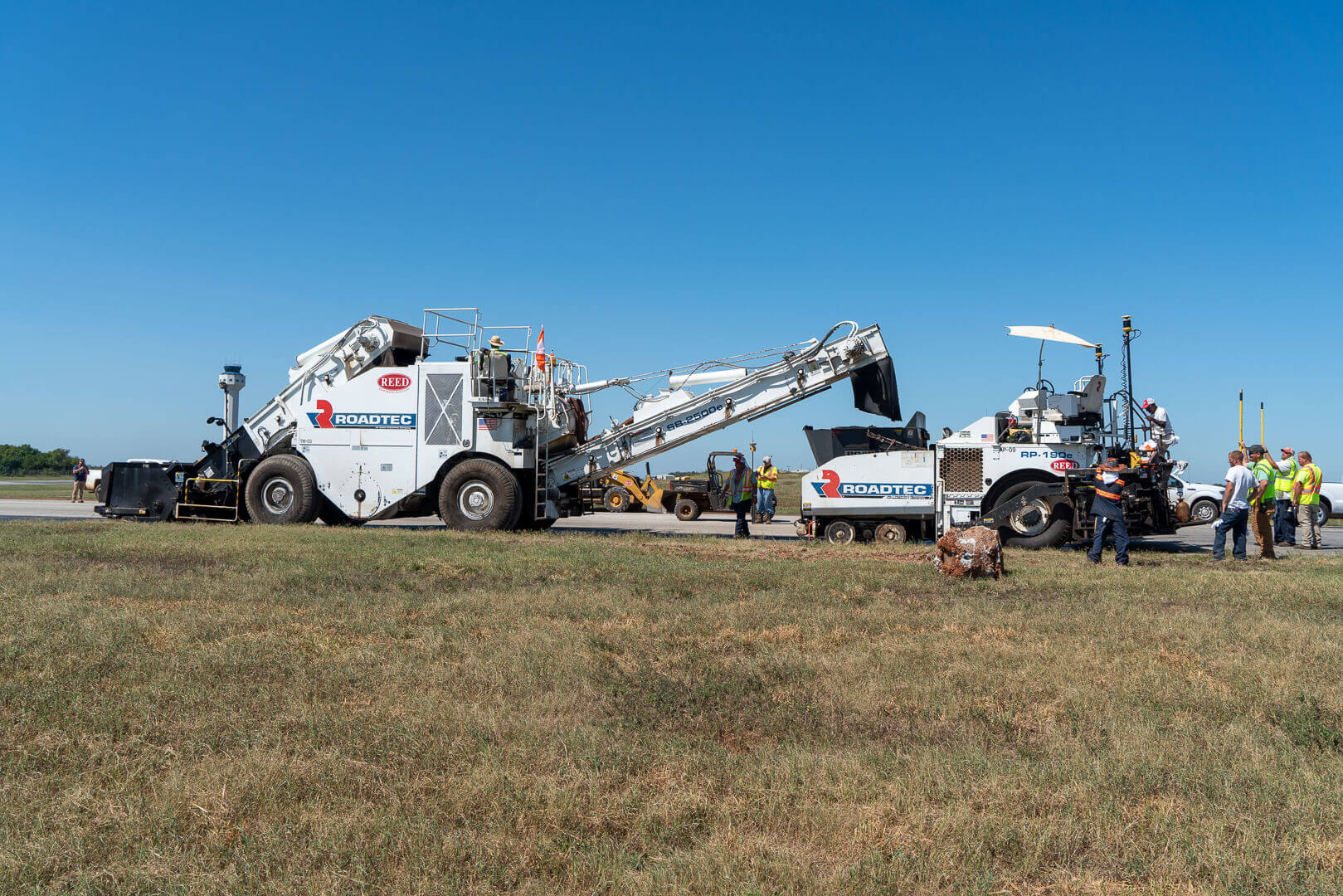

  • Roadtec RP-190 highway class asphalt paver paving at night with a Roadtec Shuttle Buggy Material Transfer Vehicle

    Highway Paving

    Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.

    Learn More
  • Residential Paving

    Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range.  Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
    Learn More

Downloads

Features

Specifications

UNITS:
Engine Specifications
Engine MFG Cummins
ModelQSB 6.7
Max Power172 kW @ 1,9200 rpm
Number of Cylinders6
Electrical System24



EngineSpecifications
Engine MFGCummins
ModelQSB 6.7
Max Power230 hp @ 1,900 rpm
Number of Cylinders6
Electrical 24



Weight & Dimensions
Specifications
Shipping Length (Tractor Only)5,353 mm
Shipping Length with Rear Mount Screed 6,907 mm
Shipping Width 3,194 mm
Shipping Height 3,067 mm
Tractor Operating Width 3,194 mm
Deck Height 1,886 mm
Wheelbase 2,845 mm
Inside Turning Radius 2.82 m
Weight (Tractor Only)16,646 kg



Weight & Dimensions
Specifications
Shipping Length (Tractor Only)17' 7"
Shipping Length with Rear Mount Screed 22' 7'
Shipping Width 10' 6"
Shipping Height 10' 3/4"
Tractor Operating Width 10' 6"
Deck Height 6' 2"
Wheelbase 9' 2"
Inside Turning Radius 11' 3"
Weight (Tractor Only)36,700 lbs



CapacitiesSpecifications
Hydraulic Tank Capacity 288 ltr
Fuel Tank Capacity 379 ltr
Cooling System34 ltr
DEF18.9 ltr





CapacitiesSpecifications
Hydraulic Tank Capacity 76 gal
Fuel Tank Capacity 100 gal
Cooling System9 gal
DEF5 gal





DriveSpecifications
Final Drive 2 speed
Number of Drive Pumps 2
Number of Drive Motors 2
Paving Speed86 mpm
Travel Speed19.3 kph
Rear Tire Size 18.00 R25
Front Tire Size356 mm x 559 mm
Ground Clearance180 mm
Steering Steering Wheel
Controls Movement Hydraulic Swing
Suspension Rubber Tire
Front Bogies Balanced

DriveSpecifications
Final Drive 2 speed
Number of Drive Pumps 2
Number of Drive Motors 2
Paving Speed0-284 fpm
Travel Speed0-12 mph
Rear Tire Size 18.00 R25
Front Tire Size14" x 22"
Ground Clearance7"
Steering Steering Wheel
Controls Movement Hydraulic Swing
Suspension Rubber Tire
Front Bogies Balanced





Feed SystemSpecifications
Hopper Capacity 12.5 mt/7.1 m3
Hopper Width 3130 mm
Feed Control Sonic and Flow Gates
Auger Diameter406 mm
Distance Between Augers and Back Wall38 mm
Minimum Auger Height 51 mm
Hydraulic Tunnel Extensions Optional



Feed SystemSpecifications
Hopper Capacity 13.8 ton/252 ft3
Hopper Width 10' 3"
Feed Control Sonic and Flow Gates
Auger Diameter16”
Distance Between Augers and Back Wall1.5"
Minimum Auger Height 2"
Hydraulic Tunnel Extensions Optional
