Roadtec RP-175 Highway Class Asphalt Paver

Overview

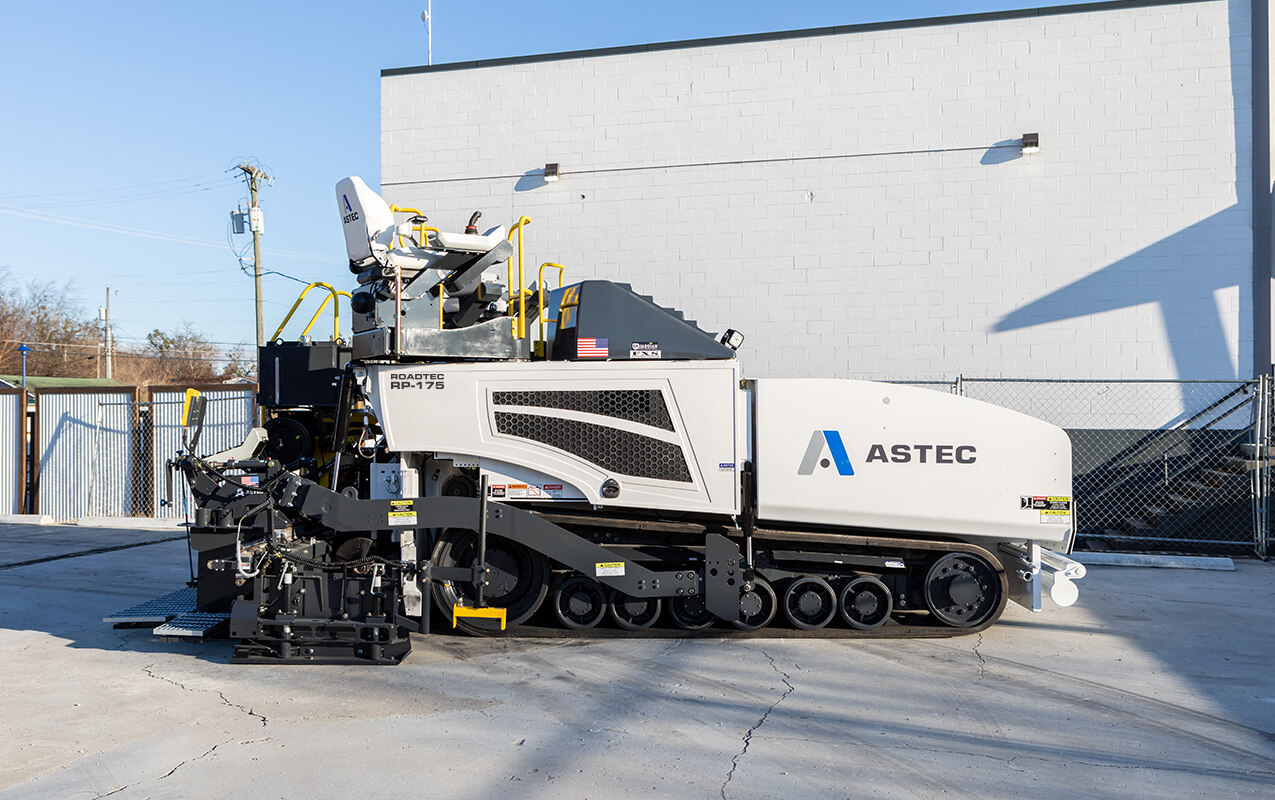

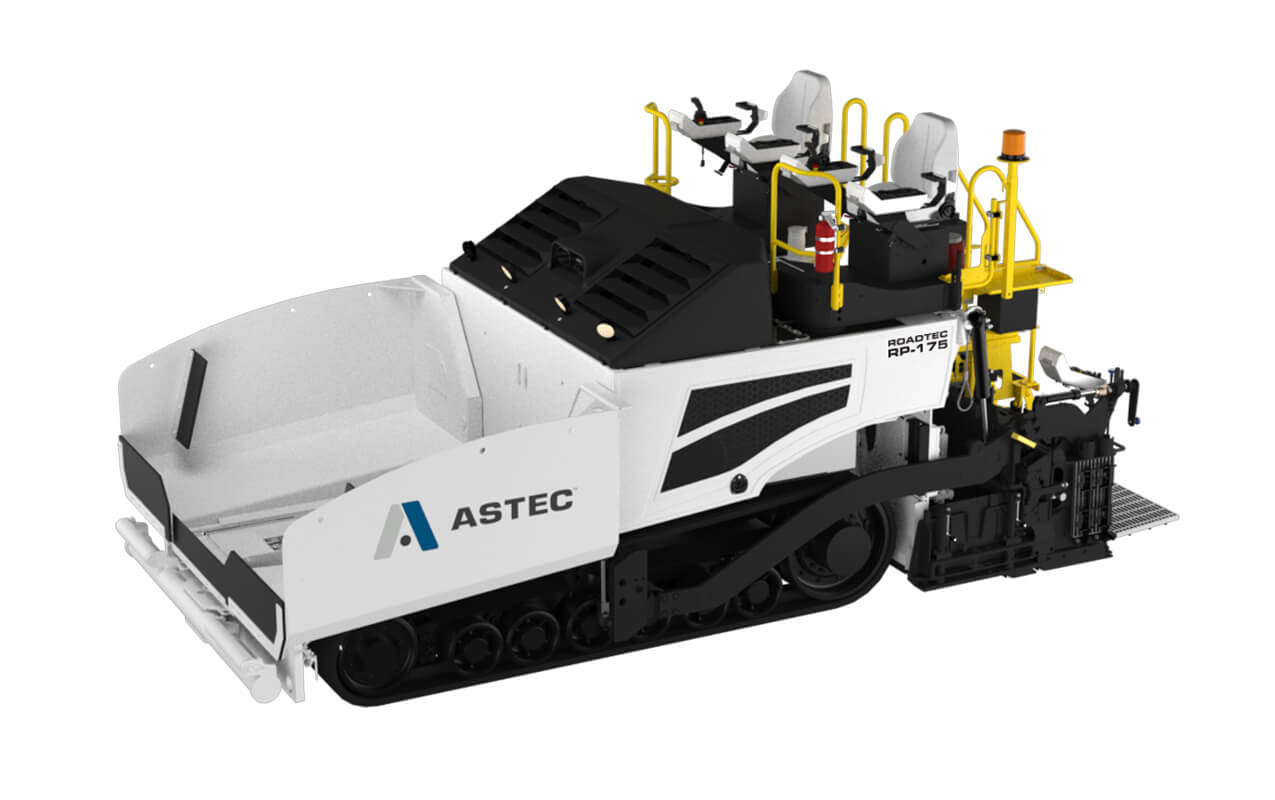

The RP-175 is a powerful, compact 8' (2.5m) wide rubber track asphalt paver designed to work in all types of sub-grades and paving applications.

Full counter-rotate ability and track flotation allow the RP-175 to maneuver and pave in tight areas without sacrificing tractive effort or pushing power. The RP-175 features Astec’s exclusive anti-segregation design which includes a wide feed tunnel and large augers. Operator stations hydraulically swing out, allowing the operator to see down the side of the machine. Controls with ergonomic design of switch placements are on the armrest for operator comfort even through long shifts.

Applications

  • Roadtec RP-190 highway class asphalt paver paving at night with a Roadtec Shuttle Buggy Material Transfer Vehicle

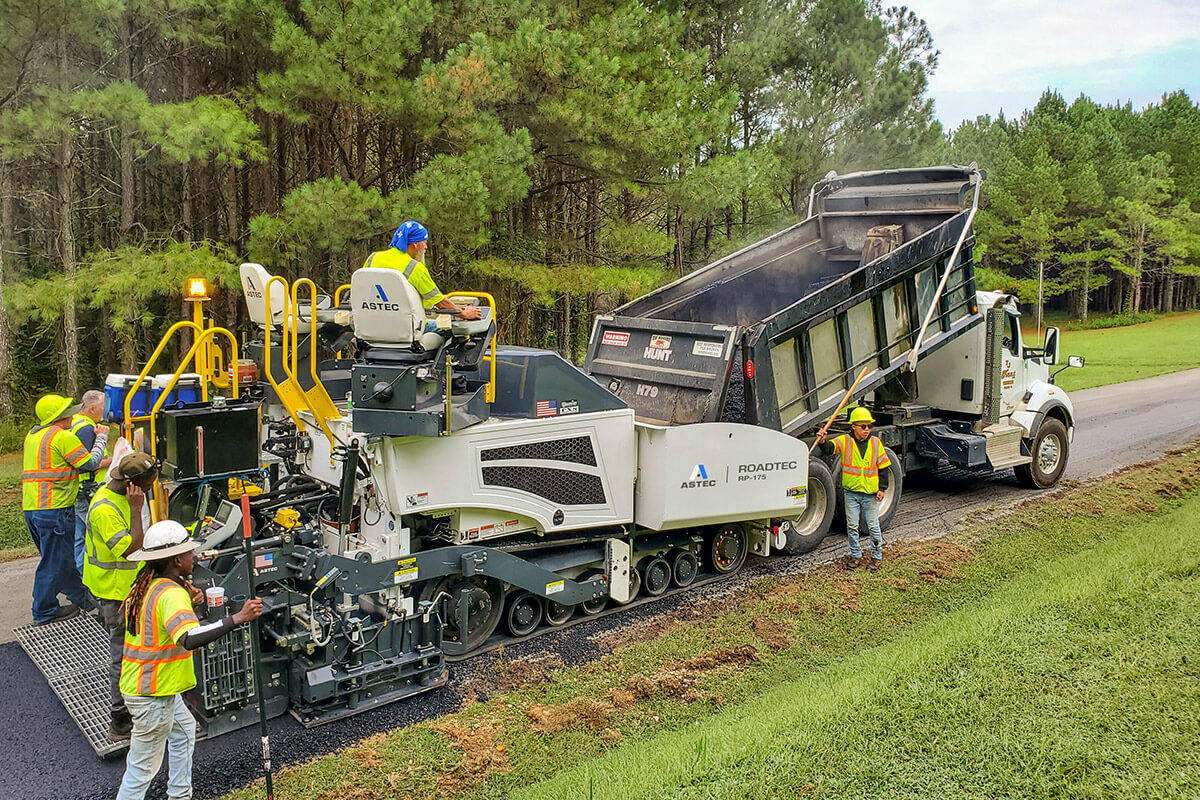

    Highway Paving

    Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.

    Learn More
  • Residential Paving

    Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range.  Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
    Learn More

Downloads

Features

Specifications

UNITS:
EngineSpecifications
Engine MFGCummins
ModelQSB 6.7
Max Power130 kW @ 2,200 rpm
Number of Cylinders6
Electrical System24v



EngineSpecifications
Engine MFGCummins
ModelQSB 6.7
Max Power173 hp @ 2,200 rpm
Number of Cylinders6
Electrical System24v



Weight & DimensionsSpecifications
Shipping Length (Tractor Only)4749 mm
Shipping Length with Rear Mount Screed6630 mm
Shipping Width2693 mm
Shipping Height3022 mm
Tractor Operating Width3073 mm
Wheelbase2794 mm
Weight (Tractor Only)14,741 kg
Weight with S-8 Screed17,145 kg
Weight with EZ-IV-8 Screed17,622 kg





Weight & DimensionsSpecifications
Shipping Length (Tractor Only)15' 7”
Shipping Length with Rear Mount Screed21’-9 1/16”
Shipping Width8’-10”
Shipping Height9’-11”
Tractor Operating Width10’-1”
Wheelbase9’-2”
Weight (Tractor Only)32,500 lbs
Weight with S-8 Screed37,800 lbs
Weight with EZ-IV-8 Screed38,850 lbs





Service Capacities Specifications
Fuel Tank Capacity306 ltr
Hydraulic Tank250 ltr
Cooling System33 ltr
DEF Tank Capacity19 ltr







Service Capacities  Specifications
Fuel Tank Capacity 81 gal
Hydraulic Tank 66 gal
Cooling System 8.75 gal
DEF Tank Capacity 5 gal







DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed60 mpm
Travel Speed12.8 kph
Rear tire size16.00-24
Track Width355 mm
Steering Joystick
Controls movementHydraulic Swing
SuspensionRubber Track
Front Bogies1 Double, 1 Triple





DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed0-200 fpm
Travel Speed0-7.5 mph
Rear tire size16.00-24
Track Width14”
Steering Joystick
Controls movementHydraulic Swing
SuspensionRubber Track
Front Bogies1 Double, 1 Triple





Feed SystemSpecifications
Hopper Width3073 mm
Hopper Capacity9 mt
Feed ControlSonic and Flow Gates
Auger Diameter406 mm
Distance Between Augers and Back Wall38 mm
Minimum Auger Height51 mm
Hydraulic Tunnel ExtensionsOptional





Feed SystemSpecifications
Hopper Width10" 1”
Hopper Capacity10 tons
Feed ControlSonic and Flow Gates
Auger Diameter16"
Distance Between Augers and Back Wall1.5”
Minimum Auger Height2”
Hydraulic Tunnel ExtensionsOptional
