Roadtec RP-170 Highway Class Asphalt Paver

Overview

The RP-170 is an 8 foot (2.5m) wide rubber-tire asphalt paver with a compact wheelbase for greater maneuverability without sacrificed performance.

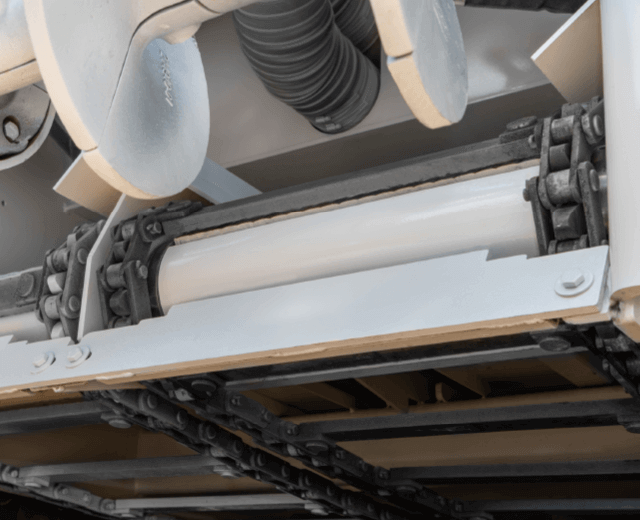

The RP-170 contains Astec’s exclusive anti-segregation design which includes a wide feed tunnel and large augers. Operator stations hydraulically swing out, allowing the operator to see down the side of the machine. Controls with ergonomic design of switch placements are on the armrest for operator comfort even through long shifts.

Applications

  • Roadtec RP-190 highway class asphalt paver paving at night with a Roadtec Shuttle Buggy Material Transfer Vehicle

    Highway Paving

    Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.

    Learn More
  • Residential Paving

    Residential paving focuses on paving driveways, parking lots, cart paths, bike paths, footpaths, and other smaller areas. These smaller spaces are traveled via vehicle, bicycles, and foot daily, and examined at close range.  Therefore, they demand attention to detail and focus. While these sites are smaller in scale than highway class or commercial class jobs, they still require asphalt paving machinery that can produce a quality mat with efficiency and productivity.
    Learn More

Downloads

Features

Specifications

UNITS:
EngineSpecifications
Engine MFGCummins®
ModelQSB 6.7
Max Power130 kW @ 2,200 rpm
Number of Cylinders6
Electrical System24v



EngineSpecifications
Engine MFGCummins®
ModelQSB 6.7
Max Power173 hp @ 2,200 rpm
Number of Cylinders6
Electrical System24v



Weight & DimensionsSpecifications
Shipping Length (Tractor Only)4953 mm
Shipping Length With Rear Mount Screed6832 mm
Shipping Width2693 mm
Shipping Height3067 mm
Tractor Operating Width3175 mm
Wheelbase1905 mm
Weight of (Tractor Only)13,281 kg
Weight with S-8 Screed15,685 kg
Weight with EZ-IV-8 Screed16,161 kg



Weight & DimensionsSpecifications
Shipping Length (Tractor Only)16' 3"
Shipping Length With Rear Mount Screed22' 5”
Shipping Width8’ 10”
Shipping Height10' 1/4"
Tractor Operating Width10' 5"
Wheelbase6’ 4”
Weight of (Tractor Only)29,280 lbs
Weight with S-8 Screed34,580 lbs
Weight with EZ-IV-8 Screed35,630 lbs



Service Capacities Specifications
Fuel Tank Capacity306 ltr
Hydraulic Tank250 ltr
Cooling System33 ltr
DEF Tank Capacity19 ltr







Service Capacities Specifications
Fuel Tank Capacity81 gal
Hydraulic Tank66 gal
Cooling System8.75 gal
DEF Tank Capacity5 gal







DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed80 mpm
Travel Speed14 kph
Rear tire size16.00-24
Front tire size559 mm x 304 mm
Steering SteeringWheel
Controls movementHydraulic swing
SuspensionRubber Tire
Front BogiesBalanced





DriveSpecifications
Final Drive2 speed
Number of Drive Pumps2
Number of Drive Motors2
Paving Speed0-300 fpm
Travel Speed0-10 mph
Rear tire size16.00-24
Front tire size12” x 22”
Steering SteeringWheel
Controls movementHydraulic swing
SuspensionRubber Tire
Front BogiesBalanced





Feed SystemSpecifications
Hopper Width3175 mm
Hopper Capacity10.4 mt
Feed ControlSonic and Flow Gates
Auger Diameter406 mm
Distance Between Augers and Back Wall38 mm
Minimum Auger Height51 mm
Hydraulic Tunnel ExtensionsOptional





Feed SystemSpecifications
Hopper Width10" 5”
Hopper Capacity11.5 tons
Feed ControlSonic and Flow Gates
Auger Diameter16"
Distance Between Augers and Back Wall1.5”
Minimum Auger Height2”
Hydraulic Tunnel ExtensionsOptional
