Roadtec MTV-1105 Material Transfer Vehicle

Overview

With the MTV-1105, you never have to worry about the jobsite base—the tracked MTV-1105 can handle it. If the ground is solid enough for paving, the MTV-1105e smoothly and effortlessly carries material anywhere you need. There’s never a concern about slipping a wheel and leaving a rut. Fabricated from heavy-duty steel, the MTV 1105 is still light enough to avoid weight permits for most transports.

Applications

  • Roadtec RP-190 highway class asphalt paver paving at night with a Roadtec Shuttle Buggy Material Transfer Vehicle

    Highway Paving

    Highway class paving requires pavers that are strong, powerful, and productive. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths, and a broad scope of screed compatibility.

    Learn More
  • Commercial Paving

    Commercial paving applications need machinery that can scale down the highway paver size without scaling down the power, functionality, performance, or efficacy. These pavers are able to pave hard-to-reach areas such as parking lots, traffic circles, and roundabouts to yield a quality mat without sacrificing productivity.

    Learn More
  • Motor Sports Paving

    Motor Sports Paving requires nonstop paving, precise mat thickness, and consistent paving practices. The HMA mixture needs to be consistent in terms of temperature and consistency. The resulting pavement must be able to withstand massive stress.
    Learn More

Downloads

Features

Specifications

UNITS:
Engine Specifications
Engine MFG Cummins
ModelQSB 6.7
Max Power186 kW @ 2,200 rpm
Number of Cylinders6
Electrical System24




EngineSpecifications
Engine MFGCummins
ModelQSB 6.7
Max Power250 hp @ 2,200 rpm
Number of Cylinders6
Electrical 24


Weight & Dimensions
Specifications
Shipping Weight24,276 kg
Operating Length 12,446 mm
Shipping Width2,971 mm
Shipping Height3,009 mm
Weight & Dimensions
Specifications
Shipping Weight53,520 lbs
Operating Length 40' 10"
Shipping Width9' 9"
Shipping Height9' 10.5"




CapacitiesSpecifications
Hydraulic Tank Capacity303 ltr
Fuel Tank Capacity454 ltr



CapacitiesSpecifications
Hydraulic Tank Capacity80 gal
Fuel Tank Capacity120 gal



Material HandlingSpecifications
Truck Dump Hopper Width2,794 mm

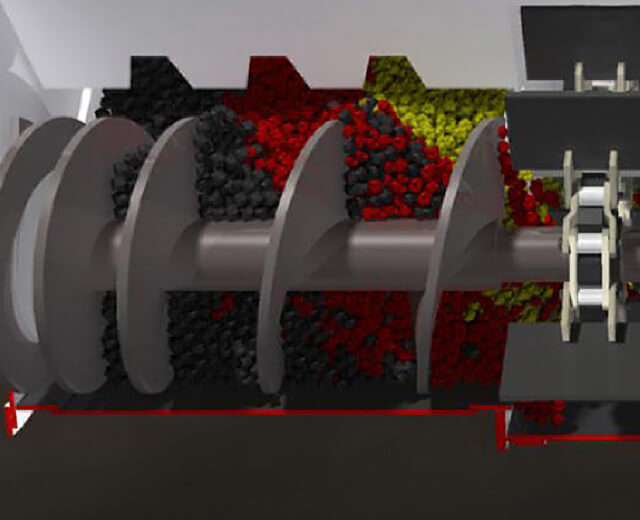

Dump Hopper Transverse Auger (C1)559 mm Triple Pitch
Dump Hopper Unloading Conveyor Capacity544 mtph
Paver Loading Conveyor (C3)544 mtph

Material HandlingSpecifications
Truck Dump Hopper Width9' 2"
Dump Hopper Transverse Auger (C1)22"
Dump Hopper Unloading Conveyor Capacity600 tph
Paver Loading Conveyor (C3)600 tph

Drive Specifications
Working Speed0-3.7 kph
Travel Speed11.9 kph

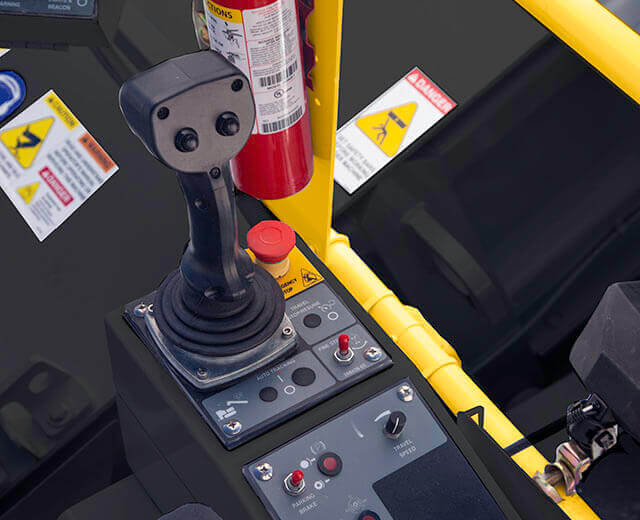

SteeringSingle Joystick
Suspension457 mm Rubber Track
ModelSpecifications
Working Speed0-2.3 mph
Travel Speed0-7.4 mph
SteeringSingle Joystick
Suspension18" Rubber Track
