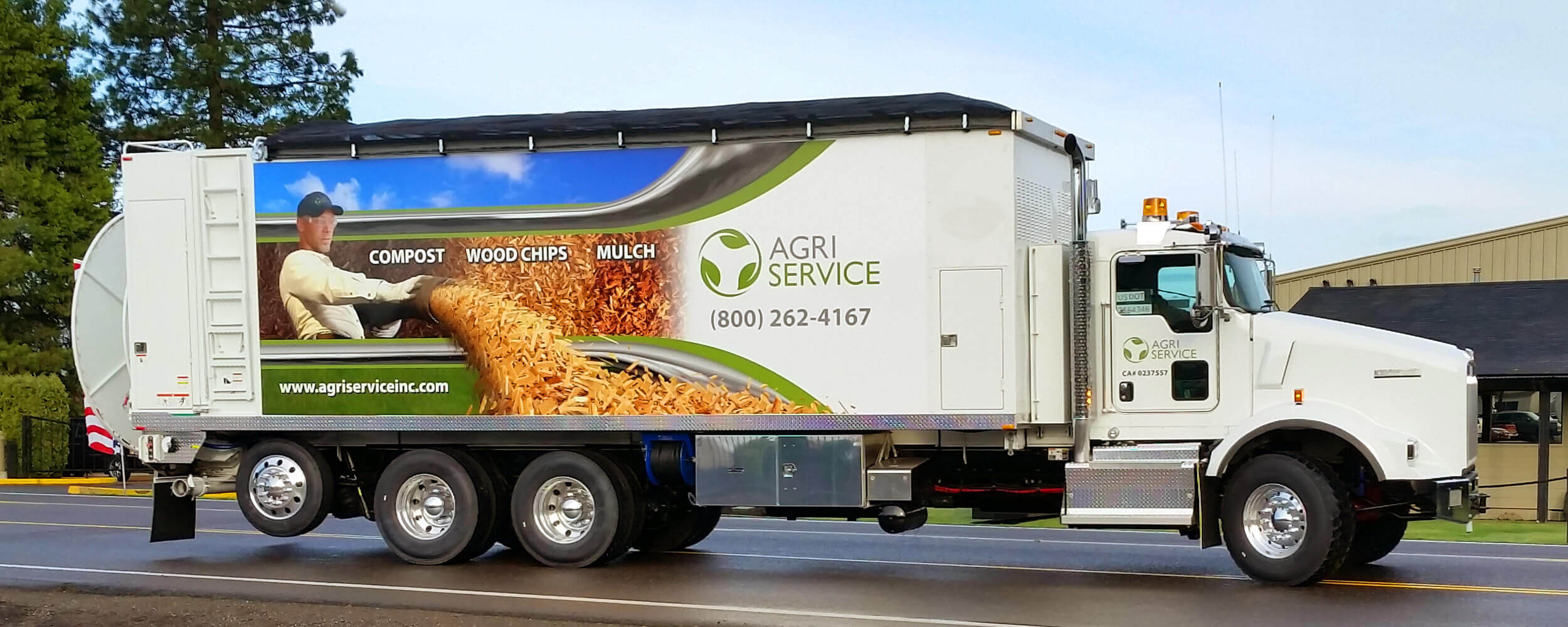

Peterson BT40C Blower Truck

Overview

With a Peterson BT40C Blower Truck, you can tackle a wider range of assignments.

Our high capacity delivery system handles larger erosion control and commercial landscape projects. Reduced set-up and clean-up time produces a faster turn around, resulting in more deliveries and more cubic yards each day. Extra daily loads make a significant difference to your bottom line.

The large footprint feeder, combined with the high-capacity tri-lobe blower, provides increased airflow for farther and faster delivery. Larger diameter hoses provide added protection against clogging. These features enable you to be more productive and deliver a wider range of materials each day.

Applications

Mulch

Astec machines can help you create, screen, stack, and deliver your final mulch product. We’ll help you add value to your mulch products and services from your feedstock all the way to delivery.
Learn More
Compost

Compost is organic matter that has been decomposed and may be made from single source material or blended for specific application performance. Materials used include: garden debris, kitchen scraps, manure, or yard and lawn waste.
Learn More
Playground Chips

Playground material and engineered wood fiber is can be created with Peterson grinders or chippers and pneumatically delivered with Peterson blower trucks.
Learn More

Downloads

Blower Truck Brochure
Download (pdf) 7 MB
BT40C Blower Truck Spec Sheet
Download (pdf) 331 KB

Key Specifications

Dimensions	Specifications
Operating Length	110 m
Operating Width	259 cm
Operating Height	360 cm
Loading Height	348 cm
Box Length	749 cm
Box Width	224 cm
Box Height	259 cm
Box Volume, Struck	30.6 m³
Box Volume, Typical	28.3 m³

Dimensions	Specifications
Operating Length	36’ 9”
Operating Width	8’ 6”
Operating Height	11’ 10”
Loading Height	11’ 5”
Box Length	24' 7"
Box Width	7' 4"
Box Height	8' 4"
Box Volume, Struck	40 yds³
Box Volume, Typical	37 yds³

Weight	Specifications
Weight with Typical Options	15 495 kg
Box Only Weight	7 575 kg

Weight	Specifications
Weight with Typical Options	approx. 34,160 lbs
Box Only Weight	16,700 lbs

Truck Platform	Specifications
Chassis	any Class 8
Standard Chassis	Peterbilt 567
Cab Configuration	Driver Bucket Seat & 2-Person Bench Seat

Truck Platform	Specifications
Chassis	any Class 8
Standard Chassis	Peterbilt 567
Cab Configuration	Driver Bucket Seat & 2-Person Bench Seat

Fluid Capacities
Hydraulic Tank Capacity	360 L
Water (Dust Suppression Option	757 L

Fluid Capacities
Hydraulic Tank Capacity	95 gal
Water (Dust Suppression Option	200 gal

System Controls
Peterson Adaptive Feed System	Checkmark
Radio Remote	Checkmark

System Controls
Peterson Adaptive Feed System	Checkmark
Radio Remote	Checkmark

Feed System
Floor	Aluminum Walking Floor
Wear Liners	Aluminum
Blower System
Blower	Tri-Lobe^®
Blowing Pressure	1.03 bar
Large Capacity Silencer	Intake and Discharge

Feed System
Floor	Aluminum Walking Floor
Wear Liners	Aluminum
Blower System
Blower	Tri-Lobe^®
Blowing Pressure	15 psi
Large Capacity Silencer	Intake and Discharge

Discharge System
Hose Reel	powered, holds up to 98 m
Discharge Hose Length	6 m heavy-duty, 91 m standard
Hose Diameter	127 mm, 100 mm
Noise Level with Optional Discharge Silencers	87 db at 7 m

Discharge System
Hose Reel	powered, holds up to 320 ft
Discharge Hose Length	20 ft heavy-duty, 300 ft standard
Hose Diameter	5", 4"
Noise Level with Optional Discharge Silencers	87 db at 23‘

Production
Discharge Volume	up to 46 m³ per hour
Material Weight	up to 1245 kg/m³

Actual output may vary due to moisture content, material density and size, support equipment, terrain variables, and hose diameter'

Production
Discharge Volume	up to 60 yds³
Material Weight	up to 2,100 lbs/yd³

Actual output may vary due to moisture content, material density and size, support equipment, terrain variables, and hose diameter'

UNITS:

All specifications subject to change without notice.

Features

Easy Maintenance

A series of drive chains keep the auger and tines moving steadily. Bolt on tensioners and centralized greasing provide easy maintenance.
High Capacity Blower

Our high capacity Tri-Lobe blower provides increased airflow and production. Larger five-inch diameter hoses can blow materials that could plug smaller hoses.
Air Stream Injection System

Evenly distribute seeds or fertilizer directly into the material mix. A tackifier can be added for efficient erosion control applications.
Side-Opening End Gate

The side-opening end gate on Peterson blower trucks and stand-alone blower units, provides easy access to the feed system allowing for easier and safer maintenance.
