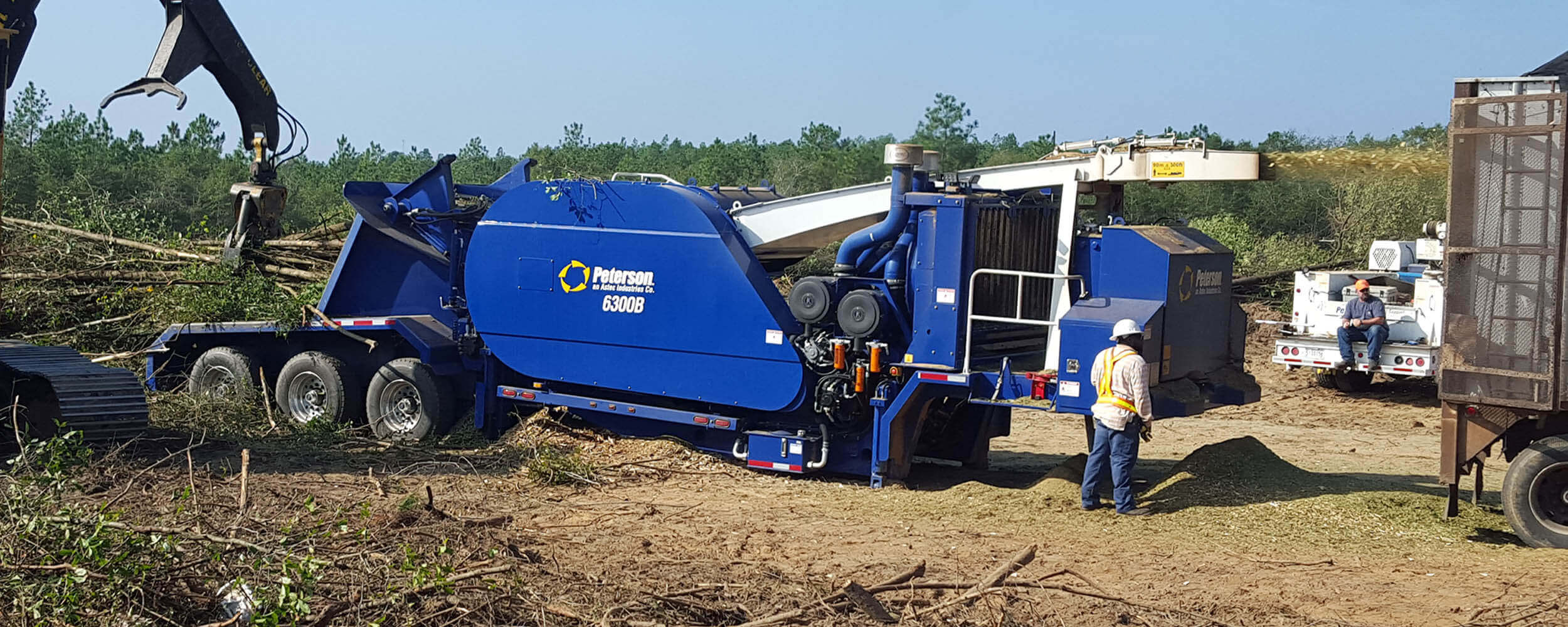

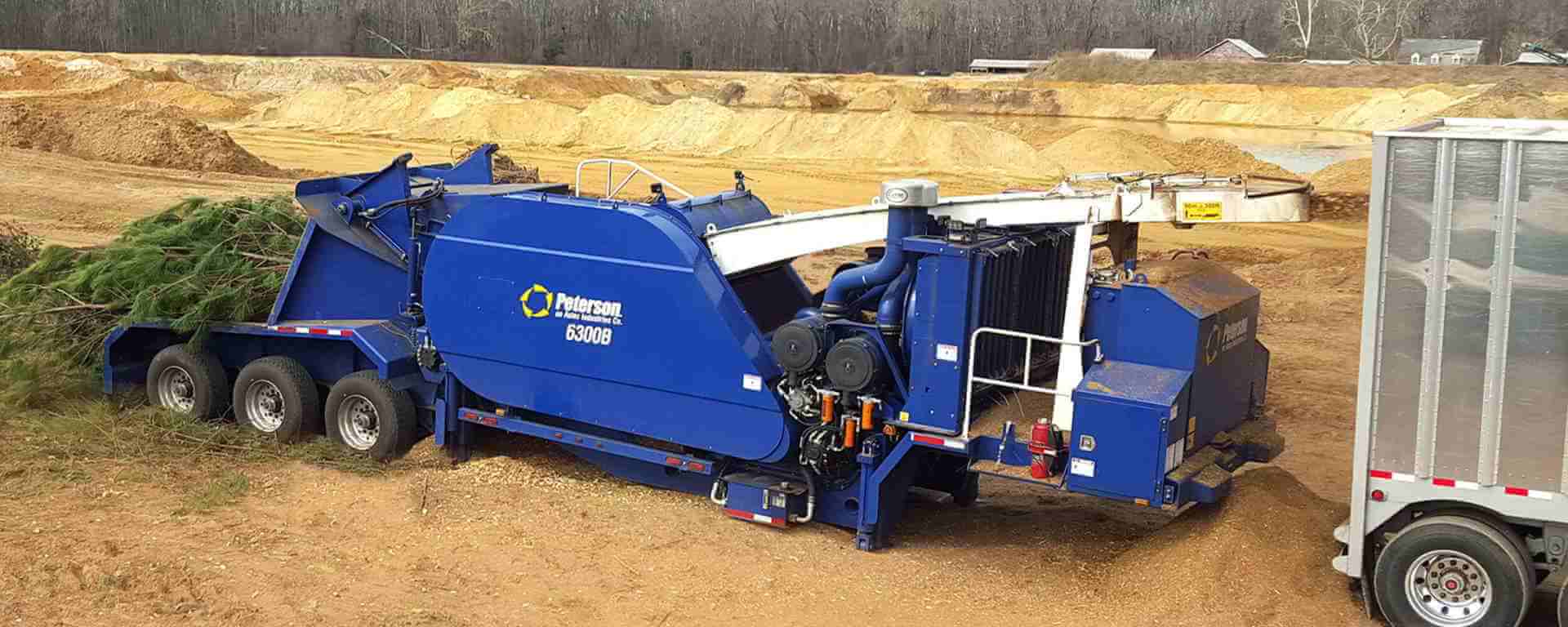

Peterson 6300B Drum Chipper

Overview

The 6300B Drum Chipper is suited for high volume biomass producers who have a wide variety of feed material, from logs up to 36″ (91 cm) in diameter, to brush and small feed stock.

The 6300B Drum Chipper is powered by a 1050 HP (772 kW) C27 Caterpillar engine, and has an optional Tier IV engine available. A PT Tech wet clutch has also been added to the machine. At 85,000 pounds (38,555  kg), the 6300B was designed for operations requiring high production and frequent moves between jobs.

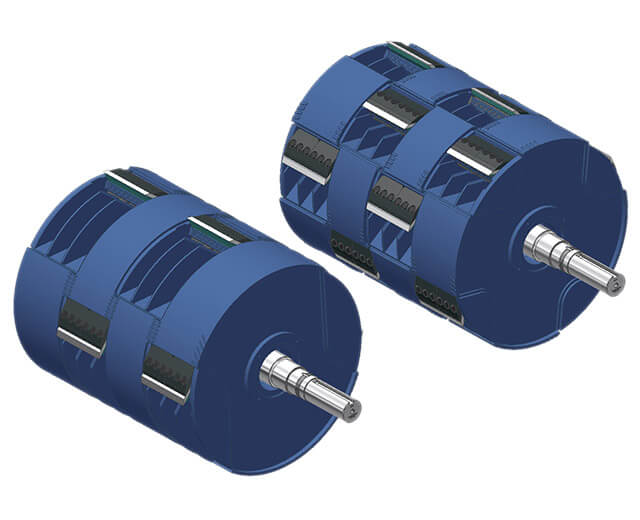

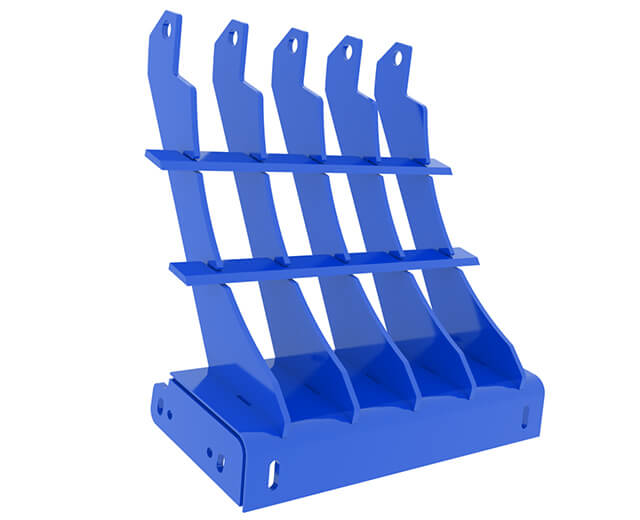

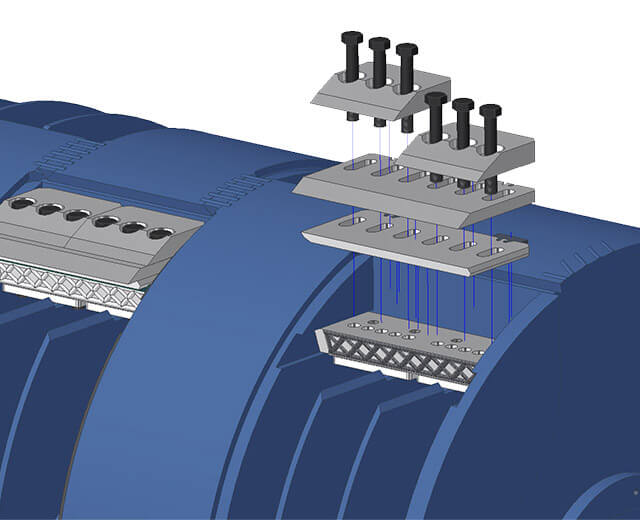

The 6300B Drum Chipper has two drum configurations, a 8-pocket drum to make standard biomass chips, or a 16-pocket drum to make microchips.  An optional grate system has been redesigned to allow for adjustment from a microchip to a 1¼” chip with the same grates. Traditional Babbitt type knife systems are standard equipment, or an optional key knife system is available. Peterson’s chip accelerator system, adds load density, or throws chips well away from the machine for land clearing operations.

Applications

  • Orchard Clearout

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear commercial orchards for plantation rotation.
    Learn More

Downloads

Features

Specifications

UNITS:
DimensionsSpecifications
Operating Length1290 cm
Operating Width345 cm
Operating Height381 cm
Travel Width299 cm
Travel Length1 300 cm
Travel Height382 cm
Frame Length1267 cm
Front Ground Clearance122 cm
Rear Ground Clearance28 cm
Ground Clearance64 cm
Axle Spacing138 cm
Front to 5th Wheel67 cm
5th Wheel to Center Axle948 cm
5th Wheel Height126 cm



DimensionsSpecifications
Operating Length42' 4"
Operating Width11' 4"
Operating Height12' 6"
Travel Width9' 10"
Travel Length42' 8"
Travel Height12' 6"
Frame Length41' 7"
Front Ground Clearance4'
Rear Ground Clearance11"
Ground Clearance2' 1"
Axle Spacing4' 7"
Front to 5th Wheel2' 2"
5th Wheel to Center Axle31' 1"
5th Wheel Height4' 1"



Weights
Machine Weight38 555 kg
5th Wheel Weight16,329 kg
Tridem Axle Weight22,226 kg
Weights
Machine Weight85,000 lbs
5th Wheel Weight36,000 lbs
Tridem Axle Weight49,000 lbs
PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 772 kW
ClutchPT Tech HPTO 15 FX
Fuel Tank Capacity1495 L
Main Hydraulic Tank Capacity454 L
System ControlsSpecifications
Peterson Adaptive Control System
Checkmark
Radio Remote
Checkmark

Peterson+ Analytics
Checkmark



PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 1050 hp
ClutchPT Tech HPTO 15 FX
Fuel Tank Capacity395 gallons
Main Hydraulic Tank Capacity120 gallons
System ControlsSpecifications
Peterson Adaptive Control System
Checkmark
Radio Remote
Checkmark

Peterson+ Analytics
Checkmark



Feed SystemSpecifications
Feed Opening (h x w)91 x 145 cm
Feed Length297 cm
Feed Height127 cm
Feed Speed Rangeup to 37 m/min
Feed Conveyor Width144 cm
Feed chain4 Sections, WDH120
Compression Roll Diameter106 cm



Feed SystemSpecifications
Feed Opening (h x w)36" h x 57" w
Feed Length7' 11"
Feed Height5' 0"
Feed Speed Rangeup to 120 ft/min
Feed Conveyor Width4' 9"
Feed chain4 Sections, WDH120
Compression Roll Diameter42" diameter



ChipperSpecifications
Drum Size127 diameter x 152 width
Knife Pockets8 or 16 pockets (staggered)
Knife SystemBabbitt or Key Knife™
Chip Size( to 32 mm



ChipperSpecifications
Drum Size50" diameter x 60" width
Knife Pockets8 or 16 pockets (staggered)
Knife SystemBabbitt or Key Knife™
Chip Size¼" to 1 ¼"



Production
Chip Output226 796 kg
Production
Chip Outputup to 250 ton/hour

Media Gallery

UNITS:
Compare Drum Chippers
  Current Item

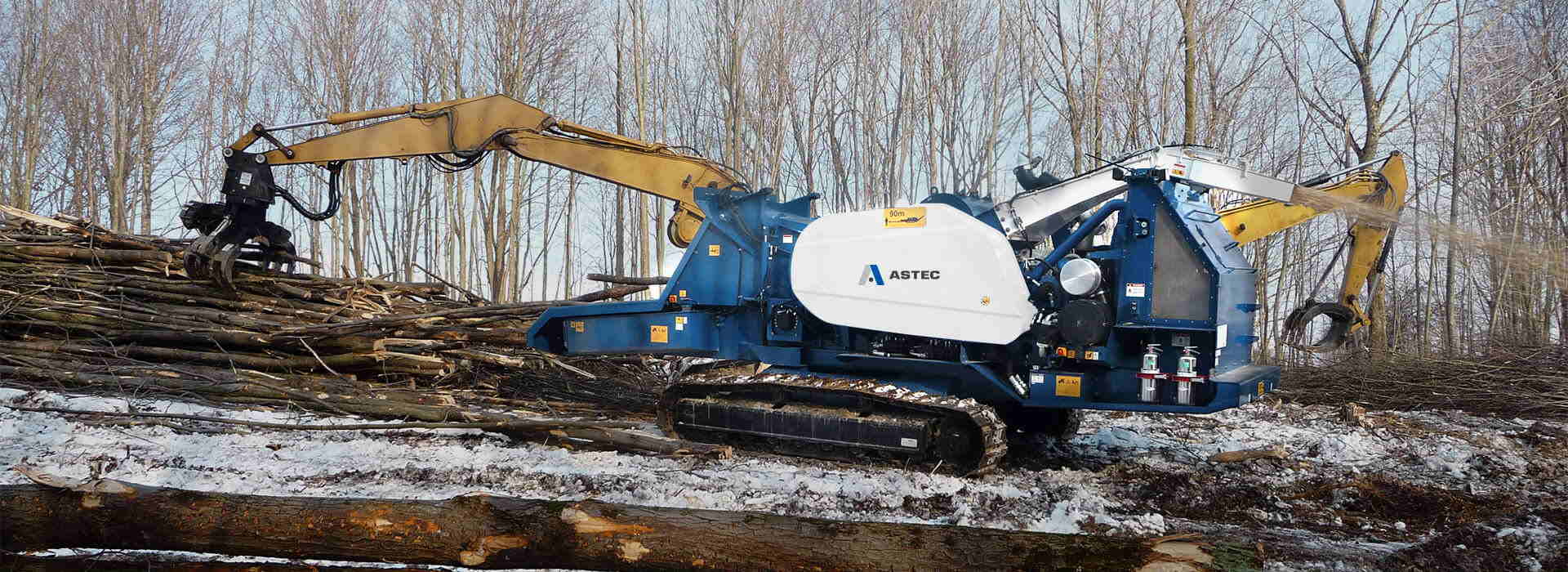

Compare Drum Chippers Peterson 6300B Drum Chipper with wheels Peterson 4300B Drum Chipper with wheels Peterson 4310B Drum Chipper with tracks 4310B Highwalker Drum Chipper with tracks Peterson 6310B Drum Chipper with tracks
  6300B 4300B 4310B 4310B Highwalker 6310B
Standard Engine CAT C27 Tier IV, 772 kW CAT C18 Tier IV, 563 kW CAT C18 Tier IV, 563 kW CAT C18 Tier IV, 563 kW CAT C27 Tier IV, 772 kW
Production* up to 227 tonnes 59 to 109 tonnes 59 to 109 tonnes 59 to 109 tonnes up to 227 tonnes
Feed Opening 145 x 91 cm 103 x 61 cm 103 x 61 cm 103 x 61 cm 145 x 91 cm
Weight 38 555 kg 23 586 kg 26 535 kg
26 535 kg 39 010 kg

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.

Compare Drum Chippers
 Current Item
Compare Drum ChippersPeterson 6300B Drum Chipper with wheelsPeterson 4300B Drum Chipper with wheelsPeterson 4310B Drum Chipper with tracks4310B Highwalker Drum Chipper with tracksPeterson 6310B Drum Chipper with tracks
 6300B4300B4310B4310B Highwalker6310B
Standard EngineCAT C27 Tier IV, 1050 hpCAT C18 Tier IV, 755 hp CAT C18 Tier IV, 755 hp CAT C18 Tier IV, 755 hp CAT C27 Tier IV, 1050 hp
Production*up to 250 tons 60 to 120 tons60 to 120 tons60 to 120 tonsup to 250 tons
Feed Opening 57” x 36” 40” x 24” 40” x 24”40” x 24” 57” x 36”
Weight85,000 lbs 52,000 lbs 58,500 lbs58,500 lbs86,000 lbs

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.
