Peterson 5710E Horizontal Grinder

Overview

The Peterson 5710E horizontal grinder is the newest tracked horizontal grinder in the Astec line.

The 5710E is designed for high-volume producers who require frequent moves among sites. The 5710E features a ground fuel option, improved approach angles, a 4,515 square-inch screening area and an 8% larger rotor with more bits. The machine weight is also lighter than its predecessors.

Powered by a Tier IV Caterpillar C27 1,050 hp (783 kW) engine or an optional C32 1,125 hp (839 kW) engine, the 5710E can easily tackle a variety of materials, having a positive impact on efficiency and productivity.

Applications

  • Orchard Clearout

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear commercial orchards for plantation rotation.
    Learn More

  • Compost

    Compost is decomposed organic matter derived from either a single source material or blended for specific application performance. Materials can include garden debris, kitchen scraps, manure or yard and lawn waste.
    Learn More

  • Municipal Solid Waste (MSW) Recycling

    Peterson horizontal grinders with the R+ package are an ideal tool for MSW reduction. R+ equipped Peterson horizontal grinders turn the rotor at a slower speed and have heavier duty internal components to handle the tramp metal often found in this application.
    Learn More
  • Astec Peterson 5710D Horizontal Grinder making compost from green waste in Hawaii with an loading excavator.

    Organic Recycling

    Peterson Horizontal Grinders are an ideal tool for quickly and effectively reducing green waste into mulch or compost products.
    Learn More

  • Railroad Tie Recycling

    The creosote treated railroad ties are a valuable energy source, once they have been broken down into a manageable and consistent size.
    Learn More

  • Natural Disaster Cleanup

    Peterson horizontal grinders are ideal for storm debris cleanup. Our horizontal grinder design allows for easy feeding of odd-shaped material, without the dangers, found in typical tub grinder designs.
    Learn More

  • Wood Waste Recycling

    Peterson horizontal grinders are ideal for wood waste recycling applications. Because of the limited options to reuse building materials or wood recycled from demolition efforts, reduced wood waste can be recycled to make biomass, bedding material, mulch, or compost.
    Learn More

  • Mulch

    Astec machines can help you create, screen, stack, and deliver your final mulch product. We’ll help you add value to your mulch products and services from your feedstock all the way to delivery.
    Learn More

  • Land Clearing

    Peterson horizontal grinders and drum chippers are an ideal tool for land clearing operations needing to clear right-of-ways for pipelines, power lines, or other commercial developments.

    Learn More
  • Peterson 4310B Drum Chipper chipping whole trees making microchips and being loaded by a grapple excavator

    Biomass

    Biomass is an energy source derived from renewable and sustainable organic materials to create electricity or other forms of power. Horizontal grinders and drum chippers are highly productive machines for creating biomass.
    Learn More

  • Construction & Demolition Recycling

    Construction and demolition recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, gypsum, plastic, metal, wire, roofing shingles, asphalt, concrete and more. By separating and recycling different materials it reduces landfill waste and associated costs, while also producing value-added products.
    Learn More

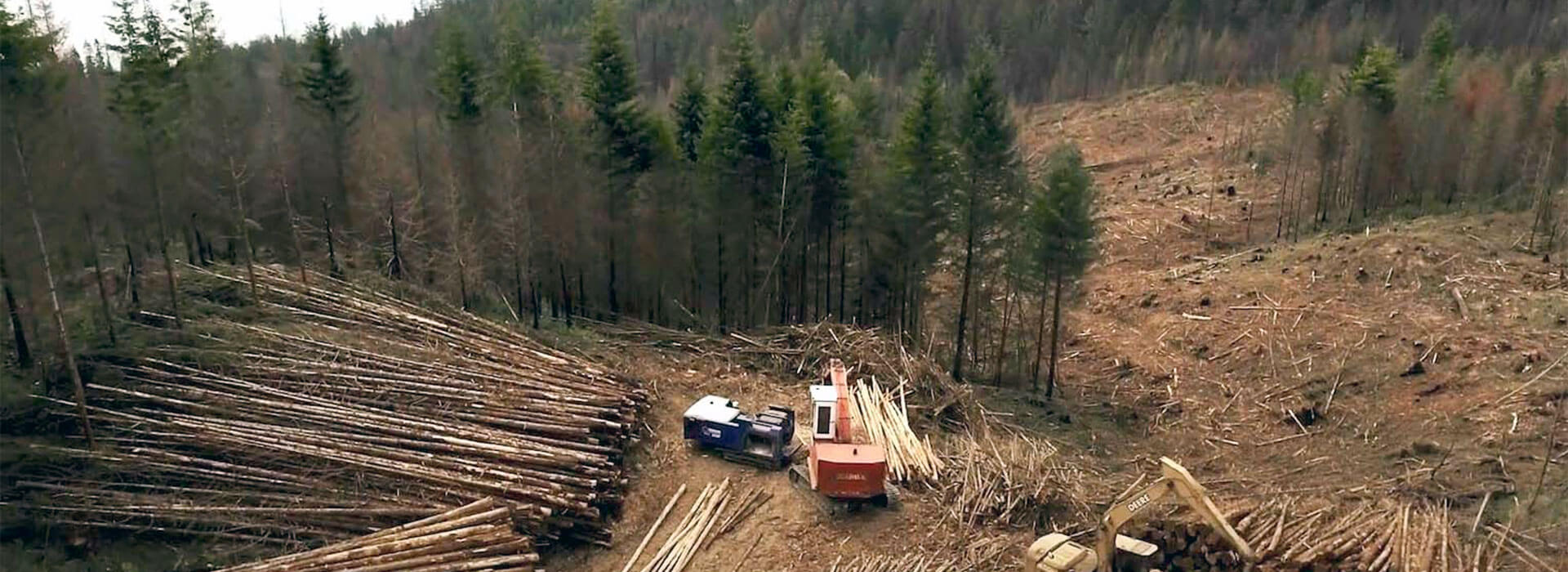

  • Salvage Timber

    Peterson horizontal grinders and drum chippers are an ideal tool for processing damaged wood from private timberlands, national forests, pulpwood plantations, and hazardous trees near roadways and other infrastructure.
    Learn More

  • Asphalt Shingle Recycling

    Asphalt shingle grinding is the process of making recycled asphalt shingles (RAS). RAS is produced by grinding asphalt roofing shingles to a small spec, generally under 3/8” to salvage the valuable asphalt and sand.
    Learn More

Downloads

Key Specifications

DimensionsSpecifications
Operating Length18 m
Operating Width348 cm
Operating Height520 cm
Travel Width299 cm
Travel Length1418 cm
Travel Height367 cm
DimensionsSpecifications
Operating Length58' 1.75"
Operating Width11' 4.75"
Operating Height17' 0.5"
Travel Width9' 9.75"
Travel Length46' 6.25"
Travel Height12' 0.5"
WeightsSpecifications
Machine Weight40,281 kg
Machine Weight with Tow Dolly45,450 kg

WeightsSpecifications
Machine Weight88,805 lbs
Machine Weight with Tow Dolly100,200 lbs

PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 772 kW
Caterpillar C32 Tier IV, 839 kW
Caterpillar C27 Tier II, 772 kW export only



ClutchPT Tech HPT015FX
Fuel Tank Capacity1287 L
Main Hydraulic Tank Capacity371 L
System Controls
Adaptive Control System

Radio Remote

PowertrainSpecifications
EngineCaterpillar C27 Tier IV, 1,050 hp
Caterpillar C32 Tier IV, 1,125 hp
Caterpillar C27 Tier II, 1,050 hp export only
ClutchPT Tech HPT015FX
Fuel Tank Capacity340 gallons
Main Hydraulic Tank Capacity98 gallons
System Controls
Adaptive Control System

Radio Remote

RotorSpecifications
Rotor Width161 cm
Rotor Diameter107.95 cm
Rotor Shaft Size187 cm
Bit Size76 x 165 mm
Number of Bits22 drum rotor
Rotor Speed840 rpm @ 2,100 engine rpm
GratesSpecifications
Number of Grate Sections4
Total Grate Area29,128cm²
Grate Coverage194º
Grate Thickness32 mm
RotorSpecifications
Rotor Width64"
Rotor Diameter42.5"
Rotor Shaft Size7.4"
Bit Size3" x 6.5"
Number of Bits22 drum rotor
Rotor Speed840 rpm @ 2,100 engine rpm
GratesSpecifications
Number of Grate Sections4
Total Grate Area4,515 in²
Grate Coverage194º
Grate Thickness1.25"
TracksSpecifications
Track Type & Widthtriple grouser, 60 cm
Travel Speed1.9 and 3.7 kph
Ground Pressure.88 kg/cm2
Track Length457 cm
Front to Track Length473 cm

TracksSpecifications
Track Type & Widthtriple grouser, 23.5"
Travel Speed1.2 and 2.3 mph
Ground Pressure12.63 lbs/in²
Track Length14' 11.75"
Front to Track Length15' 6.25"
Feed SystemSpecifications
Hopper Length433 cm
Hopper Width152 cm
Hopper Height165 cm
Hopper Capacity5.39 m³
Feed Conveyor Width152 cm
Feed Chain4 sections, full hopper width
Compression Roll Diameter91.4 cm
Feed Opening (w x h)152 x 102 cm
Land Clearing Mode (w x h)152 x 140 cm

Feed SystemSpecifications
Hopper Length14’ 3"
Hopper Width60"
Hopper Height5' 5"
Hopper Capacity7.0 yd³
Feed Conveyor Width5'
Feed Chain4 sections, full hopper width
Compression Roll Diameter36"
Feed Opening (w x h)60" x 40"
Land Clearing Mode (w x h)60" x 55"


Discharge SystemSpecifications
Discharge Conveyor Width152 cm
Conveyor Speed152, 183, or 213 m/min

Discharge SystemSpecifications
Discharge Conveyor Width60"
Conveyor Speed500, 600, or 700 ft/min

ProductionVolumeWeight
Green Waste383 m³125 tonnes
Scrap Board452 m3 82 tonnes

*Actual output may vary due to moisture content, material density and size, support equipment and grate size. Production rates are based on operating 50 minutes per hour.

ProductionVolumeWeight
Green Waste501 yd³ 138 US tons
Scrap Board591 yd³ 90 tons

*Actual output may vary due to moisture content, material density and size, support equipment and grate size. Production rates are based on operating 50 minutes per hour.

Optional Equipment
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Tow Dolly
Optional Equipment
Magnetic Head Pulley
LED work Lights
Dust Control
Crossbelt Magnet
Scrap Metal collection box
Tow Dolly

UNITS:

All specifications subject to change without notice.

Features

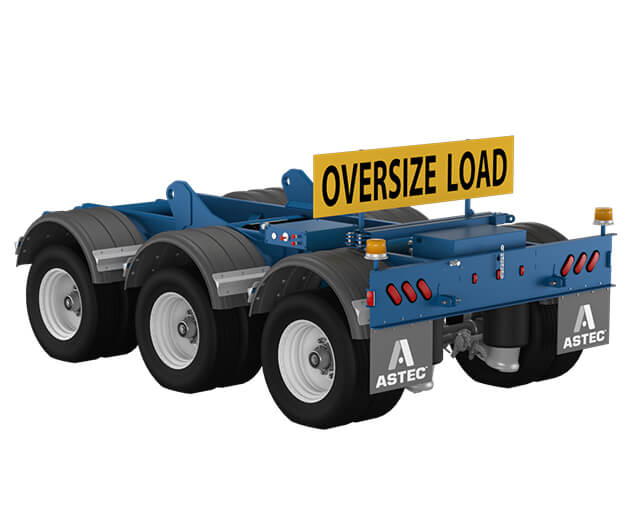

  • Tow Dolly Feature

    Tow Dolly

    Redesigned and enhanced transportation dolly features a powered coupling system and is compatible with the 2710E and 5710E models.
    Tow Dolly Feature
  • A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process

    3-Stage Grinding Process

    The powerful up-turn 3-stage grinding process provides better fracturing of material and a more consistent product, giving you just the product your buyers want.

    A diagram showing Astec's Peterson Horizontal Grinder's 3-Stage Grinding Process
  • A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

    Impact Release System Protects Your Investment

    The air bags on the patented Astec Impact Release System provide uniform grinding and protection from contaminated feedstock, a feature unique to Peterson grinders.

    A close-up view of a Peterson Horizontal Grinder's Impact Release System airbag from a 4710D

  • The Second Line of Defense: The Impact Cushion System

    Urethane cushions and shear pins help protect the mill from catastrophic damage in the event of a severe impact from contaminants in the feedstock.

Media Gallery

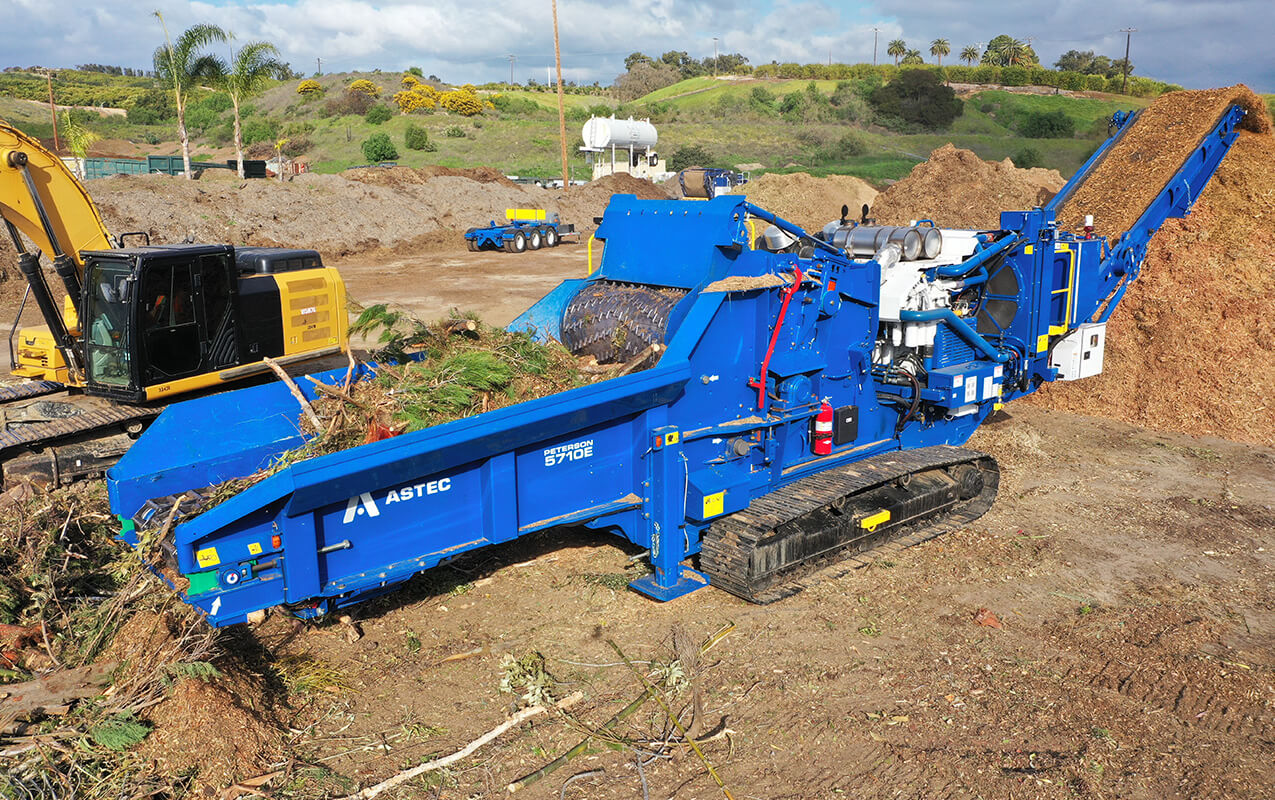

5710E Working
5710E Working
UNITS:
Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders
 5710E1710D2710D4710D6710D
Standard EngineCAT C27 Tier IV, 783 kWCAT C9.3B EU Stage V, 339 kWCAT C15 Tier IV, 580 hpCAT C18 Tier IV, 563 kWCAT C32 Tier IV, 839 kW
Scrap Board Production*452 m³141 m³247 m³325 m³499 m³
Feed Opening 152 x 102 cm 137 x 69 cm153 x 81 cm152 x 97 cm168 x 127 cm
Weight43,091 kg21,092 kg28,123 kg35,834 kg48,987 kg

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.

Compare Horizontal Grinders
 Current Item
Compare Horizontal Grinders
 5710E1710D2710D4710D6710D
Standard EngineCAT C27 Tier IV, 1050 hpCAT C9.3B Tier IV, 455 hpCAT C15 Tier IV, 580 hpCAT C18 Tier IV, 755 hpCAT C32 Tier IV, 1125 hp
Scrap Board Production*591 yd³185 yd³ 368 yd³ 425 yd³653 yd³
Feed Opening 60” x 40"54” x 27”60” x 32” 60” x 38”66” x 50”
Weight95,000 lbs46,500 lbs 68,100 lbs
79,000 lbs108,500 lbs

*Actual production output may vary due to moisture content, material density and size, support equipment, grate size, and equipment options. Production rates are based on operating 50 minutes per hour with the standard diesel engine.
