Peterson 4300B Drum Chipper

Overview

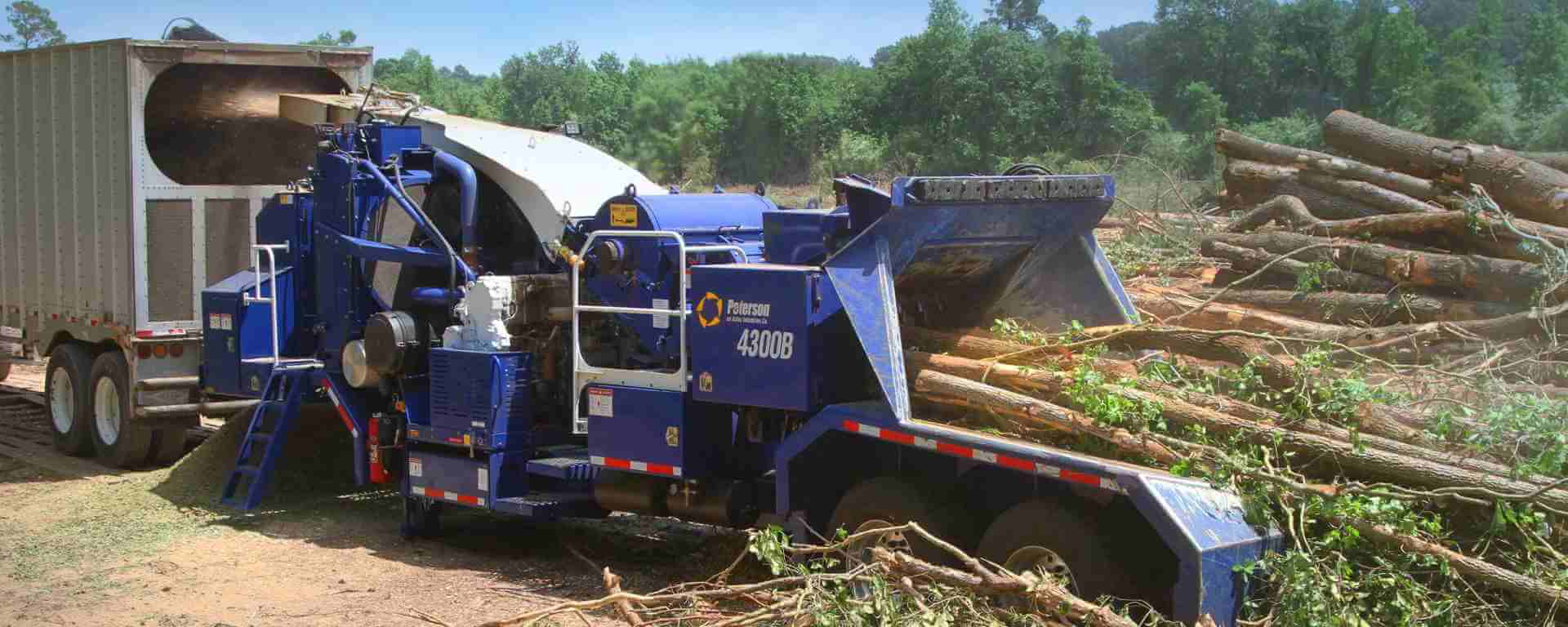

The 4300B drum chipper is the latest in a long line of high quality chipping and grinding machines produced by Peterson. The 4300B drum chipper is suited for high volume biomass producers who have a wide variety of feed material, from logs up to 26 inches (61 cm) in diameter, to brush and small feedstock.

The chipper utilizes a 36 inch diameter by 40 inch wide (91 by 102 cm) drum with wear resistant AR450 wear surfaces on the drum pockets and shell. A sloped feed deck makes feeding the chipper easier. The optional material sizing bars and chip accelerator minimize oversize twigs and branches in the chips, and help ensure tight chip packing and fully loaded chip vans.

Downloads

Features

Specifications

UNITS:
DimensionsSpecifications
Operating Length1121 cm
Operating Width344 cm
Operating Height366 cm
Travel Width255 cm
Travel Length1091 cm
Travel Height367 cm
Frame Length895 cm
Front Ground Clearance118 cm
Rear Ground Clearance29 cm
Ground Clearance71 cm
Axle Spacing67 cm
Front to 5th Wheel67 cm
5th Wheel to Center Axle845 cm
5th Wheel Clearance Radius203 cm
5th Wheel Height122 cm
DimensionsSpecifications
Operating Length36' 9"
Operating Width11' 4"
Operating Height12'
Travel Width8’ 5”
Travel Length35' 9"
Travel Height12'
Frame Length29' 4"
Front Ground Clearance3' 10"
Rear Ground Clearance11"
Ground Clearance2' 4"
Axle Spacing2' 2"
Front to 5th Wheel2' 2"
5th Wheel to Center Axle27' 8"
5th Wheel Clearance Radius6' 8"
5th Wheel Height4'



Weights
Machine Weight23 586 kg
Weights
Machine Weight52,000 lbs
PowertrainSpecifcations
EngineCat C18 Tier IV 563 kW
ClutchPT Tech HPTO 15 FX
Fuel Tank Capacity1211 L
Main Hydrauic Tank Capacity394 L
System Controls
Peterson Adaptive Control System
Checkmark

Radio remote
Checkmark

Peterson+ Analytics
Checkmark



PowertrainSpecifcations
EngineCat C18 Tier IV 755 hp
ClutchPT Tech HPTO 15 FX
Fuel Tank Capacity320 gallons
Main Hydrauic Tank Capacity104 gallons
System Controls
Peterson Adaptive Control System
Checkmark

Radio remote
Checkmark

Peterson+ Analytics
Checkmark
Feed SystemSpecifications
Feed Opening (w x h)103 x 61 cm
Feed Length250 cm
Feed Height124 cm
Feed Speed Rangeup to 37 m/min
Feed Conveyor Width103 cm
Feed chain3 Sections WDH120
Compression Roll Diameter71 cm



Feed SystemSpecifications
Feed Opening (w x h)41"  x 24"
Feed Length8' 2"
Feed Height4' 1"
Feed Speed Rangeup to 120 ft/min
Feed Conveyor Width3' 4"
Feed chain3 Sections WDH120
Compression Roll Diameter28"

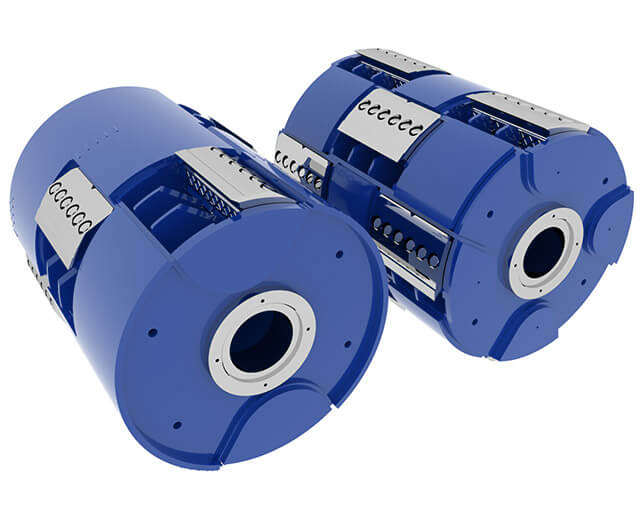

ChipperSpecifications
Drum Size91 diameter x 114 wide cm
Knife Pockets6 or 12 (staggered)
Knife SystemBabbitt or Key Knife
Chip Size6 to 32 mm



ChipperSpecifications
Drum Size36" diameter x 45" wide
Knife Pockets6 or 12 (staggered)
Knife SystemBabbitt or Key Knife
Chip Size¼” to 1¼”



Production
Chip Output59 to 109 metric tonnes

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.

Production
Chip Output60 to 120 tons per hour

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.

Media Gallery

UNITS:
Compare Drum Chippers
 Current Item
Compare Drum ChippersPeterson 4300B Drum Chipper with wheelsPeterson 4310B Drum Chipper with tracks4310B Highwalker Drum Chipper with tracksPeterson 6300B Drum Chipper with wheelsPeterson 6310B Drum Chipper with tracks
 4300B4310B4310B Highwalker6300B6310B
Standard EngineCAT C18 Tier IV, 563 kWCAT C18 Tier IV, 563 kWCAT C18 Tier IV, 563 kWCAT C27 Tier IV, 772 kWCAT C27 Tier IV, 772 kW
Production*59 to 109 tonnes59 to 109 tonnes59 to 109 tonnesup to 227 tonnes up to 227 tonnes
Feed Opening103 x 61 cm103 x 61 cm103 x 61 cm145 x 91 cm 145 x 91 cm
Weight23 586 kg 26 535 kg
26 535 kg38 555 kg 39 010 kg

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.

Compare Drum Chippers
 Current Item
Compare Drum ChippersPeterson 4300B Drum Chipper with wheelsPeterson 4310B Drum Chipper with tracks4310B Highwalker Drum Chipper with tracksPeterson 6300B Drum Chipper with wheelsPeterson 6310B Drum Chipper with tracks
 4300B4310B4310B Highwalker6300B6310B
Standard EngineCAT C18 Tier IV, 755 hp CAT C18 Tier IV, 755 hp CAT C18 Tier IV, 755 hp CAT C27 Tier IV, 1050 hpCAT C27 Tier IV, 1050 hp
Production*60 to 120 tons60 to 120 tons60 to 120 tonsup to 250 tons up to 250 tons
Feed Opening 40” x 24” 40” x 24”40” x 24” 57” x 36” 57” x 36”
Weight52,000 lbs 58,500 lbs
58,500 lbs85,000 lbs 86,000 lbs

*Actual production output may vary due to moisture content, material density and size, support equipment, and equipment options. Production rates are based on operating 50 minutes per hour.
