Store mix longer with Astec long-term storage silos. To store mix without loss of quality, Astec silos are completely sealed to prevent mix oxidation, or premature hardening of the mix, which happens when the mix is exposed to air.

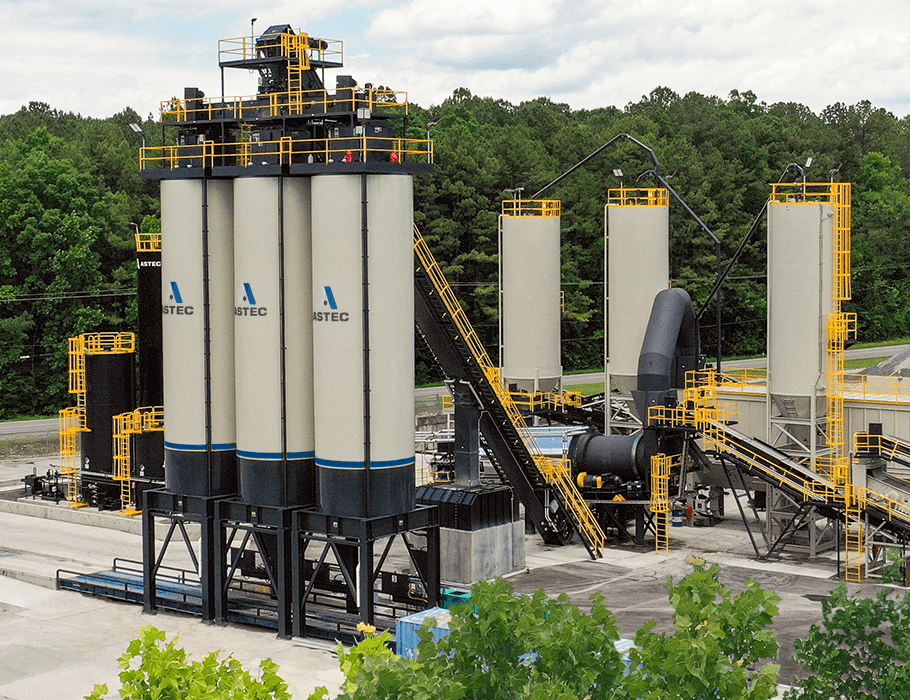

Astec Long Term Asphalt Storage Silos
Applications
Asphalt Mixing
A thermal mixing process is required to turn aggregates and liquid AC into an asphalt pavement mix for road construction. This makes an asphalt mixing plant necessary for road construction. The complete line of Astec asphalt mixing plants, and its range of capacities and features, gives you the choices and flexibility to create your optimum solution.

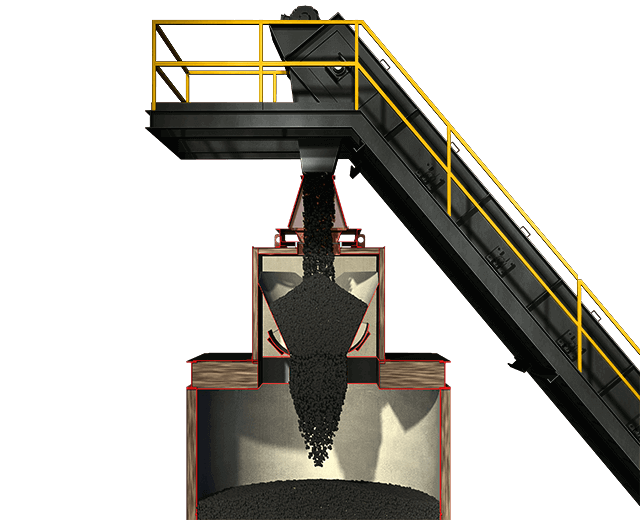

The mix moves by drag conveyor or bucket elevator into a three-ton batcher atop the silo. When full, the batcher releases the slug of mix. Mix drops through the rapid-opening double-clam gate into the silo and flattens on impact. Astec’s double-clam gates are not like conventional pinch-closed style double-clam gates. Astec’s overlapping gates slice through material flow as the gate closes. This slicing action and overlapping gates result in better gate wear resistance when compared to pinch-closed style gates. The double gates also center the drop into the silo and form a flattened mix surface, which prevents mix segregation.
Cone Design Prevents Mix Segregation
Astec silo cones are taller, because they are built with a steeper angle than other brands. To achieve optimal mass material flow, Astec, with the aid of third party research, determined that the precise angle at which the entire column of mix evenly flows through the cone is 66 degrees. This steeper angle of the cone provides true first-in/first-out inventory rotation, there is no mix buildup on silo walls, and mass flow load-out minimizes mix segregation. Mass flow occurs when mix flows out across the entire silo cross-section and that only happens with the correct cone angle.
Keeping Mix Hot

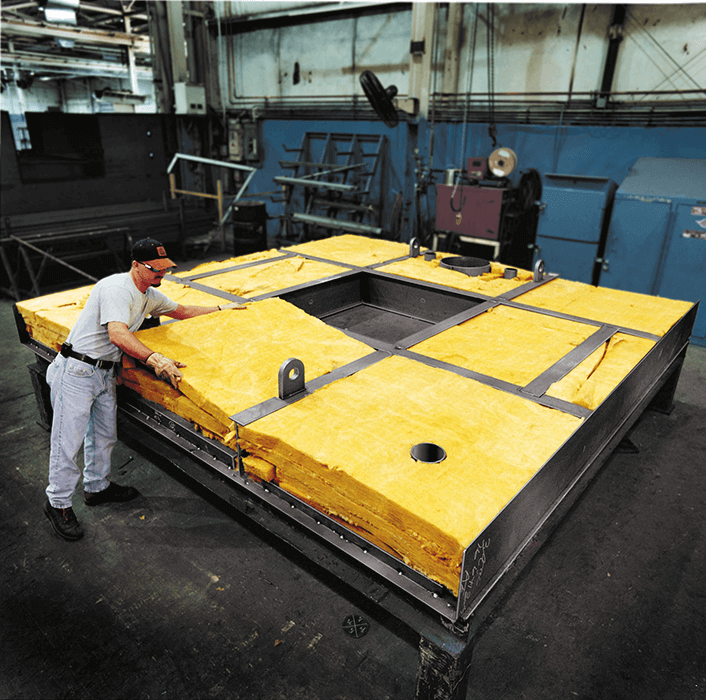

Twelve inches of insulation at silo tops, four inches around the cone, and six inches along the cylinder keep the mix hot. Batchers are insulated as well, because uninsulated batchers are a major source of heat loss. Two layers of stiff sheet insulation are staggered to eliminate heat-leaking seams along the silo cylinder. Astec uses thick, high R-value, non-compressed insulation.
Sealed Silos
In storage mode, it is crucial to seal the silo. Oxidation, or premature hardening of the mix, happens in the silo when the mix is exposed to air. In storage mode, Astec silos are completely sealed from top to bottom.

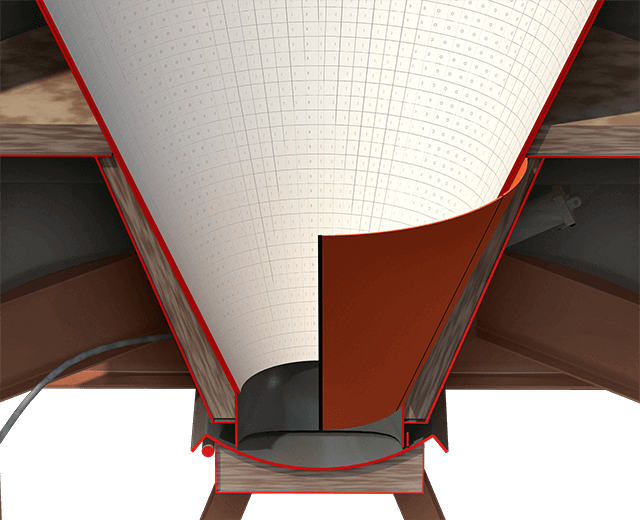

The exclusive design of Astec’s discharge gate (U.S. patent #3,949,907) completely seals the bottom of the cone when the silo is in storage mode. The heated and insulated discharge gate closes to completely cover the cone opening. Oil is pumped into the gate to seal the bottom silo opening. The oil reservoir is located by the silo legs, and a motor-driven pump moves the oil from the reservoir into the gate. A sensor monitors the oil level in the gate and controls the pump. When the silo is taken out of storage mode, the pump is reversed and the oil is withdrawn from the gate.
