Grizzly Scalping Screens

Overview

Featuring a rugged, heavy-duty design, Astec inclined grizzly scalping screens can easily handle the high tonnage and lump size required at large primary crushing stations.

Utilizing the TL vibrator mechanism, both single- and dual-shaft models are available. Deep section grizzly bars allow up to 6" nominal spacing without interference from cross members.  Astec inclined grizzly scalping screens are reliable and low maintenance with proven performance.

Applications

  • Aggregates

    There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
      Learn More
    • Construction

      Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
      Learn More

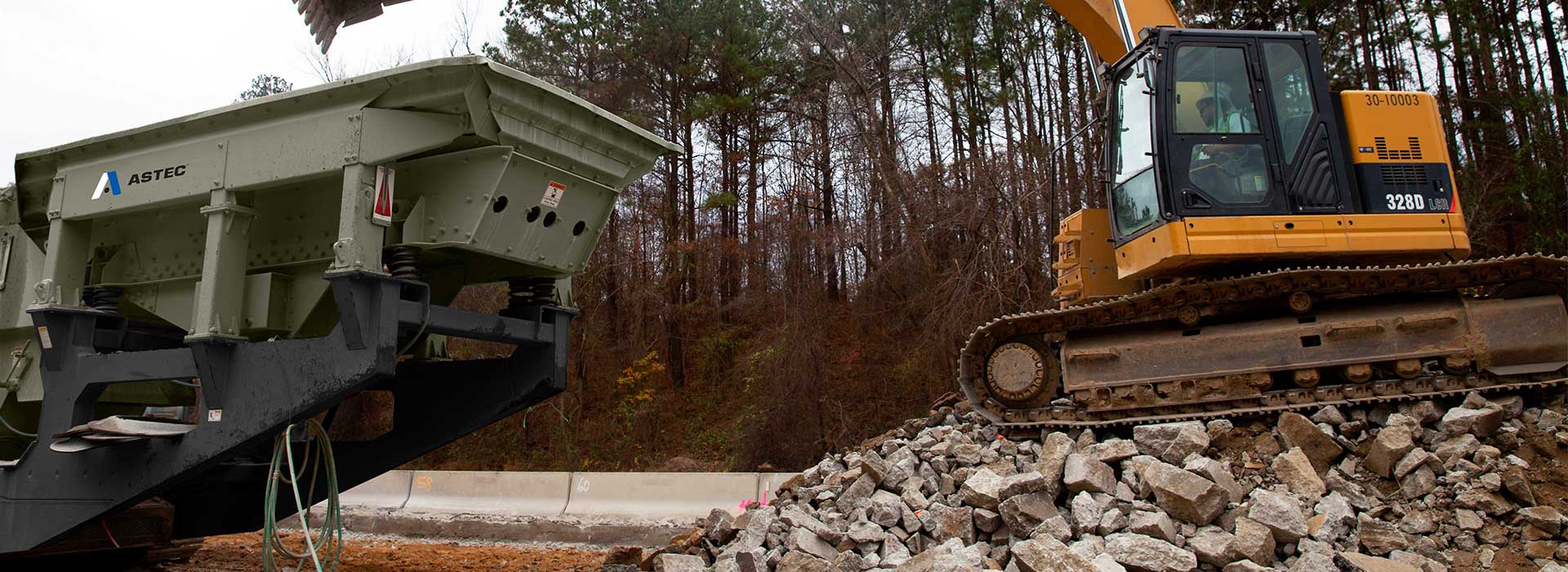

    • Concrete Recycling

      Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
        Learn More
      • Construction Aggregates

        Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
          Learn More
        • Construction and Demolition (C&D) Recycling

          Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
          Learn More
        • Pioneer® jaw crusher in concrete recycling application

          Crushed Stone

          Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Sand & Gravel

            Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
              Learn More
            • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

              Recycled Asphalt Pavement

              The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Number of Decks Number of Shafts Width (mm) Length (mm) Power Required (kW) Bearing Size (mm)
            4102-26 2 1 1,220 3,050 19 130
            5122-32 2 1 1,520 3,660 22 160
            5162-26-2 2 2 1,520 4,880 19 x 2 130
            6122-32 2 1 1,830 3,660 30 160
            6162-26-2 2 2 1,830 4,880 22 x 2 130
            7162-32-2 2 2 2,130 4,880 22 x 2 160
            Model Number of Decks Number of Shafts Width (ft) Length (ft) Power Required (hp) Bearing Size (mm)
            4102-26 2 1 4 10 25 130
            5122-32 2 1 5 12 30 160
            5162-26-2 2 2 5 16 25 x 2 130
            6122-32 2 1 6 12 40 160
            6162-26-2 2 2 6 16 30 x 2 130
            7162-32-2 2 2 7 16 30 x 2 160
