Heatec HC & HCS Heaters
Heatec HC & HCS heaters are direct fired heaters designed around a helical coil. Our coil meets ASME code. These heaters were originally designed to be used at asphalt plants for mixing road grade asphalt, but because of their versatility they can be found in a number of different facilities for a variety of applications. Their popularity comes from their simplicity, efficiency, low maintenance and relatively low cost. Heat transfer mediums used can be thermal fluid (hot oil), glycol mixtures, or gases. They are also used as process heaters, directly heating the process fluid or gas.
MODELS AND OUTPUTS
Nine standard models are available. Rated thermal outputs range from 0.7 to 4 million Btu per hour. All can be customized to meet your specific needs.
TWO BASIC CONFIGURATIONS
Heatec helical coil heaters are available in two basic configurations: HC and HCS. The HC configuration has a manifold that enables the heater to operate with multiple thermal fluid circuits.

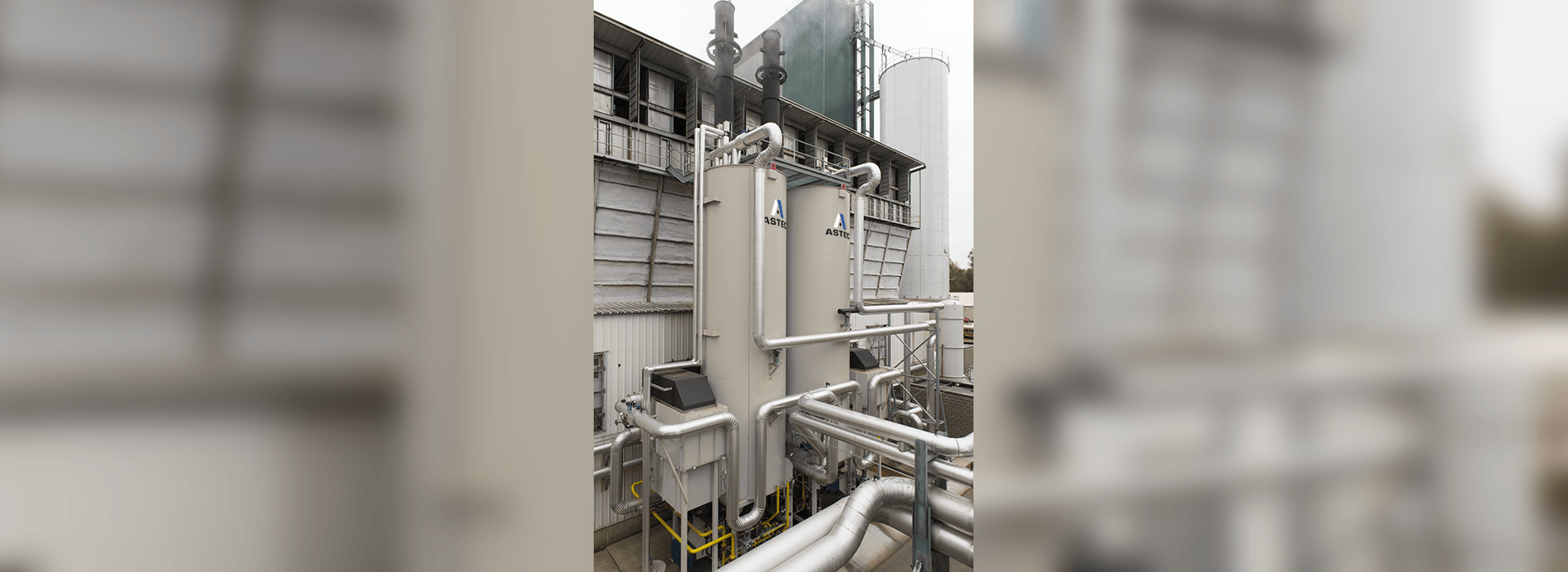

Textiles and PackagingHeating and thermal process are indispensable in the production of textiles and packaging. In addition, precise and accurate temperature and control systems are often required for efficiency and safety. Astec has a variety of products and systems well-suited to textile and packaging production.Learn More
Roofing and Construction ProductsThroughout the asphalt/roofing industry efficient heating systems and services are needed as well as reliable storage systems. Astec has an extensive background supplying equipment designed for heating and storing liquid asphalt as well as experience with all types of thermal systems.Learn More

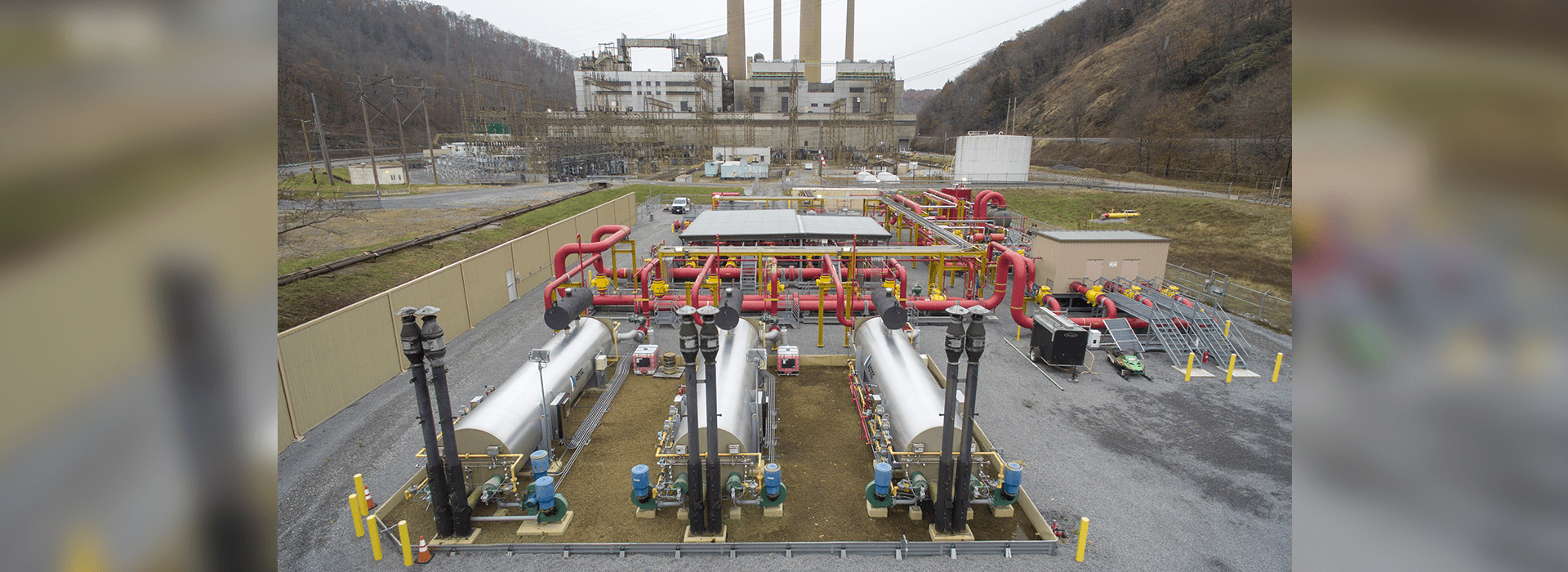

Power GenerationPower generation is essential to modern life and industry. The power generation industry depends on heating equipment and systems to meet its demands. Astec serves the power and electricity generation industry with a number of products such as thermal fluid heaters, process heaters, heat economizers, and expansion tanks and pump skids.Learn More

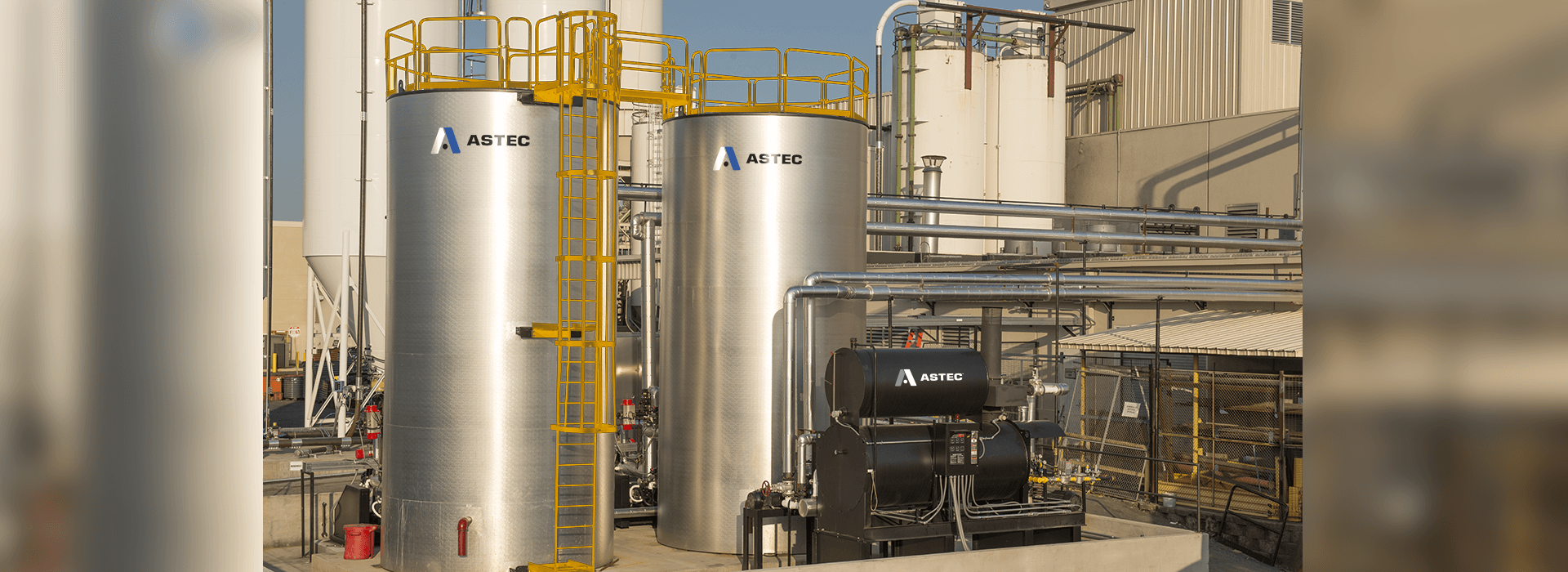

Plastics and ThermoplasticsThe plastics industry relies on industrial heaters to mold, melt, mix, and prep plastics. Astec manufactures and installs an extensive range of thermal processing equipment for the production of plastics and thermoplastics.Learn More

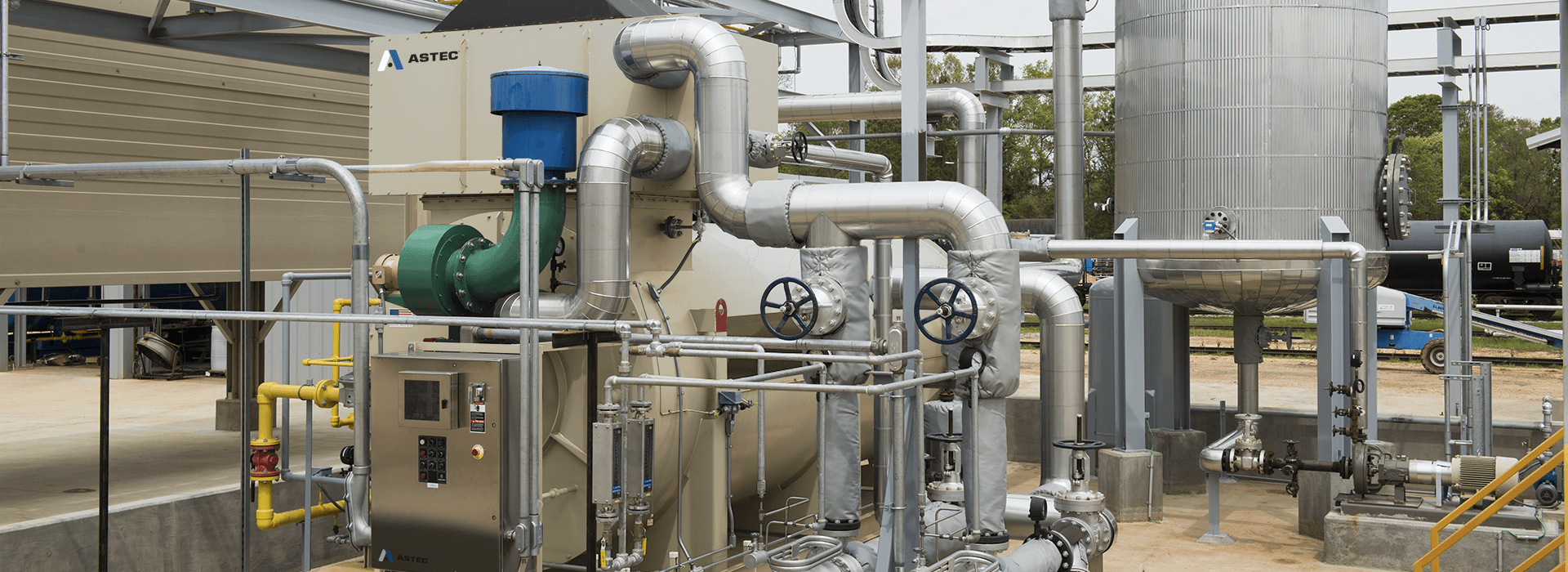

PetrochemicalThe petrochemical industry is fundamental to our contemporary world. It supplies many of the raw materials that we rely on: plastics, medicines, lubricants, synthetic rubbers, and synthetic fibers. The petrochemical industry relies heavily on various thermal processes and heat-controlled methods to produce its vital materials. Astec components used in the petrochemical industry include heaters, controls, steam generators, and heat recovery systems.Learn More

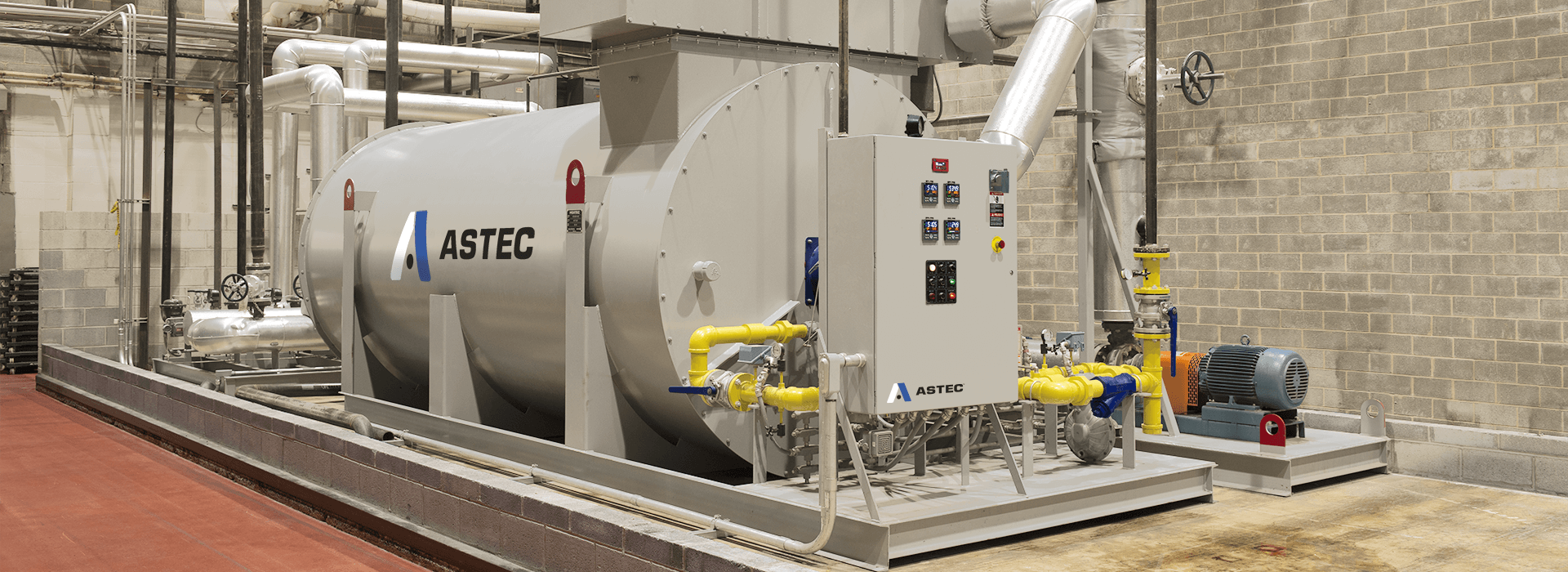

Paints, Resins and AdhesivesProduction of paints, resins, and adhesives involves complex chemical processes that demand sophisticated, reliable thermal processing systems. Astec has a long history of producing trustworthy and efficient thermal systems that can be used in the production of paints, resins, and adhesives.Learn More

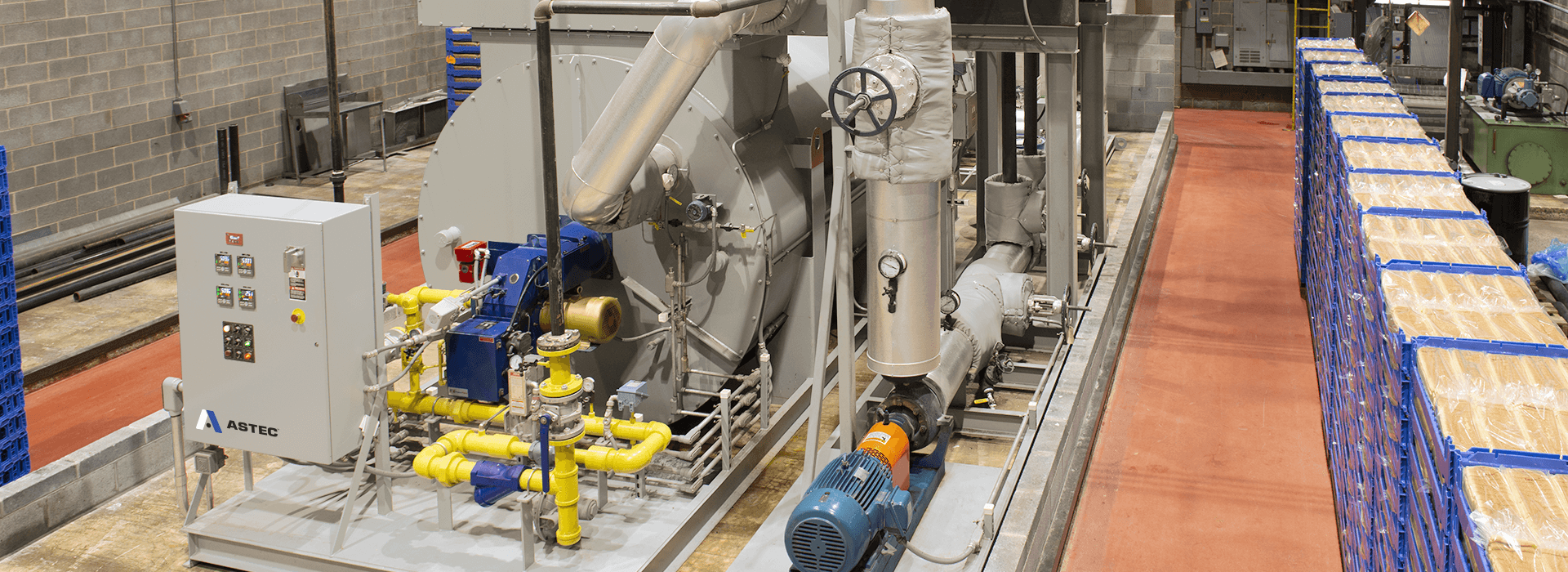

Food and Beverage ProductionLarge-scale, commercial food and beverage production relies on thermal processing techniques to ensure the safety of consumables. Reliable and efficient systems are critical to ensure safe food and beverage production. Astec has extensive experience with supplying systems for large-scale food and beverage production.Learn More
Crude Oil and Natural Gas ProcessingOil refining and gas processing are procedures that turn these complex chemical mixtures into a range of usable fuels. Refining and processing crude oil and natural gas require highly reliable and efficient heating systems and services. Astec produces a number of reliable and efficient components for use in oil refining and gas processing including heaters, tanks, heat recovery systems, and expansion tanks.Learn More

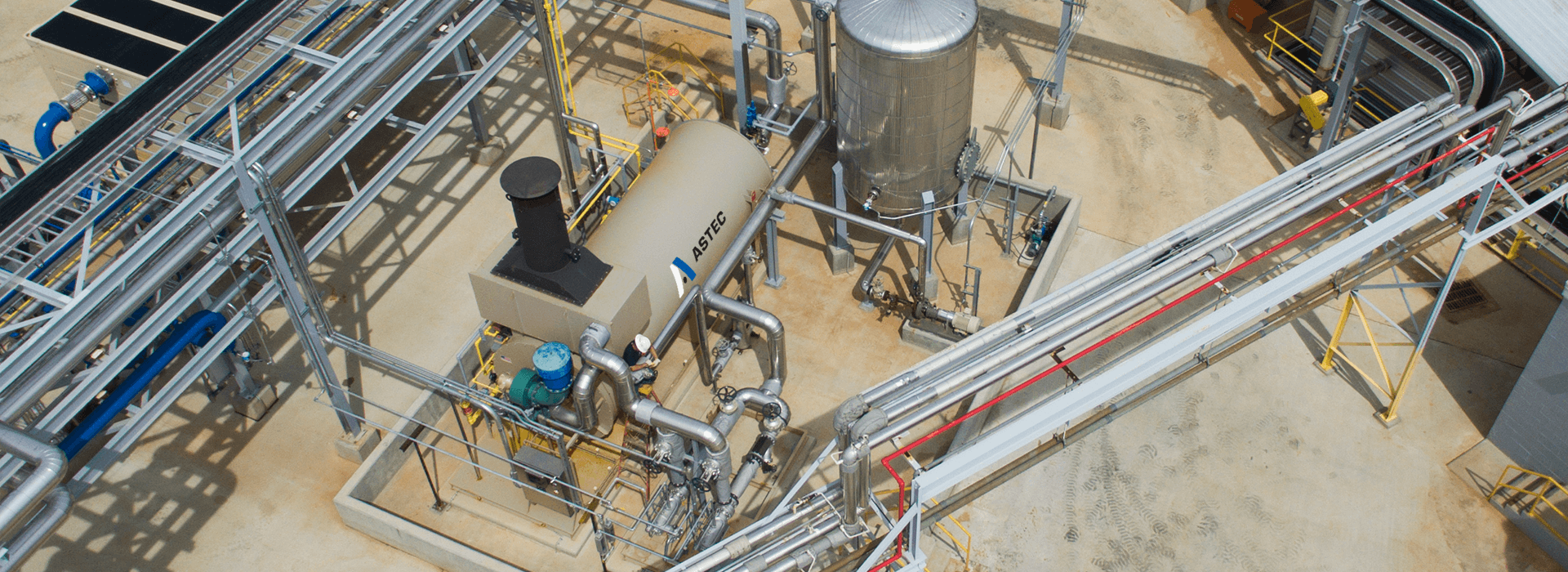

ChemicalChemical plants convert oil, natural gas, air, water, metals, and minerals into chemical products which are used to manufacture numerous consumer products and play an important part in agriculture, manufacturing, construction, and service industries. The transfer of heat is an essential component of all chemical processes. An efficient heat transfer system is a key to manufacturing many chemicals.Learn More
Asphalt MixingA thermal mixing process is required to turn aggregates and liquid AC into an asphalt pavement mix for road construction. This makes an asphalt mixing plant necessary for road construction. The complete line of Astec asphalt mixing plants, and its range of capacities and features, gives you the choices and flexibility to create your optimum solution.Learn More
Agriculture and FertilizerModern agriculture practices utilize thermal processes to accomplish a number of goals. Today's sophisticated systems help ensure both safe and efficient production both in the field or in the production of fertilizers. Astec has a variety of products and systems well-suited to the agriculture industry and fertilizer production.Learn More
Heatec HC & HCS Efficiency
A hallmark of our helical coil heater is high thermal efficiency. Thermal efficiencies of our standard heaters range up to 85 percent LHV, depending upon fluid outlet temperature and fuel. Thermal efficiency is the total amount of heat produced by the burner versus the portion actually transferred to thermal fluid flowing through the coil. Thus, in our heaters, up to 85 percent of the total heat is transferred to the thermal fluid. Increasing efficiency reduces fuel usage.

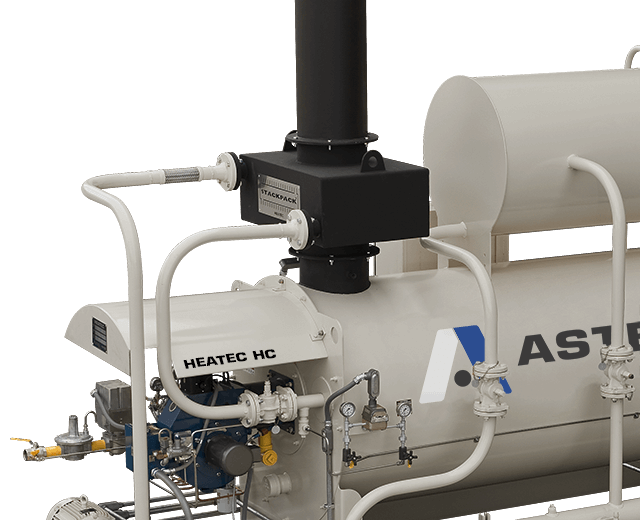

Adding a STACKPACK™ heat exchanger (economizer) boosts thermal efficiency another 5 percent. It makes our current heater super-efficient. That extra percentage reduces monthly fuel usage by 261 gallons of No. 2 fuel oil or 345 therms of natural gas. The Stackpack heat exchanger usually pays for itself in a year or less.
Heatec HC & HCS Heater Controls
Heater controls automatically maintain the operating temperature set by the operator. Accuracy is within a half percent of set temperature. Numerous safety features ensure heater operation is always within prescribed limits. Heaters shut down automatically if an abnormal operating condition occurs. Switches and sensors in a limit circuit ensure normal operation. They monitor burner flame, thermal fluid temperature, exhaust gas temperature, flow of thermal fluid, and combustion air pressure. Main controls are in a UL approved NEMA-4 panel
Burner management controls provide proper and safe operation of the burner. They include a display, burner control, programmer, annunciator and flame scanner. The burner control uses a microprocessor for its management functions. The processor provides the proper burner sequencing, ignition and flame monitoring protection. The controls provide important messages about the operating status of the heater. If there is an alarm condition, a message will appear on the display.

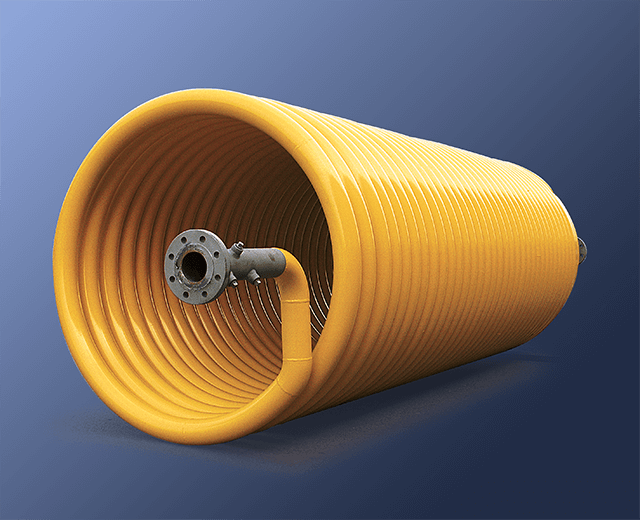

Heatec HC & HCS Helical CoilHelical coils in our heaters set us apart from others that produce helical coil heaters for the HMA industry. We are the only heater manufacturer that builds all coils to ASME code. Certification is optional. Coils in HCS heaters have a three year warranty. Coils in HC heaters have a five year warranty.
|MAX OUTPUT||FUEL USAGE||APPROXIMATE SIZE||NET WEIGHT|
|MODEL||BTU/HOUR||NO. 2 OIL GALLONS||NAT. GAS CUBIC FT/HR||LENGTH||WIDTH||HEIGHT||PUNDS|
|MAX OUTPUT||FUEL USAGE||APPROXIMATE SIZE||NET WEIGHT|
|Model||BTU/HOUR||NO. 2 OIL|
