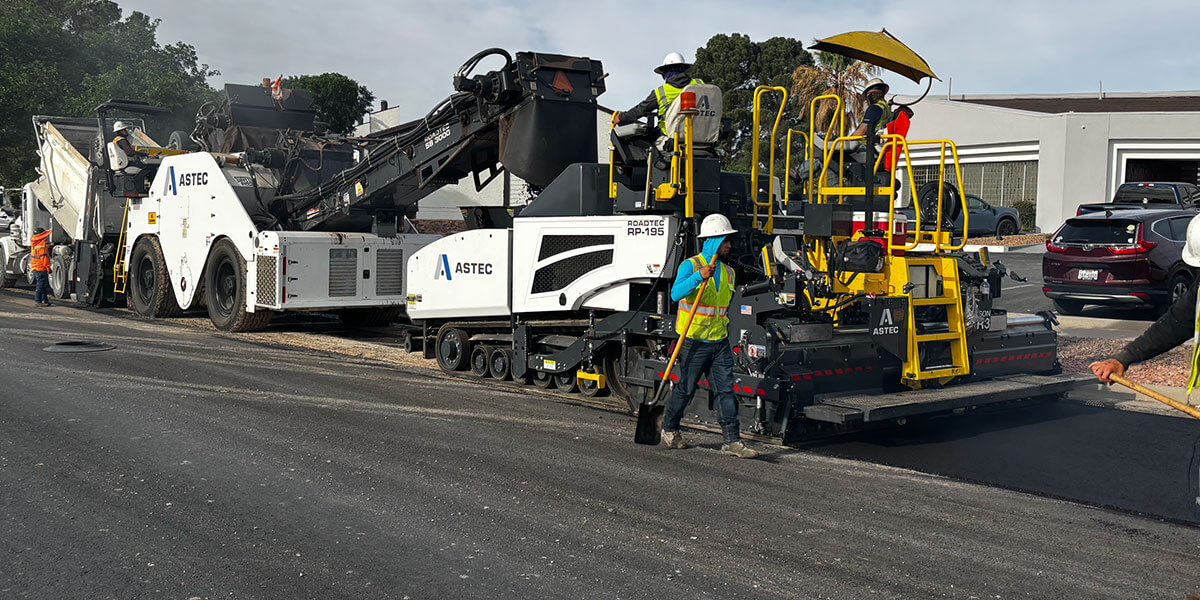

EZR3 Highway Class Screed

Overview

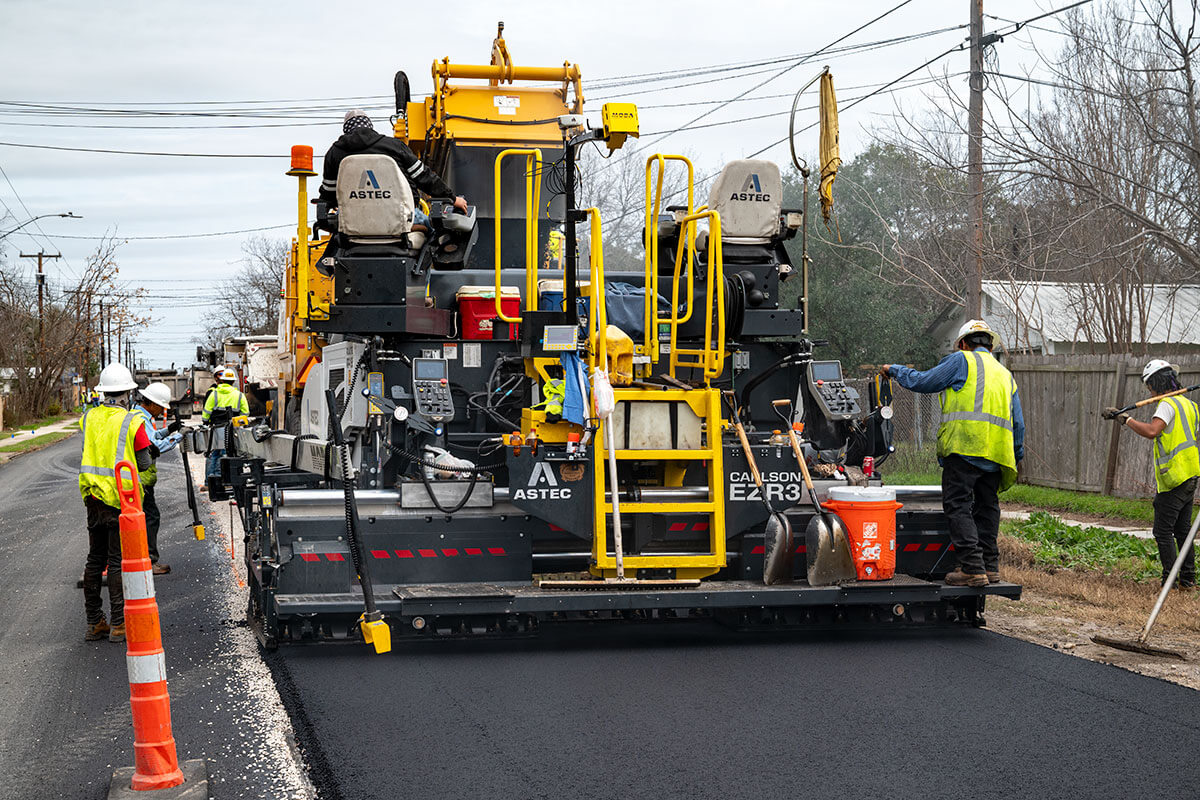

The EZR3 is a cutting-edge rear-mount highway class screed engineered to deliver superior paving performance, enhanced stability, and unmatched mat quality. Designed with a focus on balance, the EZR3 Screed improves tractor stability and durability, ensuring consistent, high-quality results with every pass. Its rear-mount design minimizes the need for frequent adjustments, holding settings longer and reducing downtime.

Applications

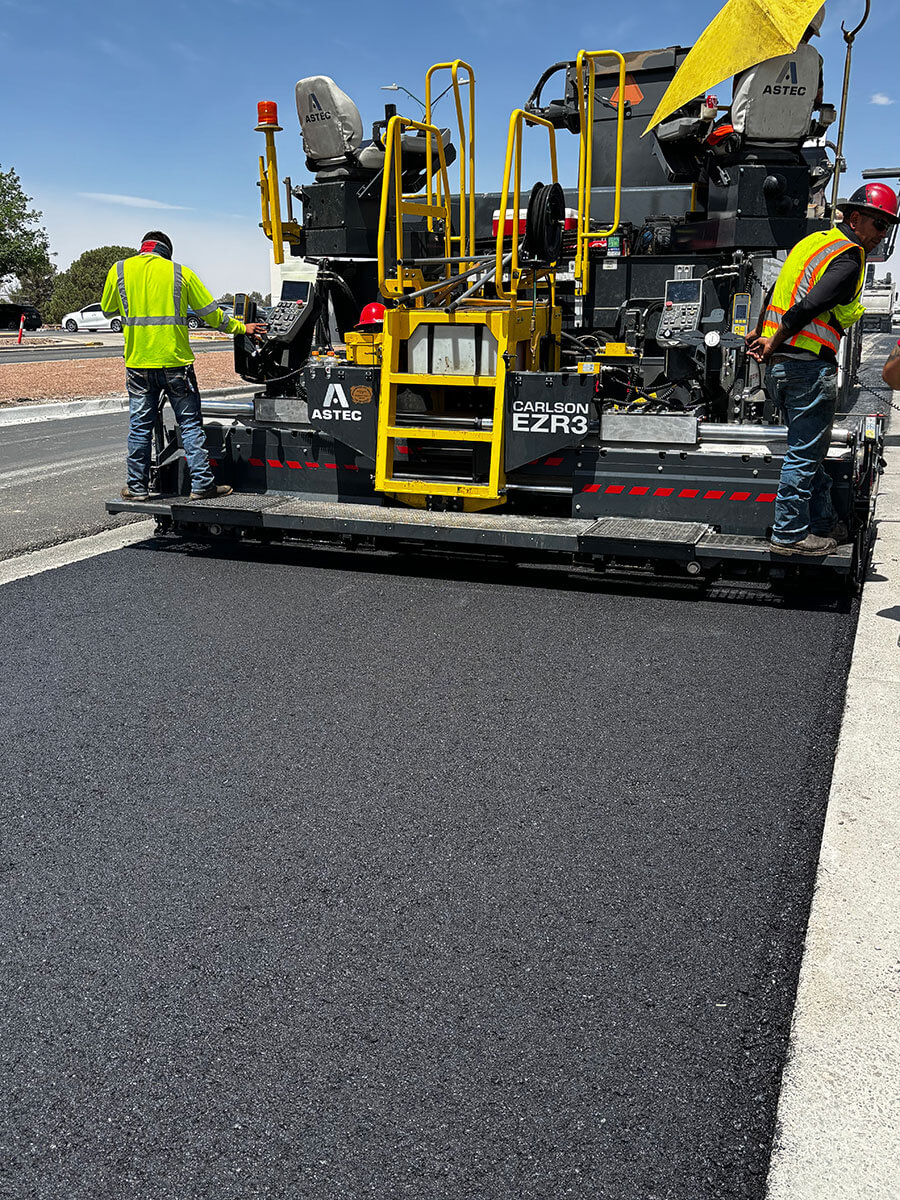

Highway Paving

Highway class paving requires pavers that are strong, powerful and productive. These large-scale paving projects include interstates, expressways and superhighways. Highway class paving can range from one lane to multi-lane projects. These applications require pavers with large hoppers, wide paving widths and a broad scope of screed compatibility.
Learn More

Key Specifications

Components	Specifications
Standard Pave Width	2.43m to 4.72m
Maximum Pave Width	6.7m
Vibration	4 Motors @ 0-3000vpm
Power Crown	76.2mm Crown/25mm Invert
Maximum Extension Slope	15% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	3697kg
Screed Depth (w/Endgates)	2.43m
Screed Plate Depth	508mm
Walkway Depth	521mm
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	8ft to 15.5ft
Maximum Pave Width	22ft
Vibration	4 Motors @ 0-3000vpm
Power Crown	3in Crown/1in Invert
Maximum Extension Slope	15% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	8,150lbs
Screed Depth (w/Endgates)	8ft
Screed Plate Depth	20in
Walkway Depth	20.5in
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	3.05m to 5.94m
Maximum Pave Width	9.14m
Vibration	4 Motors @ 0-3000vpm
Power Crown	76.2mm Crown/25mm Invert
Maximum Extension Slope	15% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	4128kg
Screed Depth (w/Endgates)	2.53m
Screed Plate Depth	508mm
Walkway Depth	521mm
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

Components	Specifications
Standard Pave Width	10ft to 19.5ft
Maximum Pave Width	30ft
Vibration	4 Motors @ 0-3000vpm
Power Crown	3in Crown/1in Invert
Maximum Extension Slope	15% Positive / 5% Negative
Vertical Extension Height	Hydraulic
Screed Weight	9,100lbs
Screed Depth (w/Endgates)	8.3ft
Screed Plate Depth	20in
Walkway Depth	20.5in
Power Outlets	4 Outlets (Depending on tractor)
Power Output	120 v @ 1200 watts while heating

UNITS:

All specifications subject to change without notice.

Features

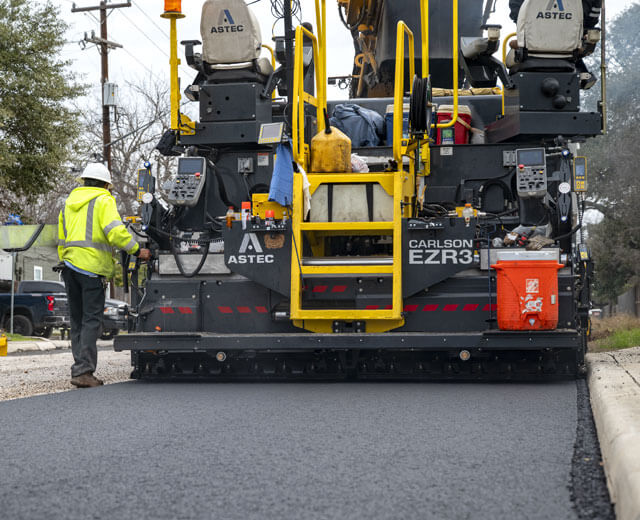

Mat Quality
- Optimized Mat Quality: Maintains angle of attack even during full-width applications.
- Class-Leading Endgate: Free-floating design with narrow or wide width options and four runner configurations to suit diverse applications.
- Improved Ride Quality: Delivers measurable improvements in smoothness and texture.

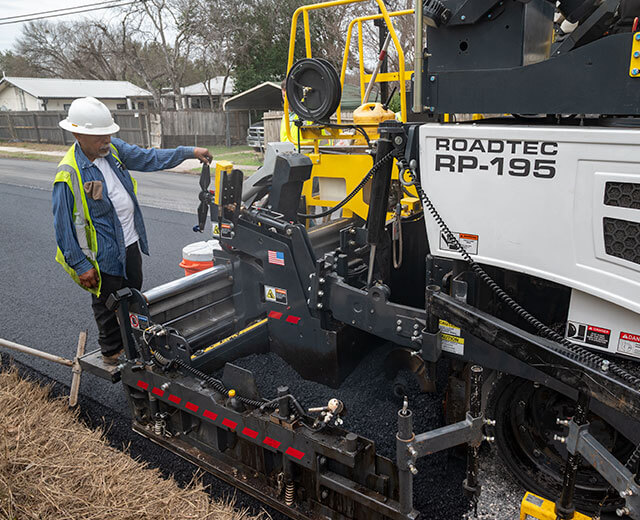

Contractor Focus
- Material Visibility: Lower profile improves visibility of material flow for better control.
- Rear-Mount Advantage: Screed and extension plates maintain uniform depth, reducing adjustment needs.

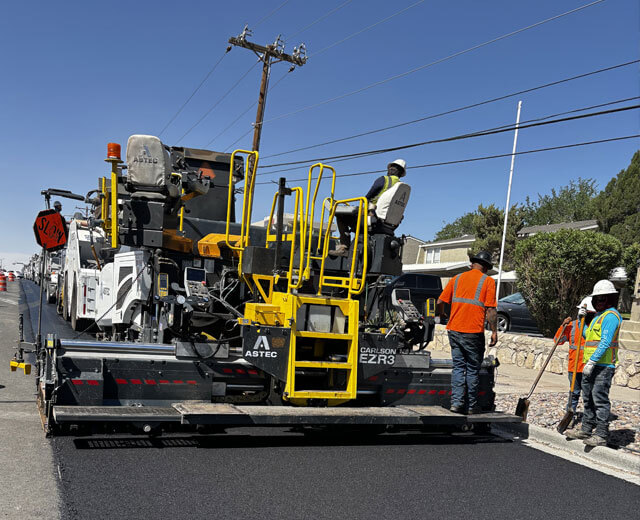

Wide Width Ability
- Enhanced Stability: Supports wider paving widths with minimal deflection for smoother, flatter mats.
- Balanced Design: Enhances tractor balance while boosting strength and durability.

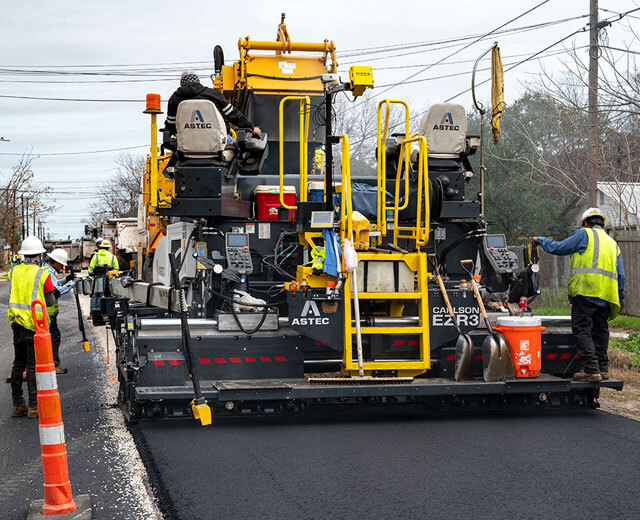

Serviceability & Adjustability
- Easily accessible adjustment points for on-the-fly texture and density control.
- Multiple rows of screed plate adjustment points for perfect leveling and extended lifecycle.
- Heating elements are replaceable without removing the screed plate.
- Industry-leading surface area extension slide bushings for maximum stability and longevity.
- Simplified single-stage extension design for easier parallel alignment and flatter pavements.
- Stairway/catwalk designed to improve strength & stability, adjustability, service access, and maintenance.
