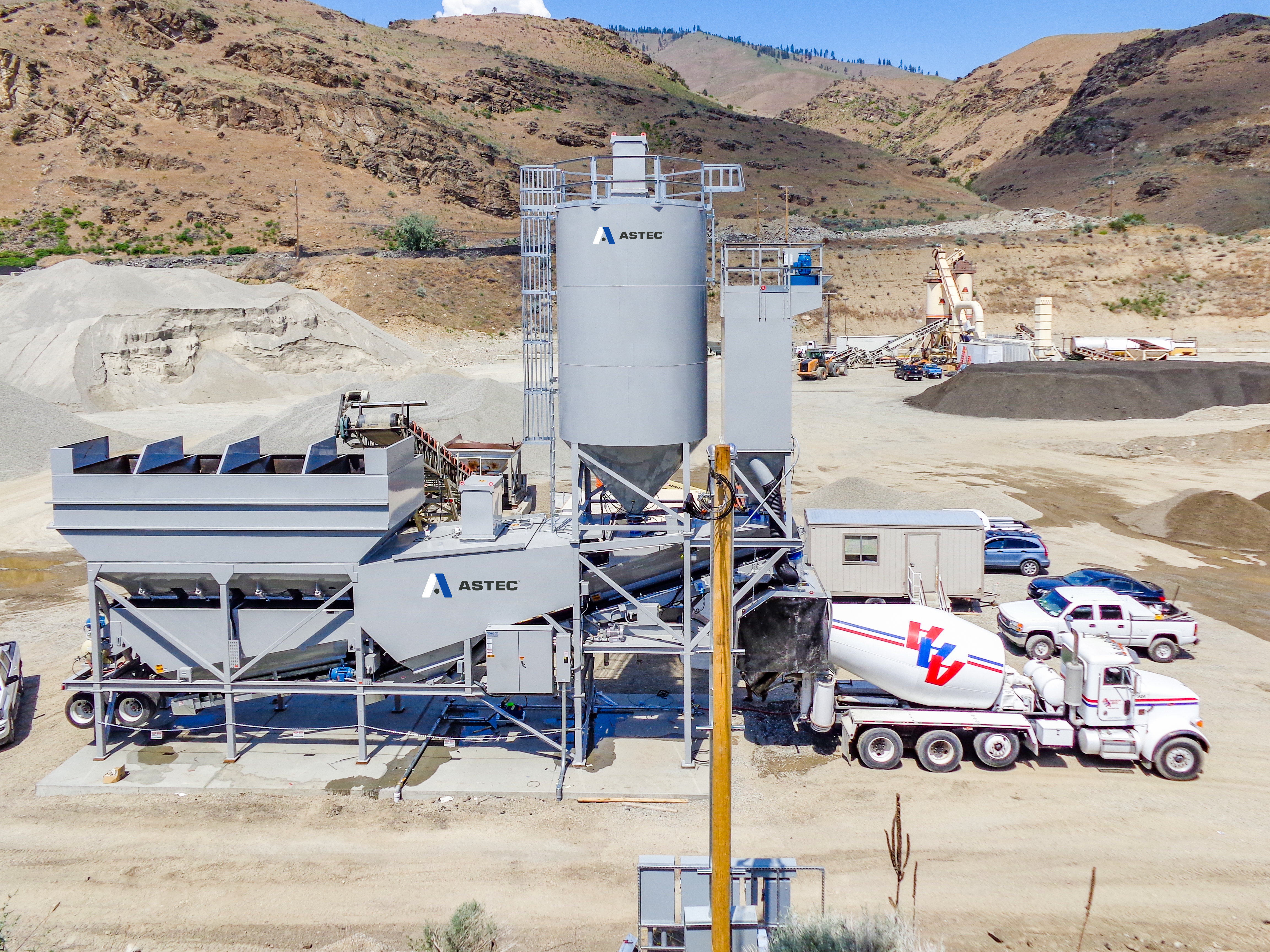

CON-E-CO® LO-PRO Series

Overview

The LO-PRO’S ultra-strong, unitized construction gives this plant tremendous built-in expansion capability!

Dust control systems, unitized cement silos and aggregate storage modules – all may be added  to your LO-PRO with simple bolt-on erection. This gives your LO-PRO the ultimate capacity needed for a permanent installation. And the LO-PRO’S compact base size makes it perfect for enclosing where cold weather or environmental restrictions are an issue. When you own a LO-PRO, you will never be stuck with a plant your business has outgrown.

Applications

  • Road Building - Concrete

    Astec's comprehensive line of concrete plants delivers high-quality and durability for the roadbuilding industry with an extensive selection of high-production plants and mixers.

    Learn More
  • Astec BMH EG Dry Batch Concrete Plant

    Ready Mix Concrete

    Many plants in Astec's extensive concrete product line are well-suited to ready mix operations.

    Learn More
  • Construction

    Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
    Learn More

Downloads

Features

Specifications

UNITS:
ModelPRODUCTION CAPACITY
BATCHER CAPACITY
AGGREGATE BATCHER CONVEYOR
AGGREGATE DISCHARGE CONVEYOR
CEMENT BATCHER
RECIRCULATING SCREW
CEMENT
FEEDER SCREWS
CEMENT AERATIONWATER METERSTORAGE BIN
CAPACITIES
DIMENSIONSSHIPPING
DIMENSIONS
5Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 3.8 cubic meters
Cement ‐ 1 to 3.8 cubic meters
Scales ‐ Direct Load Cells
610 mm, 10 horsepower drive.
610 mm, 10 horsepower drive.
305 mm, 10 horsepowerTwo each ‐ 152 mm, 10 horsepower drive.5 horsepower, high volume, low pressure blower.77 mm diameter with up to 1,740 liters per minute    AGGREGATE HEAPED VOLUME
19 to 65 cubic meters
CEMENT I GROSS VOLUME
20 to 66 cubic meters
CEMENT II GROSS VOLUME
45 cubic meters
Towing length 13,790 mm
Towing height 4,318 mm
Towing width 2,440 mm
Empty weight, total 17,091 kg
Length 16,460 mm
Height 4,318 mm
Width 23,439 mm
12

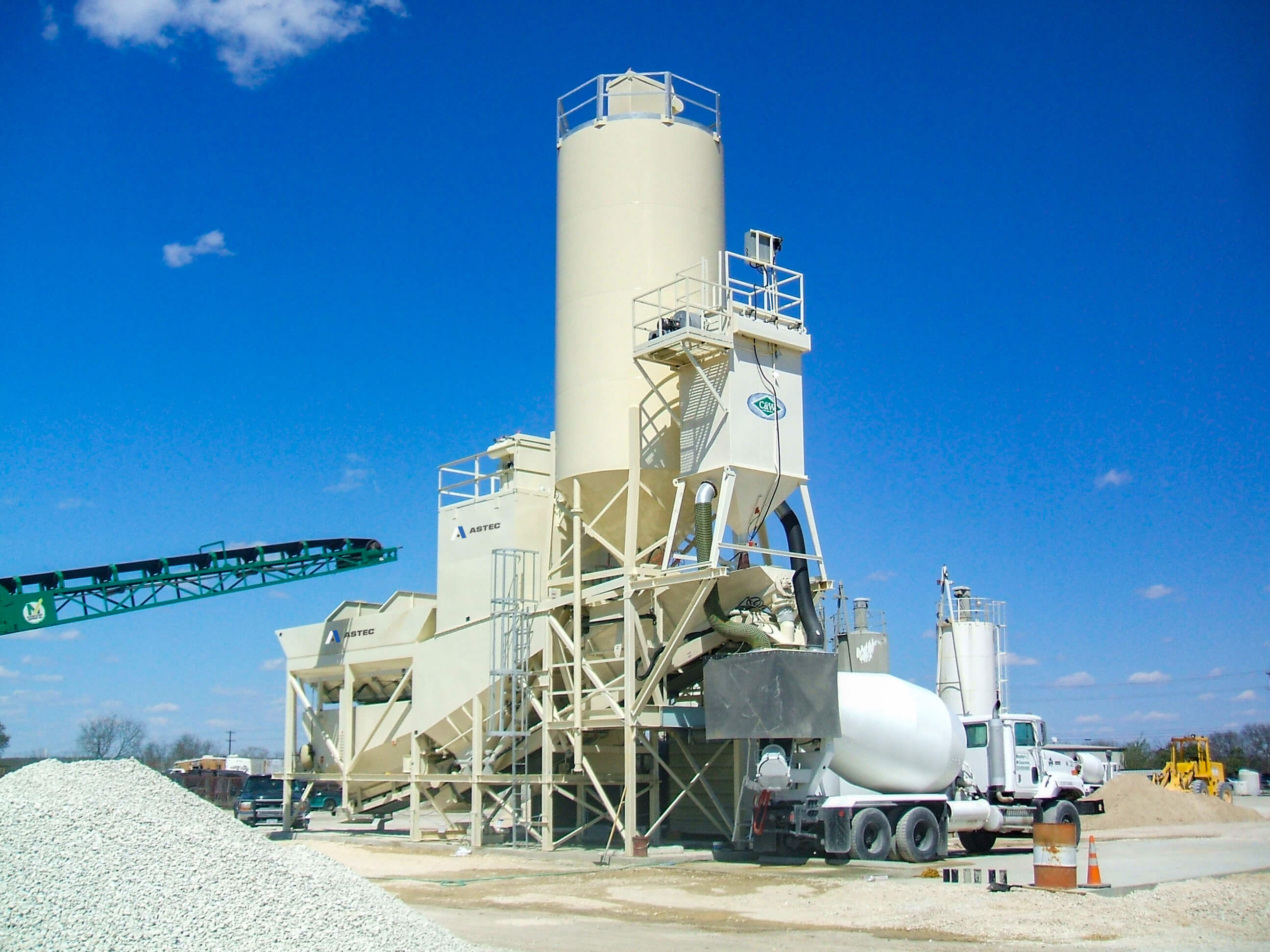

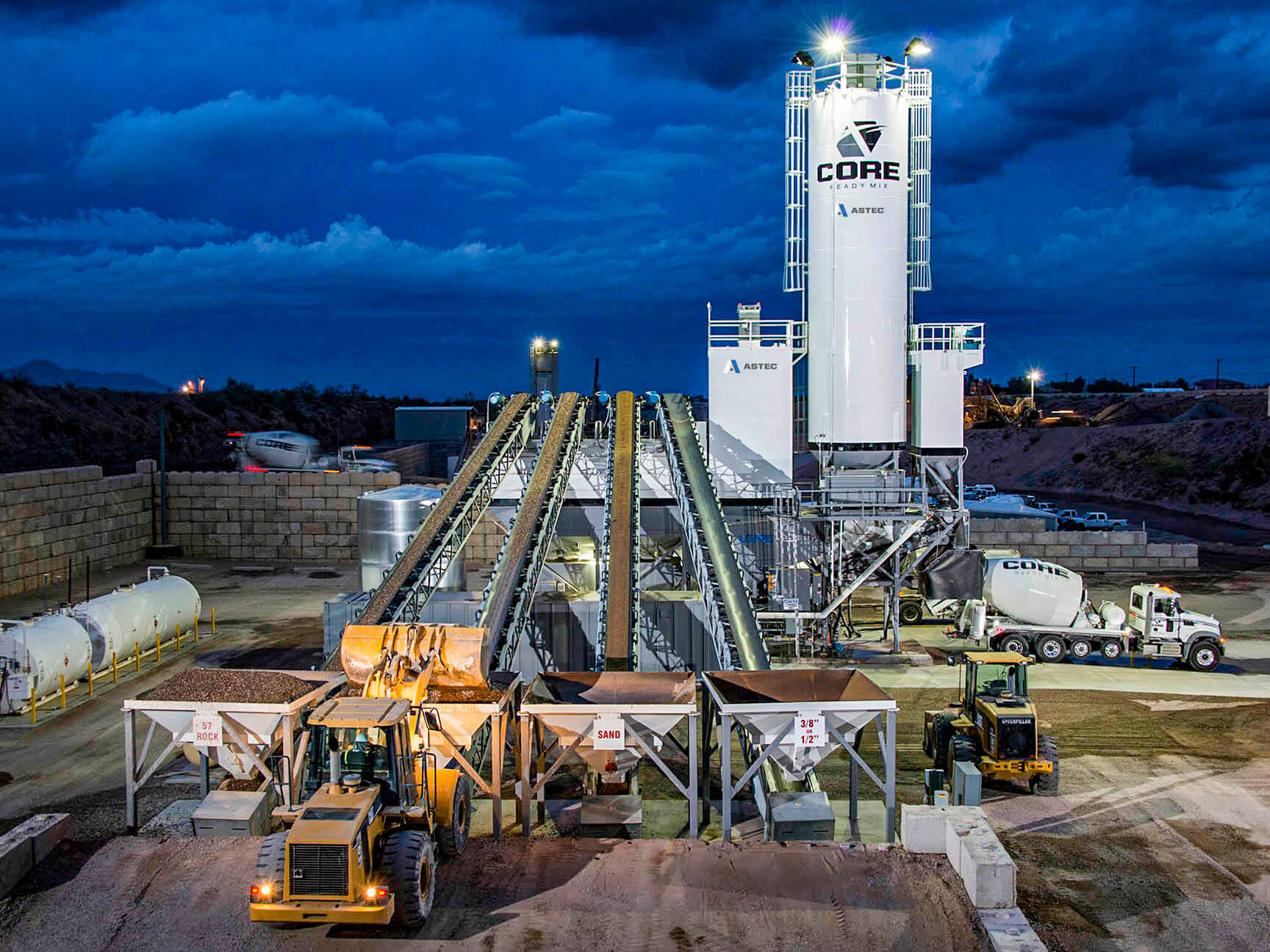

Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm, 10 horsepower drive. 762 mm, 10 horsepower drive. 360 mm, 15 horsepower. 230 mm, 15 horsepower drive. 5 horsepower, high volume, low pressure blower.77 mm diameter with up to 1,740 liters per minute
    AGGREGATE HEAPED VOLUME
45 to 200 cubic meters
CEMENT I GROSS VOLUME
26 to 83 cubic meters
CEMENT II GROSS VOLUME
45 to 139 cubic meters
Towing length 15,545 mm
Towing height 4,345 mm
Towing width 3,200 mm
Empty weight, total 19,958 kg
Length 18,593 mm
Height 4,345 mm
Width 3,200 mm

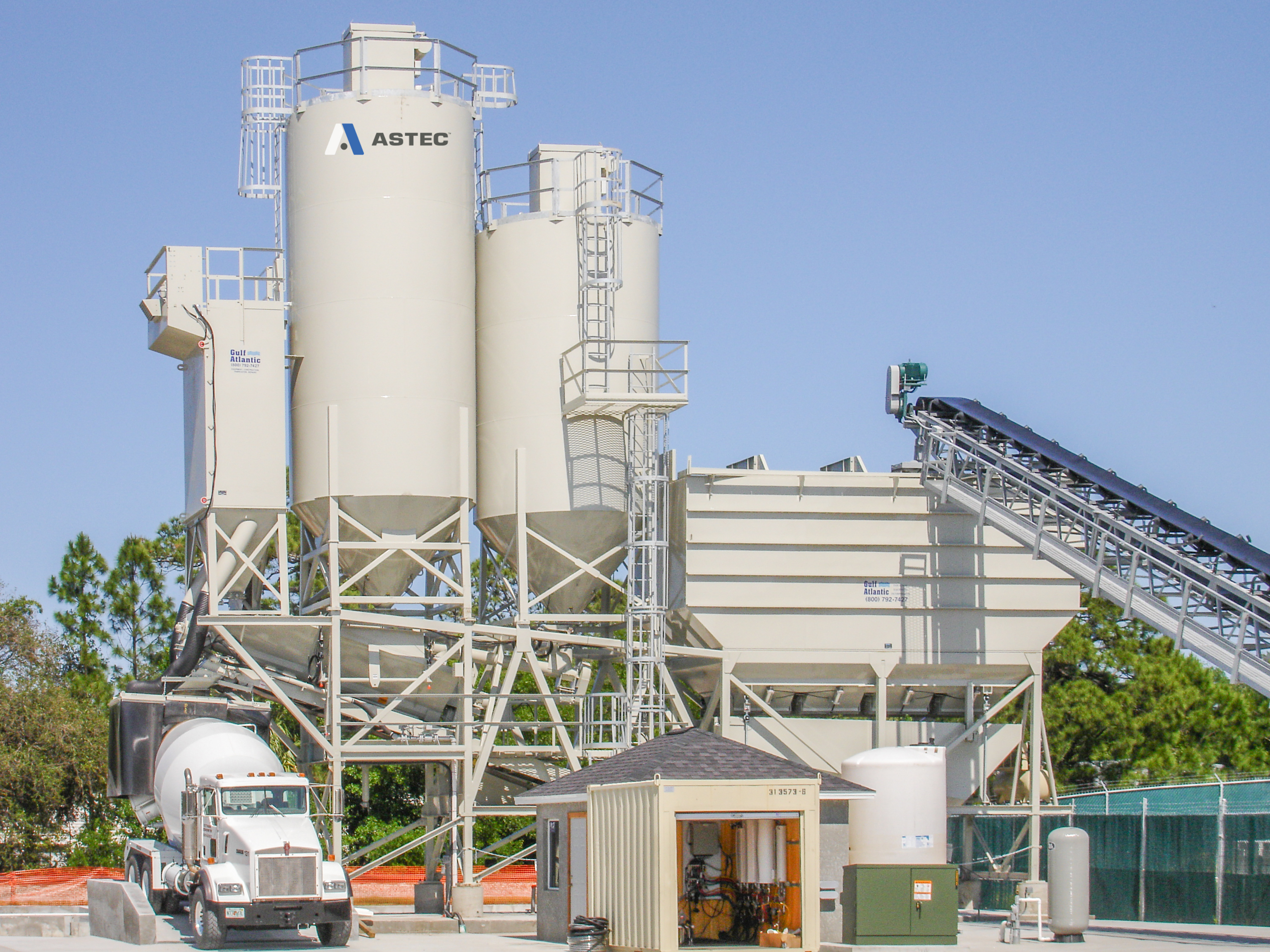

12 RS
Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐  1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm, 10 horsepower drive. 762 mm, 10 horsepower drive. 360 mm, 15 horsepower 230 mm, 15 horsepower drive. 5 horsepower, high volume, low pressure blower.77 mm diameter with up to 1,740 liters per minute
AGGREGATE HEAPED VOLUME
45 to 200 cubic meters
CEMENT I GROSS VOLUME
45 to 139 cubic meters
CEMENT II GROSS VOLUME
45 to 139 cubic meters
Towing length 15,545 mm
Towing height 4,345 mm
Towing width 3,200 mm
Empty weight, total 19,958 kg
Length 18,593 mm
Height 4,345 mm
Width 3,200 mm
250Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm, 15 horsepower drive.762 mm, 10 horsepower drive.360 mm, 15 horsepower.Two 230 mm diameter, 15 horsepower drive.5 horsepower, high volume, low pressure blower.77 mm diameter with up to 1,740 liters per minuteAGGREGATE HEAPED VOLUME
33 to 63 cubic meters
CEMENT I GROSS VOLUME
37 cubic meters
CEMENT I GROSS VOLUME
45 to 83 cubic meters
Towing length 15,977 mm
Towing height 4,369 mm
Towing width 3,073 mm
Empty weight, total 24,948 kg
Length 18,593 mm
Height 4,369 mm
Width 3,073 mm

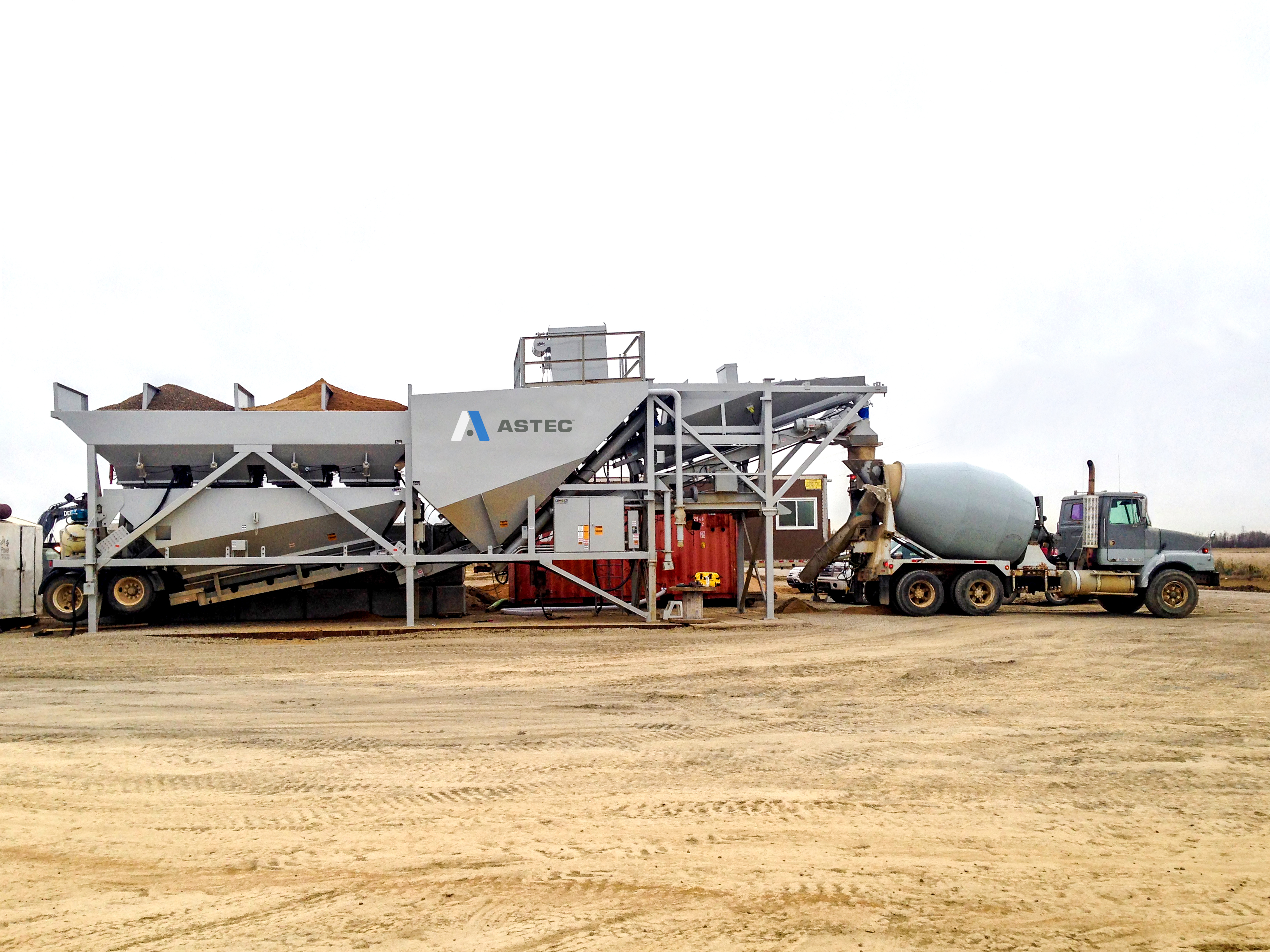

327Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm wide, 15 horsepower drive762 mm wide, 10 horsepower drive360 mm diameter, 15 horsepowerTwo 230 mm diameter, 15 horsepower drive5 horsepower, high volume, low pressure blower77 mm diameter with up to 1,740 liters per minuteAGGREGATE HEAPED VOLUME
33 to 61 cubic meters
CEMENT I GROSS VOLUME
37 cubic meters
CEMENT II GROSS VOLUME
45 to 83 cubic meters
Towing length 15,977 mm
Towing height 4,369 mm
Towing width 3,658 mm
Empty weight, total 24,948 kg
Length 18,593 mm
Height 4,369 mm
Width 3,658 mm
327CM
Theoretical Cycle Time ‐ 2.5 to 3 minutes
Aggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
914 mm wide, 20 horsepower drive
914 mm wide, 30 horsepower drive
460 mm diameter, 25 horsepower
Two 300 mm diameter, 20 horsepower drive
5 horsepower, high volume, low pressure blower
77 mm diameter with up to 1,740 liters per minute
AGGREGATE HEAPED VOLUME
33 to 63 cubic meters
CEMENT I GROSS VOLUME
37 cubic meters
CEMENT II GROSS VOLUME
45 to 83 cubic meters

327DTheoretical Cycle Time ‐ 2.5 to 3 minutes

13.87 cubic meters
1 to 4 weighing bins available Scales ‐ Direct Load Cells

 914 mm, 15 horsepower360 mm diameter, 15 horsepowerTwo 230 mm diameter, 15 horsepower drive5 horsepower, high volume, low pressure blower.77 mm diameter with up to
1,740 liters per minute
CEMENT I GROSS VOLUME
37 cubic meters
CEMENT II GROSS VOLUME
40 to 83 cubic meters
Towing length 21,232 mm
Towing height 4,369 mm
Towing width 3,658 mm
Empty weight, total 24,948 kg
Length 24,127 mm
Height 4,369 mm
Width 3,658 mm
Shipping Volume 385 cubic meters

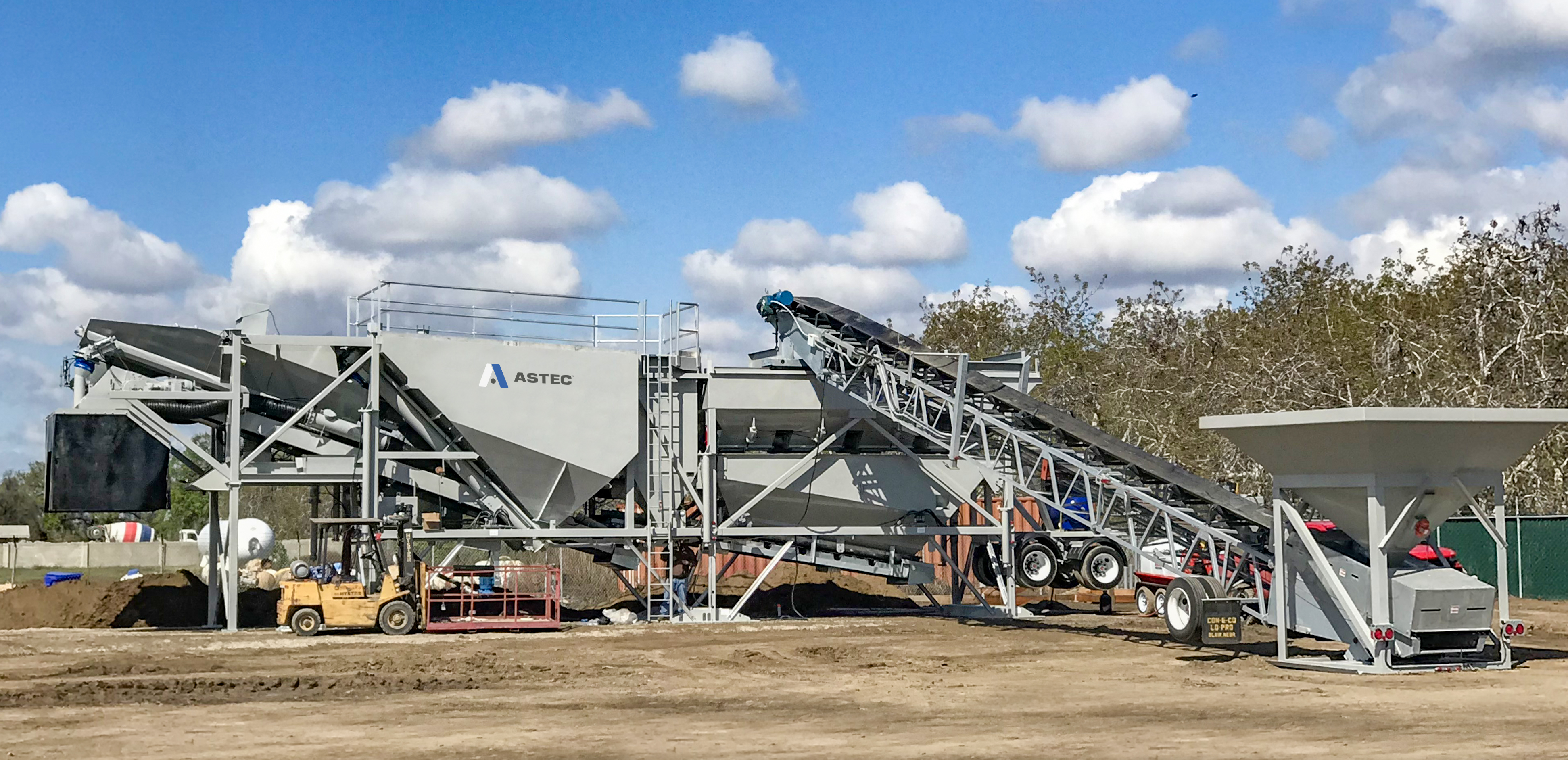

327STheoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm wide, 15 horsepower drive.762 mm wide, 10 horsepower drive.360 mm diameter, 15 horsepower. Two 230 mm diameter, 15 horsepower drive5 horsepower, high volume, low pressure blower.77 mm diameter with up to 1,740 liters per minuteAGGREGATE HEAPED VOLUME
33 to 63 cubic meters
CEMENT I GROSS VOLUME
37 cubic meters
CEMENT II GROSS VOLUME
45 to 83 cubic meters
Towing length 15,977 mm
Towing height 4,369 mm
Towing width 3,658 mm
Empty weight, total 24,948 kg
Length 20,193 mm
Height 4,369 mm
Width 3,658 mm
427Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
762 mm wide, 10 horsepower drive762 mm wide, 10 horsepower drive360 mm diameter, 15 horsepowerTwo 230 mm diameter, 15 horsepower drive.5 and 7 horsepower, high volume, low pressure blowers77 mm diameter with up to 1,740 liters per minuteAGGREGATE HEAPED VOLUME
38 to 68 cubic meters
CEMENT I GROSS VOLUME
47.5 cubic meters
CEMENT II GROSS VOLUME
45 to 85 cubic meters
Towing length 18,000 mm
Towing height 4,369 mm
Towing width 3,450 mm
Empty weight, total 22,395 kg
Length 21,336 mm
Height 4,369 mm
Width 3,450 mm
427CMTheoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 9.2 cubic meters
Cement ‐ 1 to 9.2 cubic meters
Scales ‐ Direct Load Cells
914 mm wide, 20 horsepower drive.914 mm wide, 40 horsepower drive460 mm diameter , 25 horsepowerTwo 300 mm diameter, 20 horsepower drive5 and 7 horsepower, high volume, low pressure blower77 mm diameter with up to 1,740 liters per minuteAGGREGATE HEAPED VOLUME
38 to 68 cubic meters
CEMENT I GROSS VOLUME
47.5 cubic meters
CEMENT II GROSS VOLUME
45 to 85 cubic meters




ModelPRODUCTION CAPACITY
BATCHER CAPACITY
AGGREGATE BATCHER CONVEYOR
AGGREGATE DISCHARGE CONVEYOR
CEMENT BATCHER
RECIRCULATING SCREW
CEMENT
FEEDER SCREWS
CEMENT AERATIONWATER METERSTORAGE BIN
CAPACITIES
DIMENSIONSSHIPPING
DIMENSIONS
5Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 5 cubic yards (1 to 3.8 cubic meters)
Cement ‐ 1 to 5 cubic yards (1 to 3.8 cubic meters)
Scales ‐ Direct Load Cells
24” wide (610 mm), 10 horsepower drive.
24” wide (610 mm), 10 horsepower drive.
12” diameter (305 mm), 10 horsepowerTwo each ‐ 6” diameter (152 mm), 10 horsepower drive.5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minute    AGGREGATE HEAPED VOLUME
26 to 86 cubic yards (19 to 65 cubic meters)
CEMENT I GROSS VOLUME
716 to 2,360 cubic feet (20 to 66 cubic meters)
CEMENT II GROSS VOLUME
1,600 cubic feet (45 cubic meters)
Towing length 45’‐3” (13,790 mm)
Towing height 14’‐2” (4,318 mm)
Towing width 8’‐0” (2,440 mm)
Empty weight, total 37,600 lbs. (17,091 kg)
Length 54’‐0” (16,460 mm)
Height 14’‐2” (4,318 mm)
Width 8’‐0” (23439 mm)
12
Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 10 horsepower drive. 30” wide (762 mm), 10 horsepower drive. 14” diameter (360 mm), 15 horsepower. 9” diameter (230 mm), 15 horsepower drive. 5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minute
    AGGREGATE HEAPED VOLUME
59 to 270 cubic yards
(45 to 200 cubic meters)
CEMENT I GROSS VOLUME
940 to 2,940 cubic feet
26 to 83 cubic meters
CEMENT II GROSS VOLUME
1,600 to 4,920 cubic feet
45 to 139 cubic meters
Towing length 51’‐0” (15,545 mm)
Towing height 14’‐3” (4,345 mm)
Towing width 10’‐6” (3,200 mm)
Empty weight, total 44,000 lbs. (19,958 kg)
Length 61’‐0” (18,593 mm)
Height 14’‐3” (4,345 mm)
Width 10’‐6” (3,200 mm)
12 RS
Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 10 horsepower drive. 30” wide (762 mm), 10 horsepower drive. 14” diameter (360 mm), 15 horsepower 9” diameter (230 mm), 15 horsepower drive. 5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minute
AGGREGATE HEAPED VOLUME
59 to 270 cubic yards
45 to 200 cubic meters
CEMENT I GROSS VOLUME
1,600 to 4,920 cubic feet
45 to 139 cubic meters
CEMENT II GROSS VOLUME
1,600 to 4,920 cubic feet
45 to 139 cubic meters
    Towing length 51’‐0” (15,545 mm)
Towing height 14’‐3” (4,345 mm)
Towing width 10’‐6” (3,200 mm)
Empty weight, total 44,000 lbs. (19,958 kg)
Length 61’‐0” (18,593 mm)
Height 4’‐3” (4,345 mm)
Width 10’‐6” (3,200 mm)
250Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 15 horsepower drive.30” wide (762 mm), 10 horsepower drive.14” diameter (360 mm), 15 horsepower.Two 9” diameter (230 mm), 15 horsepower drive.5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minuteAGGREGATE HEAPED VOLUME
43 to 83 cubic yards (33 to 63 cubic meters)
CEMENT I GROSS VOLUME
1,308 cubic feet (37 cubic meters)
CEMENT I GROSS VOLUME
1,600 to 2,940 cubic feet (45 to 83 cubic meters)
Towing length 52’‐5” (15,977 mm)
Towing height 14’‐4” (4,369 mm)
Towing width 10’‐1” (3,073 mm)
Empty weight, total 60,000 lbs. (24,948 kg)
Length 61’‐0” (18,593 mm)
Height 14’‐4” (4,369 mm)
Width 10’‐1” (3,073 mm)
327Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 15 horsepower drive30” wide (762 mm), 10 horsepower drive14” diameter (360 mm), 15 horsepowerTwo 9” diameter (230 mm), 15 horsepower drive5 horsepower, high volume, low pressure blower3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minuteAGGREGATE HEAPED VOLUME
43 to 80 cubic yards (33 to 61 cubic meters)
CEMENT I GROSS VOLUME
1,308 cubic feet (37 cubic meters)
CEMENT II GROSS VOLUME
1,600 to 2,940 cubic feet (45 to 83 cubic meters)
Towing length 52’‐5” (15,977 mm)
Towing height 14’‐4” (4,369 mm)
Towing width 12’‐0” (3,658 mm)
Empty weight, total 60,000 lbs. (24,948 kg)
Length 61’‐0” (18,593 mm)
Height 14’‐4” (4,369 mm)
Width 12’‐0” (3,658 mm)
327CM
Theoretical Cycle Time ‐ 2.5 to 3 minutes
Aggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
36” wide (914 mm), 20 horsepower drive
36” wide (914 mm), 30 horsepower drive
18” diameter (460 mm), 25 horsepower
Two 12” diameter (300 mm), 20 horsepower drive
5 horsepower, high volume, low pressure blower
3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minute
AGGREGATE HEAPED VOLUME
43 to 83 cubic yards
33 to 63 cubic meters
CEMENT I GROSS VOLUME
1,308 cubic feet
37 cubic meters
CEMENT II GROSS VOLUME
1,600 to 2,940 cubic feet

327DTheoretical Cycle Time ‐ 2.5 to 3 minutes

490 cubic feet (13.87 cubic meters)

1 to 4 weighing bins available Scales ‐ Direct Load Cells

 36” (914 mm), 15 horsepower14” diameter (360 mm), 15 horsepowerTwo 9” diameter (230 mm), 15 horsepower drive5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to
500 gallons (1,740 liters) per minute
CEMENT I GROSS VOLUME
1,308 cubic feet (37 cubic meters)
CEMENT II GROSS VOLUME
1,408 to 2,940 cubic feet
40 to 83 cubic meters
Towing length 69’‐9” (21,232 mm)
Towing height 14’‐4” (4,369 mm)
Towing width 12’‐0” (3,658 mm)
Empty weight, total 65,000 lbs. (24,948 kg)
Length 79’‐2” (24,127 mm)
Height 14’‐4” (4,369 mm)
Width 12’‐0” (3,658 mm)
Shipping Volume 13,162 cubic feet (385 cubic meters)
327STheoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 15 horsepower drive.30” wide (762 mm), 10 horsepower drive.14” diameter (360 mm), 15 horsepower. Two 9” diameter (230 mm), 15 horsepower drive5 horsepower, high volume, low pressure blower.3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minute.AGGREGATE HEAPED VOLUME
43 to 83 cubic yards (33 to 63 cubic meters)
CEMENT I GROSS VOLUME
1,308 cubic feet (37 cubic meters)
CEMENT II GROSS VOLUME
1,600 to 2,940 cubic feet
45 to 83 cubic meters
Towing length 57’‐3” (15,977 mm)
Towing height 14’‐4” (4,369 mm)
Towing width 2’‐0” (3,658 mm)
Empty weight, total 60,000 lbs. (24,948 kg)
Length 66’‐3” (20,193 mm)
Height 14’‐4” (4,369 mm)
Width 2’‐0” (3,658 mm)

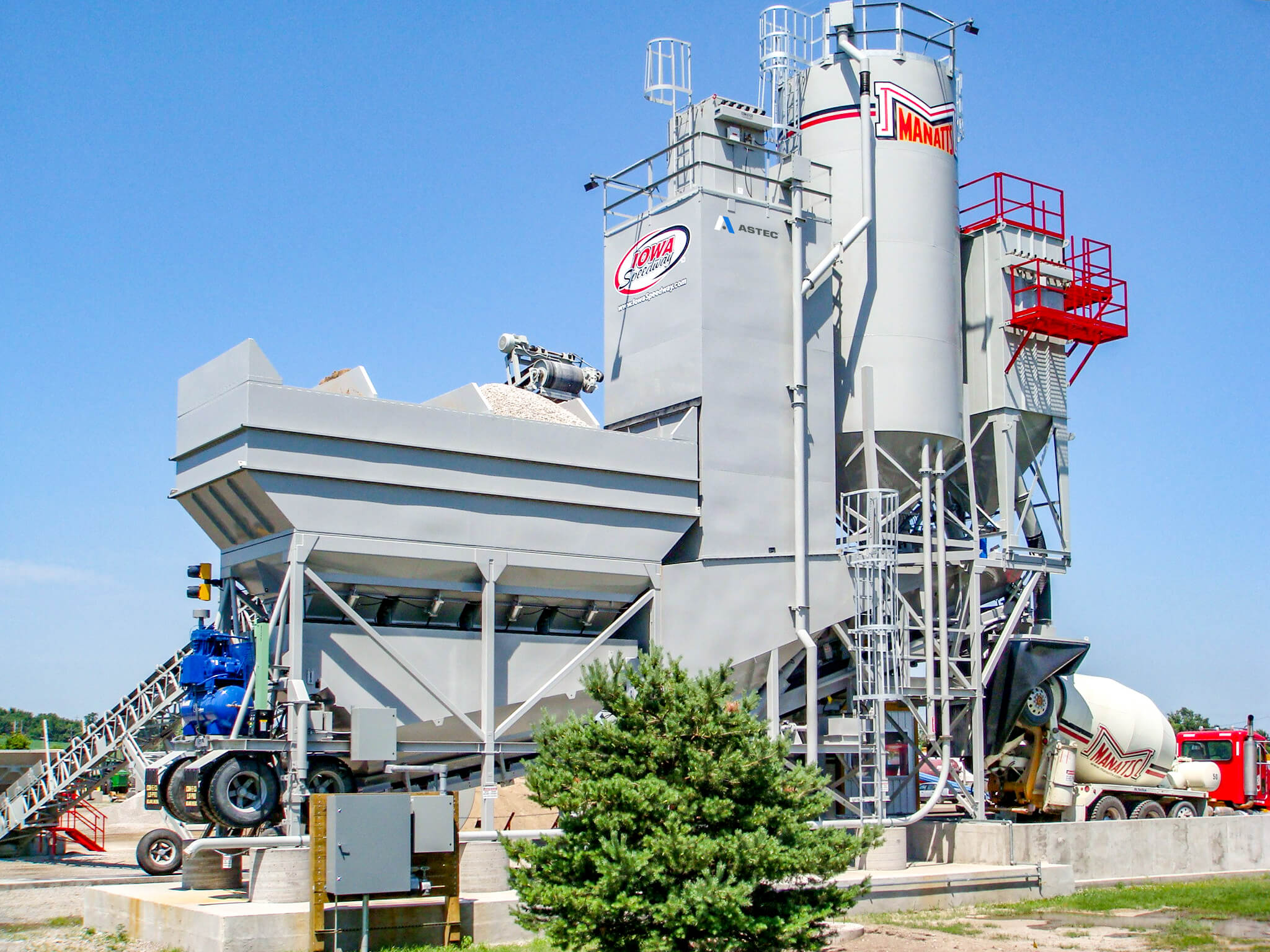

427Theoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
30” wide (762 mm), 10 horsepower drive30” wide (762 mm), 10 horsepower drive14” diameter (360 mm), 15 horsepowerTwo 9” diameter (230 mm), 15 horsepower drive.5 and 7 horsepower, high volume, low pressure blowers3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minuteAGGREGATE HEAPED VOLUME
50 to 90 cubic yards (38 to 68 cubic meters)
CEMENT I GROSS VOLUME
1,708 cubic feet (47.5 cubic meters)
CEMENT II GROSS VOLUME
1,600 to 3,060 cubic feet (45 to 85 cubic meters)
Towing length 60’‐0” (18,000 mm)
Towing height 14’‐4” (4,369 mm)
Towing width 11’‐6” (3,450 mm)
Empty weight, total 60,000 lbs. (22,395 kg)
Length 70’‐0” (21,336 mm)
Height 14’‐4” (4,369 mm)
Width 1’‐6” (3,450 mm)

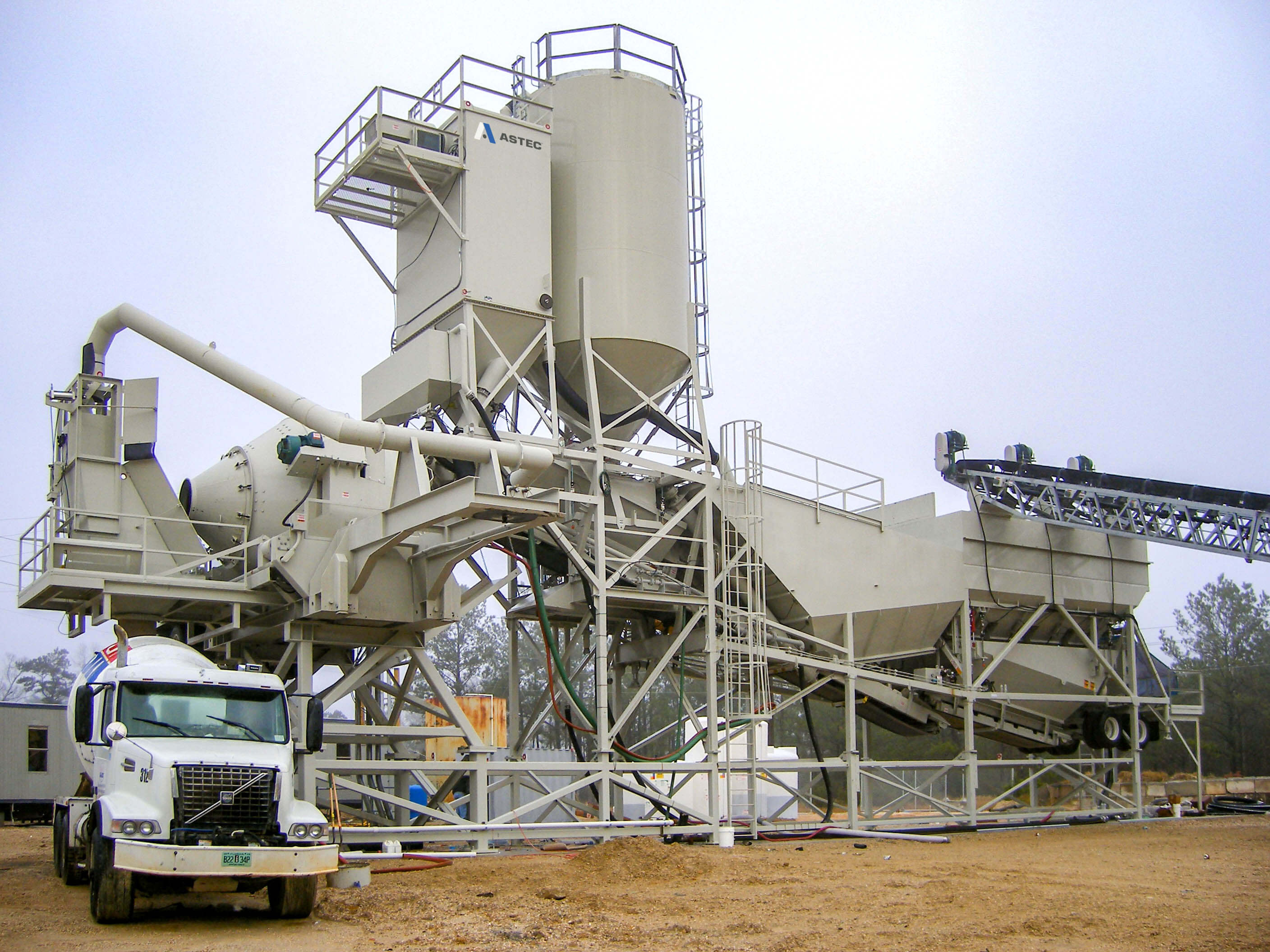

427CMTheoretical Cycle Time ‐ 2.5 to 3 minutesAggregate ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Cement ‐ 1 to 12 cubic yards (1 to 9.2 cubic meters)
Scales ‐ Direct Load Cells
36” wide (914 mm), 20 horsepower drive.36” wide (914 mm), 40 horsepower drive18” diameter (460 mm), 25 horsepowerTwo 12” diameter (300 mm), 20 horsepower drive5 and 7 horsepower, high volume, low pressure blower3” diameter (77 mm) with up to 500 gallons (1,740 liters) per minuteAGGREGATE HEAPED VOLUME
50 to 90 cubic yards (38 to 68 cubic meters)
CEMENT I GROSS VOLUME
1,708 cubic feet (47.5 cubic meters)
CEMENT II GROSS VOLUME
1,600 to 2,940 cubic feet (45 to 85 cubic meters)




Media Gallery

Resources

View all Resources

Loading animation

Request More Info

Your information is safe. Check our privacy notice for more details.
