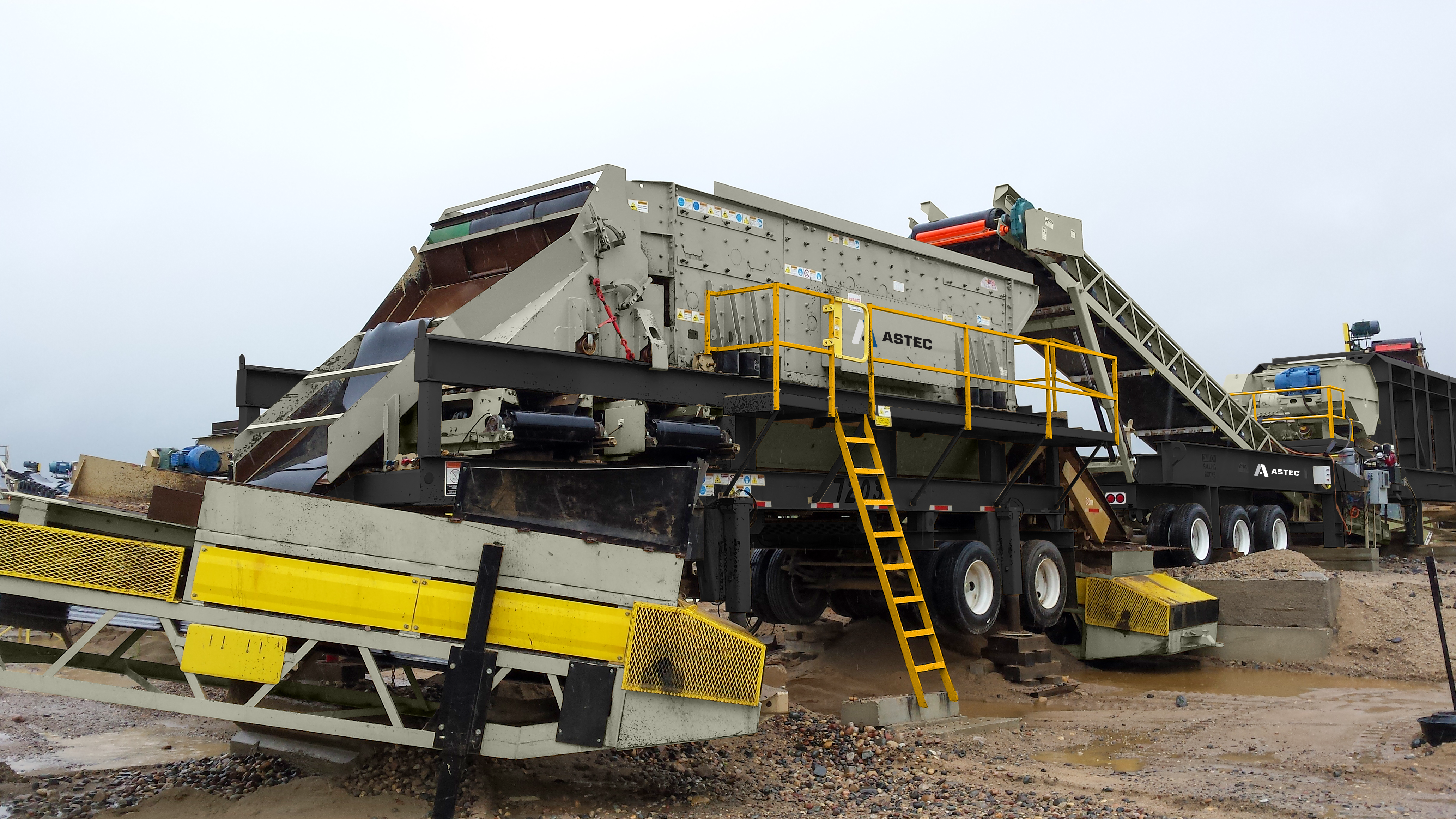

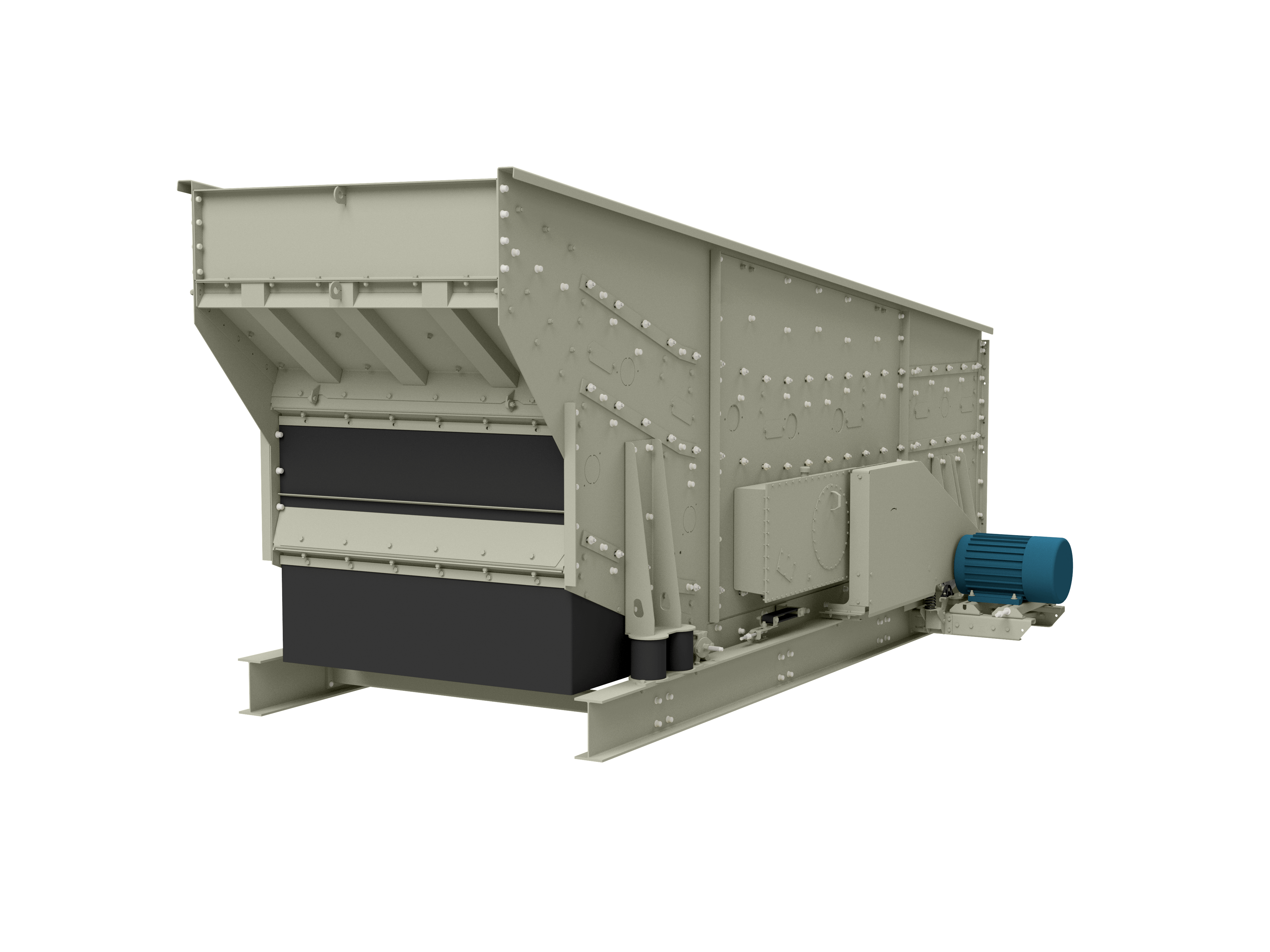

Combo Screens

Overview

This truly unique innovation combines the best characteristics of both incline and horizontal screens and has proven to deliver unsurpassed productivity, efficiency and flexibility in wet or dry applications.

The triple-shaft design employs an oval motion stroke pattern that generates a more aggressive screening action, reducing plugging and blinding while providing extended bearing life.

Applications

  • Sand & Gravel

    Sand and gravel are aggregates that are gathered from naturally occurring deposits. These aggregates, when gathered, may contain clays, silts and other deleterious material that needs to be processed out for commercial-grade products. Reduction and sizing can be accomplished with a variety of crushers and screens. Once the material is accurately processed, it can be used for road building, construction materials and a variety of other applications.
      Learn More
    • Aggregates

      There are two main classes of aggregates: natural and manufactured. Deleterious material needs to be removed from both classes of aggregates. Processing these materials typically requires various steps including reduction and sizing and also may include dewatering and sorting. Producers can use a variety of crushing, screening, dewatering and conveying equipment to meet their desired specifications.
        Learn More
      • Concrete Recycling

        Concrete is one of the most recycled materials in the world that can be repurposed several times over. Once the existing concrete is demolished or torn up, it needs to be processed for accurate shaping and sizing using a crusher and screen.
          Learn More
        • Construction

          Construction projects today depend on an available supply of quality concrete mix. With the most comprehensive line of concrete production equipment in the industry, Astec is ready to help meet that demand.
          Learn More
        • Construction Aggregates

          Construction aggregate is typically medium or coarse material that is used in construction applications. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
            Learn More
          • Construction and Demolition (C&D) Recycling

            Construction & Demolition Recycling (C&D) is mixed material associated with construction and demolition. The material could include wood, cardboard, plastic, metal, wire, roofing shingles, concrete and more. By separating and recycling different materials it reduces landfill use and tipping fees, while also producing value-added products.
            Learn More
          • Pioneer® jaw crusher in concrete recycling application

            Crushed Stone

            Crushed stone is a versatile product that can be used in a wide range of applications from construction to road building and even agriculture. Processing this material may include reducing its size with a crusher, sizing the crushed material with a screen and conveying the material into different stockpiles.
              Learn More
            • Roadtec RX-700 cold planer milling asphalt off the road surface into a dump truck

              Recycled Asphalt Pavement

              The asphalt pavement industry has a long history of incorporating reclaimed asphalt pavement (RAP) into new asphalt pavement mix. In fact, Asphalt is America’s most recycled material making the asphalt industry is a leader in the use of recycled materials. Astec has a long history of building world-class tools to allow contractors and producers to collect and utilize this very valuable product.
              Learn More

            Downloads

            Features

            Specifications

            UNITS:
            Model Number of Decks Width (mm) Length (mm) Power Required (kW) Weight (kg) Bearing Size (mm)
            6202-32CS 2 1,830 6,100 30 9,072 160
            6203-32CS 3 1,830 6,100 30 11,567 160
            7202-38CS 2 2,130 6,100 37 12,111 190
            7203-38CS 3 2,130 6,100 37 14,696 190
            8202-38CS 2 2,430 6,100 37 12,927 190 Wide
            8203-38CS 3 2,430 6,100 45 15,785 190 Wide
            Model Number of Decks Width (ft) Length (ft) Power Required (hp) Weight (lb) Bearing Size (mm)
            6202-32CS 2 6 20 40 20,000 160
            6203-32CS 3 6 20 40 25,500 160
            7202-38CS 2 7 20 50 26,700 190
            7203-38CS 3 7 20 50 32,400 190
            8202-38CS 2 8 20 50 28,500 190 Wide
            8203-38CS 3 8 20 60 34,800 190 Wide
